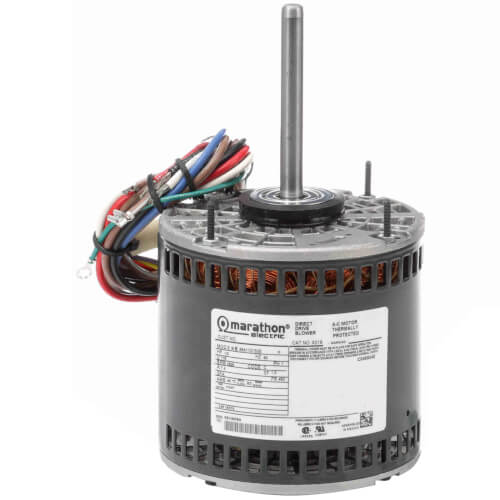

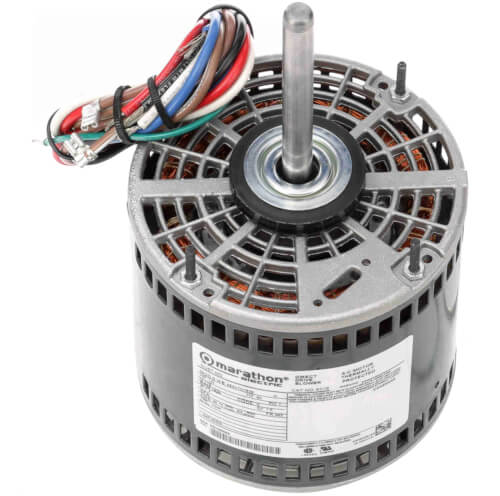

Marathon Motors X016 Direct Drive Fan & Blower Motor 1/2HP 1625RPM 115V

Product Description

Marathon Motors model X016 is a robust direct drive fan and blower motor that delivers reliable performance with a power rating of 1/2 horsepower and a speed of 1625 RPM. Operated on a single-phase 115V setup, this motor is designed for continuous duty in demanding environments.

• Ideal for HVAC applications requiring moderate speeds.
• Features resilient ring mounting and extended studs.
• Equipped with ball bearings and an automatic reset thermal protector.

Product Highlights

With selective counterclockwise (CCW) rotation, the X016 model supports diverse industrial equipment integrations. Its open air over enclosure ensures effective cooling and operational efficiency, contributing to a longer service life.

Product Information

Standard Information

• Motor Orientation: Horizontal
• Insulation Class: B

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Motor Frame: 48Z
• Max Ambient Temperature: 104°F
• Voltage: 115V
• Phase: 1
• Speed: 1625 RPM
• Horsepower: 1/2
• Amperage: 7.4
