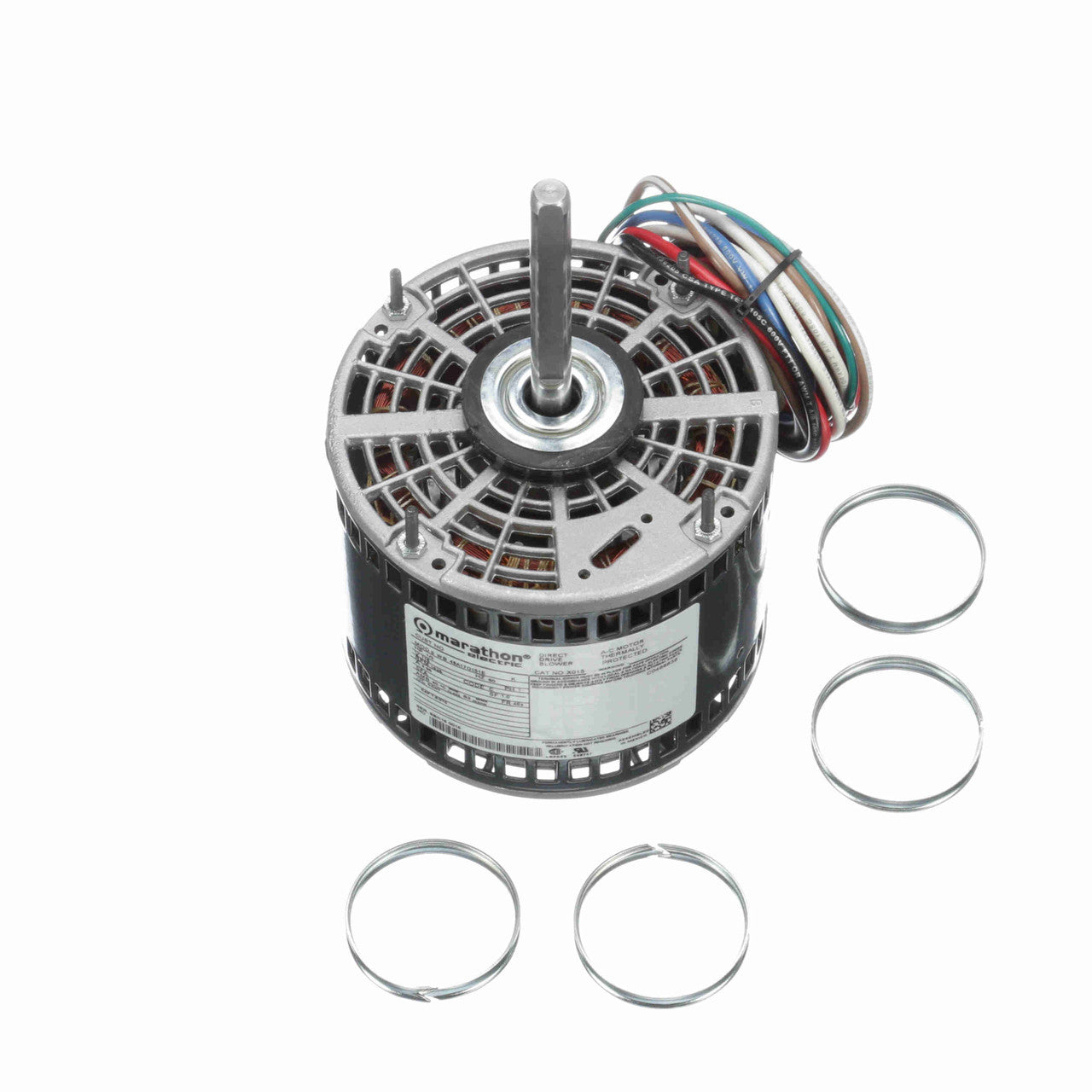

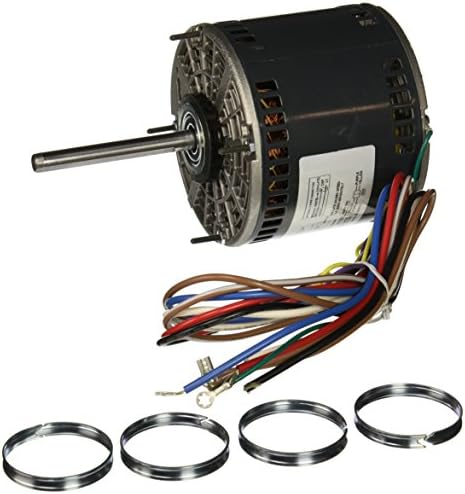

Marathon Motors X015 1/3 HP 1625 RPM 115V OPAO

Product Description

The MARATHON MOTORS X015 is a direct drive fan and blower motor designed to replace PSC and shaded pole motors used in direct drive furnaces, air conditioners, and other blowers. It operates similarly to capacitor-start motors, but without a centrifugal starting switch. This single-phase motor runs at 1/3 hp with a maximum speed of 1625 RPM and operates at 115 VAC.

• Designed to replace PSC and Shaded pole motors, used in direct drive furnace, air conditioners, and other blowers.
• Operates similarly to capacitor-start motors, but there is no centrifugal starting switch
• Second windings are permanently connected to the power source (through a run capacitor), along with the run windings.

Product Highlights

The Marathon Motors X015 is ideal for air handlers, blowers, and fans where variable speeds are desired. UL Recognized and CSA Certified.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X015

Technical Specifications

• Application: Fan & Blower
• Output HP: 1/3
• Output KW: 0.20-0.29
• Output RPM: 1625
• Frame NEMA: 48Z
• Mount NEMA: Direct Drive HVAC
• Enclosure NEMA: OPAO
• Enclosure IEC: IP10
• Voltage: 115
• Frequency (Hz): 60
• Brand: Marathon Electric
• Model Name: x015
• Horsepower: 0.33 Horsepower
• Catalog Number: X015
• Product Category: HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors
• Amps: 4.0
• Speeds: 3
• Phase: 1
• Enclosure Type: Open Air Over
• Rotation: Selective Counterclockwise
• Mounting Type: Resilient Ring - Extended Studs
• Frame Type: 48Z
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 4.06 (in.)
• Shaft Type: Single Special Extension
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 9.75 (in.)
• Electrical Type: Permanent Split Capacitor
• Duty: Continous
• Motor Orientation: Horizontal
• Service Factor: 1
• Type of Overload Protector: Automatic Lock Rotor Only
• Insulation Class: B
• Max Ambient: 40 C
• UL: Recognized
• CE: N
• CSA: Y
• IP Code: 10
• KVA Code: C
• DEM Reference: MA#X015
• Ball Bearings: Ball Bearings
• Cross Reference: 48A17O151
