Marathon Motors X012 Condenser Fan Motor 1/4 HP

Product Description

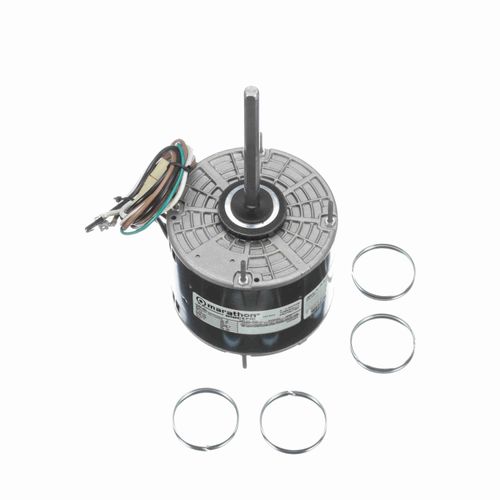

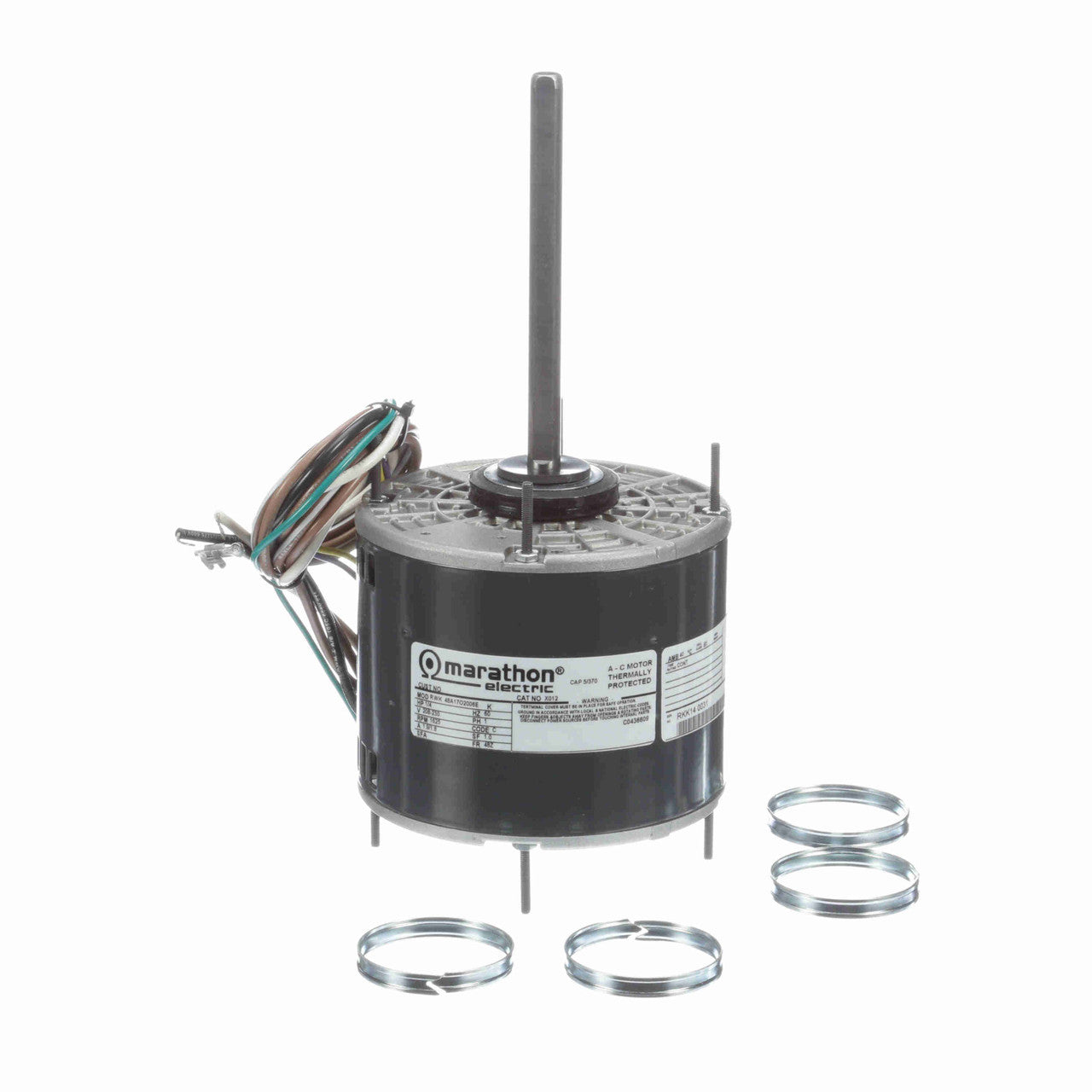

The Marathon Motors X012 condenser fan motor is a 1/4 HP motor with a speed of 1625 RPM. It features a 48Z frame, OAO enclosure, and is designed for single-phase 208-230V power. Constructed with rolled steel, it offers resilient ring/extended studs mounting and automatic overload protection.

• Electrical Type: PSC
• Rotation: REV
• Shaft Type: Single

Product Highlights

Durable condenser fan motor suitable for direct drive applications requiring vertical shaft up mounting and proper cooling airflow.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X012

Technical Specifications

• Brand: Marathon Motors
• SKU: MX012
• Electrical Type: PSC
• Output HP: 1/4 Hp
• Speed (RPM): 1625 rpm
• Frame Size: 48Z
• Enclosure: OAO
• Phase: 1
• Voltage: 208-230 V
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient Ring / Extended Studs
• Amperage: 1.9-1.8
• Shaft Type: Single
• Output KW: 0.19 kW
• Service Factor: 1
• Thermal Protection: Automatic
• Efficiency: 70 %
• Ambient Temperature: 40 °C
• Frequency (Hz): 60
• Power Factor: 98
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: C
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 10
• Number of Speeds: 1
• Application: Condenser Duty
• Mount NEMA: Vert. Shaft Up
• Enclosure NEMA: OPAO
• Enclosure IEC: IP10
