Product Description

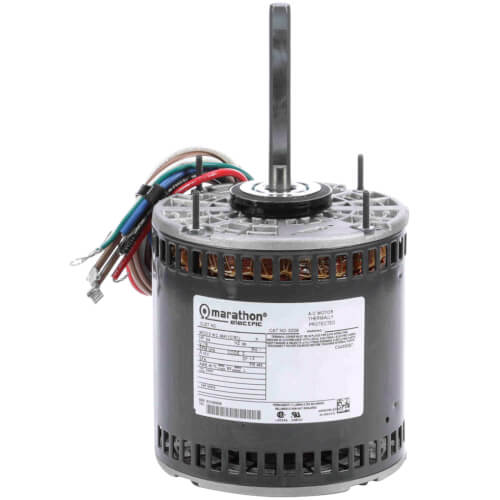

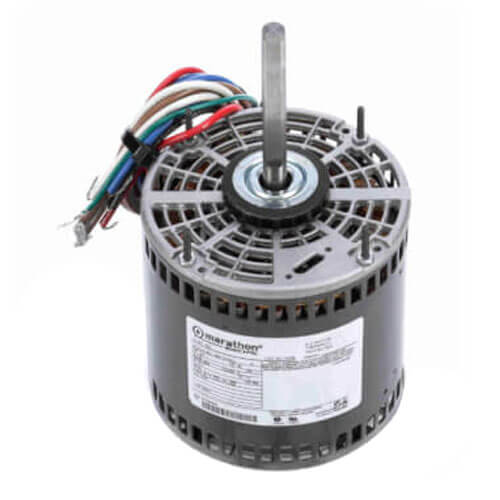

The Marathon Motors X009 fan and blower motor provides three-quarters of a horsepower at 1075 RPM. It operates on a single-phase 115V power supply. This motor replaces PSC and shaded pole motors and is ideal for direct drive furnaces, air conditioners, and blower applications.
- Operates at 115V and 1075 RPM
- Designed for direct drive furnace and air conditioner applications
- Features dynamically balanced rotors to reduce vibration
Product Highlights
The X009 is a reliable choice for HVAC professionals, offering key functionality for heating and cooling systems.
Product Information
Standard Information
-
Brand: Marathon Electric
-
Model Name: X009
Technical Specifications
-
Horse Power: 3/4
-
Amps: 10.2
-
RPM: 1075
-
Enclosure: Open Air Over
-
Frame: 48Z
-
Phase: 1
-
Hertz: 60
-
Shaft Dimension: 1/2 x 4 inches
-
Length Less Shaft: 6.75 inches
-
Type: PSC
-
Voltage: 115 V
-
Capacitor Required: 15MFD / 370V
-
Product Type: Fan Motor, Blower Motor
-

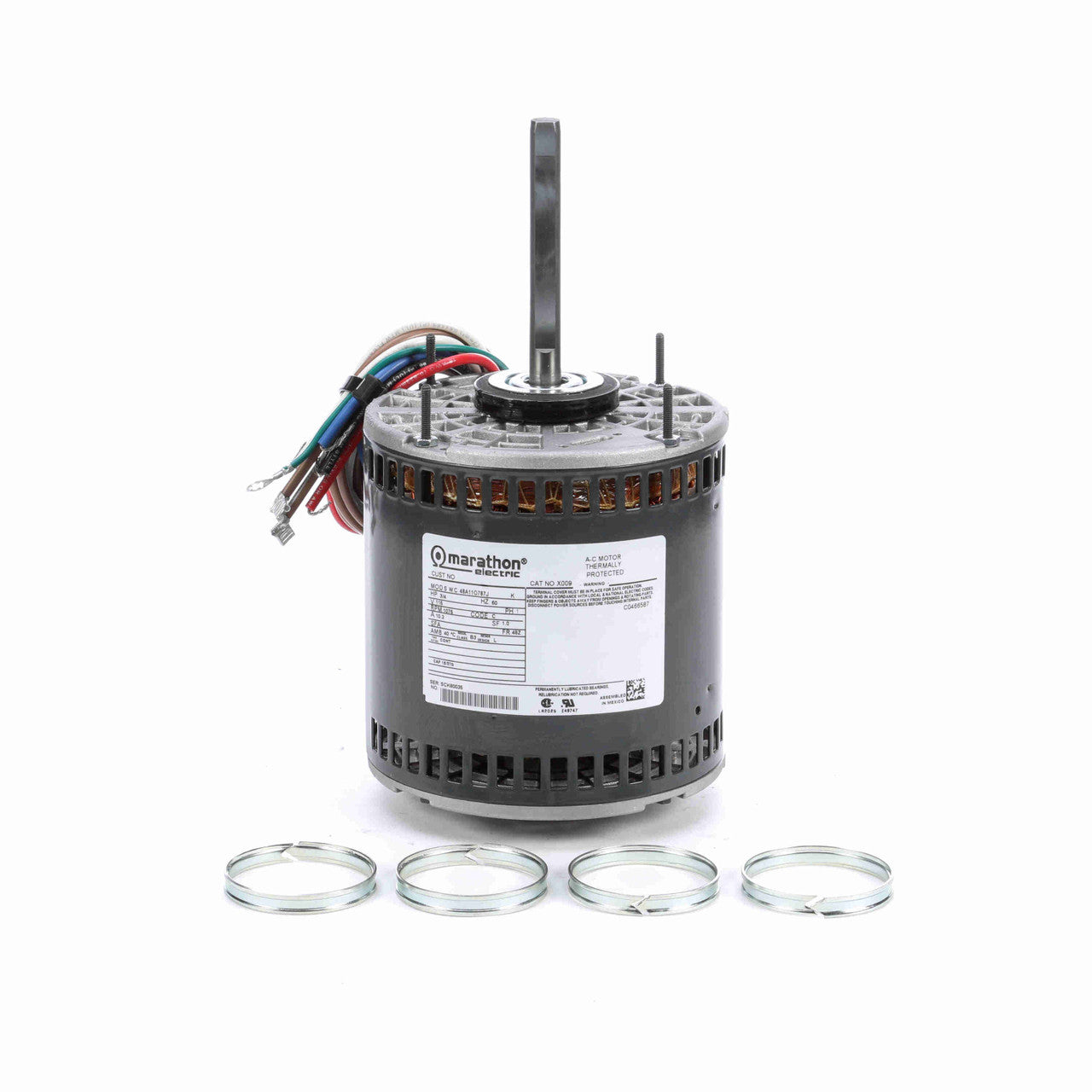

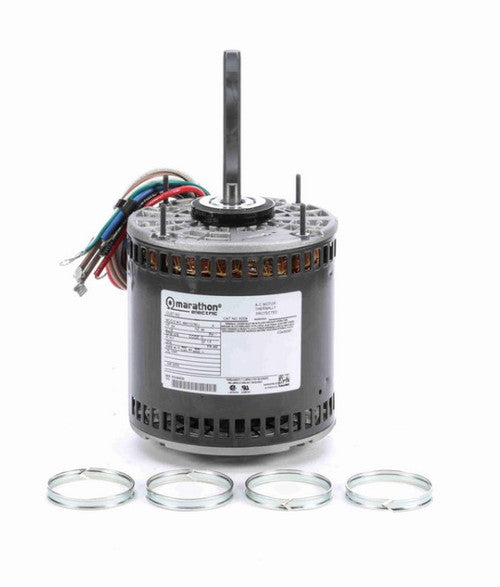

Mount: Resilient Ring - Extended Studs
-
Bearings: Ball
-
Rotation: Selective CCW
-
Motor: Permanent Split Capacitor
-
Poles: 6
-
Duty: Continuous
-
Speeds: 3
-
Max Ambient Temperature: 104°F
-
Insulation Class: B
-
Motor Orientation: Horizontal
-
Overload Protection: Automatic Lock Rotor Only
-
Output HP: 0.75 Hp
-
Output KW: 0.56 kW
-
Service Factor: 1
-
Thermal Protection: Automatic
-
Efficiency: 64 %
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 10.2 A
-
Power Factor: 80
-
Warranty: 1 Year Manufacture Warranty
-
Materials sourced from: United States
-
UPC: 722856038593
-
MPN: X009
