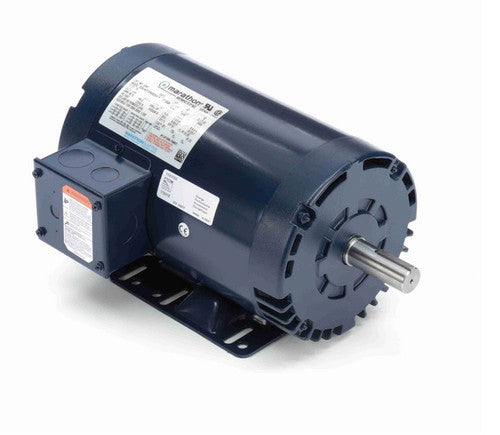

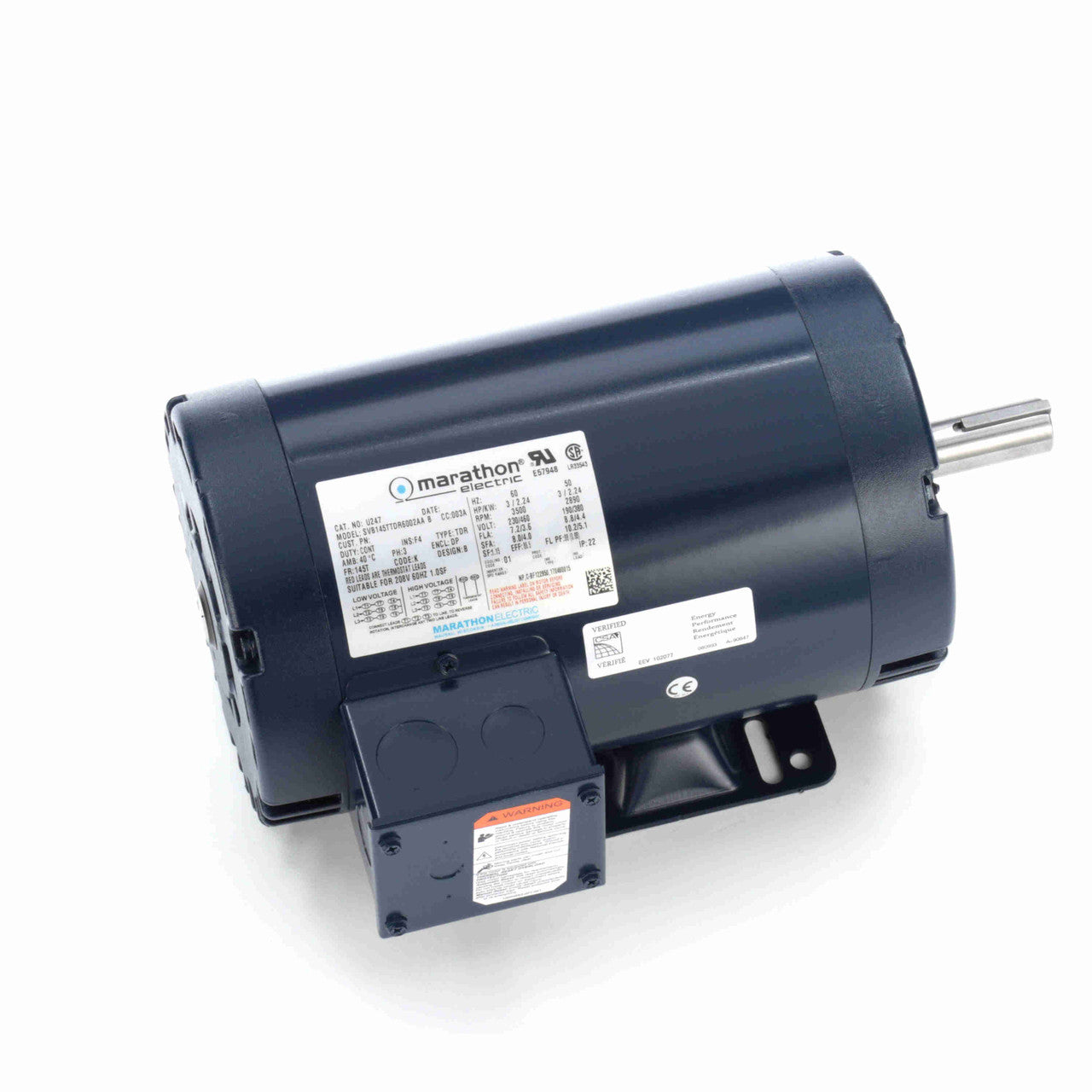

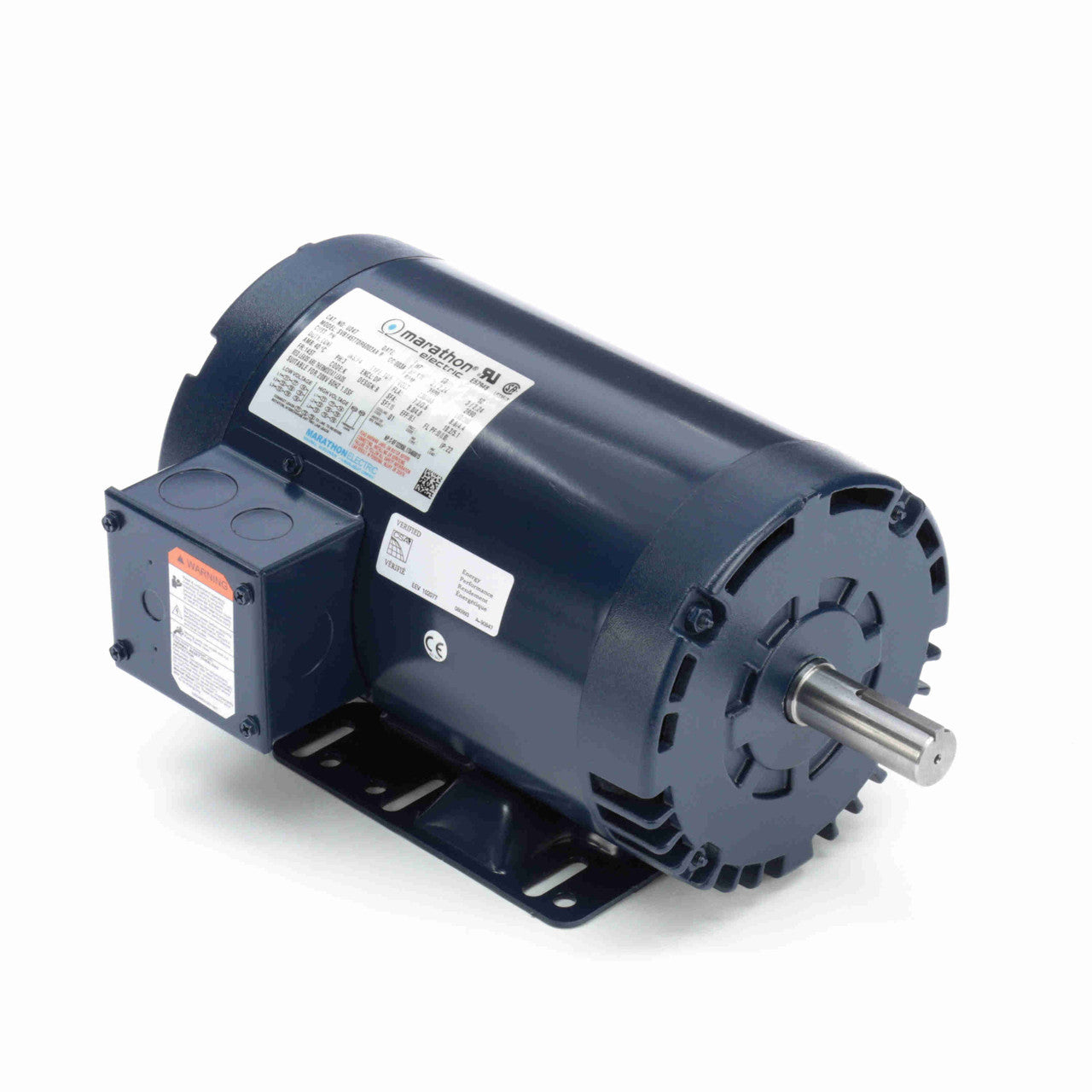

Marathon Motors U247 Premium Efficiency Motor 3HP 3600RPM 145T FR DP 145TTDR6002

Product Description

The Marathon Motors U247 is a premium efficiency motor designed to conserve energy. This 3HP motor operates at 3600RPM with a voltage of 208-230/460V and is a 3-phase motor with open drip proof construction and a 145T frame. It is suitable for general purpose applications.

• Premium Efficiency
• Open Drip Proof construction
• 3600 RPM

Product Highlights

This Marathon Motors premium efficiency motor is durably manufactured for long-lasting performance and dependability.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: U247
• Country of Origin: United States

Technical Specifications

• Brand: Marathon Motors
• Frame: 145T
• Phase: 3
• Duty: Continuous
• IP Code: 22
• Voltage: 208-230/460 V
• Horsepower: 3 HP
• Enclosure: DP
• RPM: 3600
• Service Factor: 1.15
• Insulation Class: F
• Mounting Location: Rigid
• Ambient Temperature: 40 °C
• Full Load Efficiency: 86.5
• CSA Certified: Y
• Manufacturers Part Number: U247
• MPN: 145TTDR6002
• Actual Rated Input Voltage: 230/460 V
• AC Frequency Rating: 60 Hz
• Enclosure Type: Drip Proof
• Base RPM: 3600
• Shaft Diameter: 7/8 in
• Mounting Type: Base-Mounted, Foot-Mounted
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: U247
• AC Phase: Three Phase
• Full Load Amps: 8-7.2/3.6 FLA
• NEMA Design: B
• Bearing Drive End: 6205
• Bearing Opp Drive End: 6203
• Starting Type: PWS YDRUN
• RPM Range: 3001-3600 rpm
• Motor RPM 60 Hertz: 3600 rpm
• Thermal Protection: Thermostats (Normally Closed)
• Nameplate RPM: 3600 rpm
• KVA Code: K
• Orientation: Horizontal
• 50 Hertz SF: 1.15
• 60 Hertz kW: 2.24 kW
• 50 Hertz RPM: 3000 rpm
• 50 Hertz Voltage: 190/380 V
• 50 Hertz Kilowatts: 2.24 kW
• 50 Hertz Full Load Amps: 8.8/4.4 FLA
• UL: Recognized
