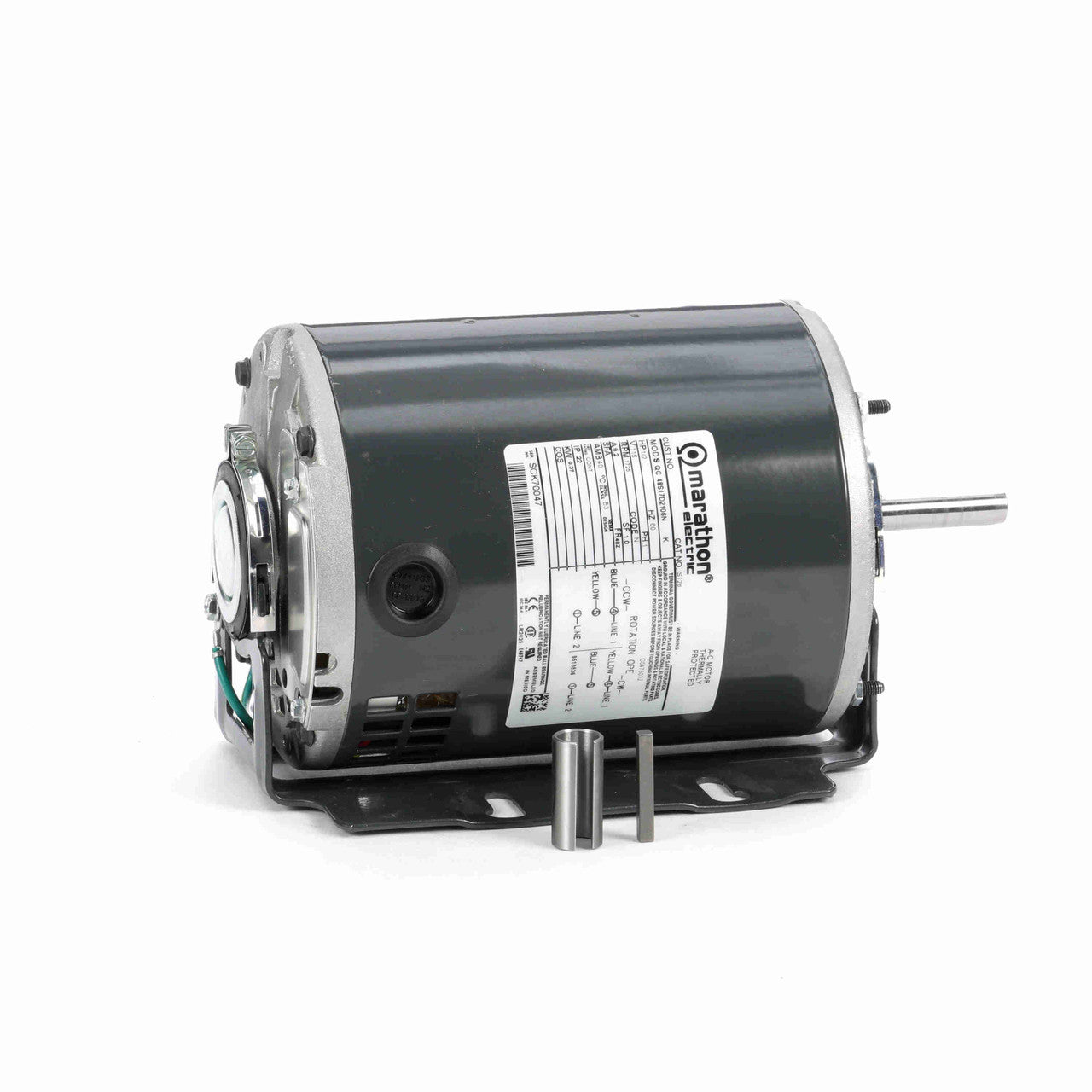

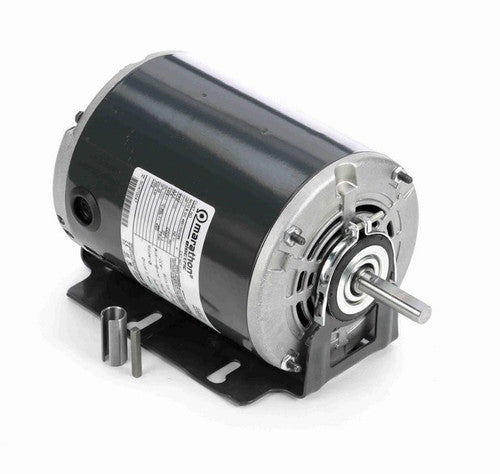

Marathon Motors S128 1/2 Hp 1800 Rpm 48Z FR 115 Vac 1 PH DP Resilient Base Special Purpose Motor

Product Description

The Marathon Motors S128 is a half horsepower electric motor designed for various applications. It operates at one thousand eight hundred revolutions per minute and runs on one hundred fifteen volts. The resilient base supports the motor's structure, making it ideal for continuous duty tasks.

• Drip-proof enclosure enhances durability.
• Automatic thermal protection ensures safety during operation.
• Ball bearings provide smooth performance.

Product Highlights

This motor features an efficient design with automatic overload protection and a split-phase starting method.

Product Information

Standard Information

• Phase: 1
• Output HP: 0.50 Hp

Technical Specifications

• Voltage: 115 V
• Speed: 1800 RPM
• Service Factor: 1
• Frame: 48Z
• Enclosure: Drip Proof
• Thermal Protection: Automatic
• Current: 9.2 A
• Power Factor: 59.8
• Duty: Continuous
• Insulation Class: B
• Drive End Bearing Size: 6203
• Opposite Drive End Bearing Size: 6203
• Mounting: Resilient Base
• Orientation: Horizontal
• Shaft: Flat Shaft 1 7/8 x 1/2 Diameter
• Weight: 17 pounds
• Dimensions: 8.6 x 8.5 x 5.7 inches
