Product Description

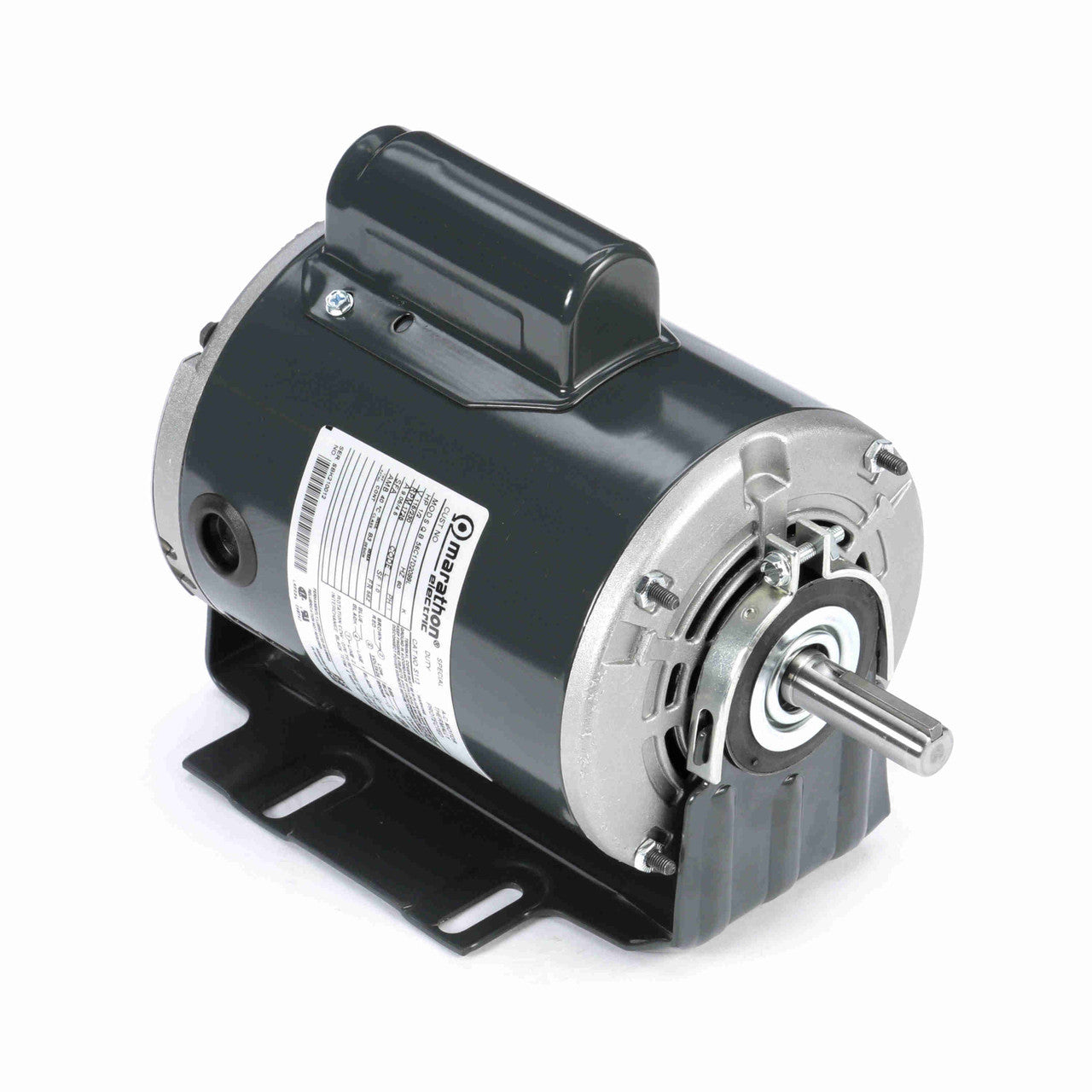

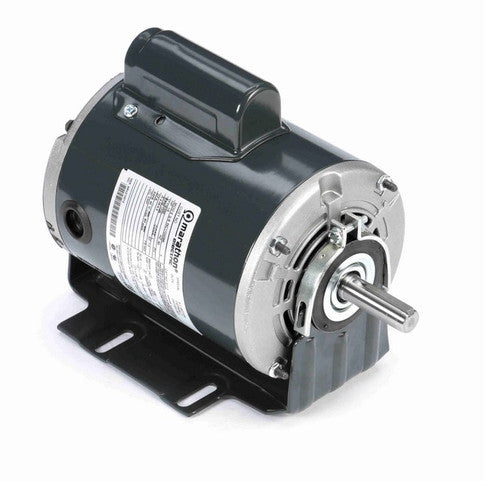

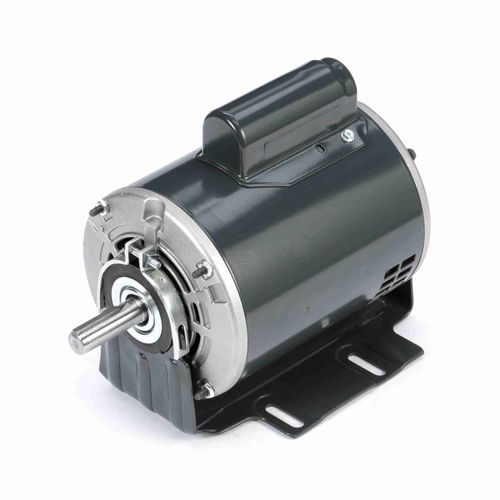

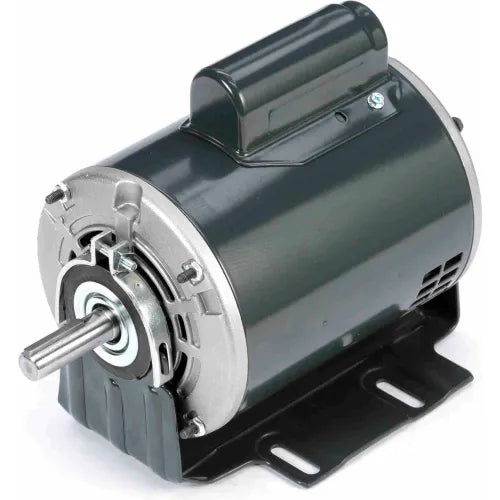

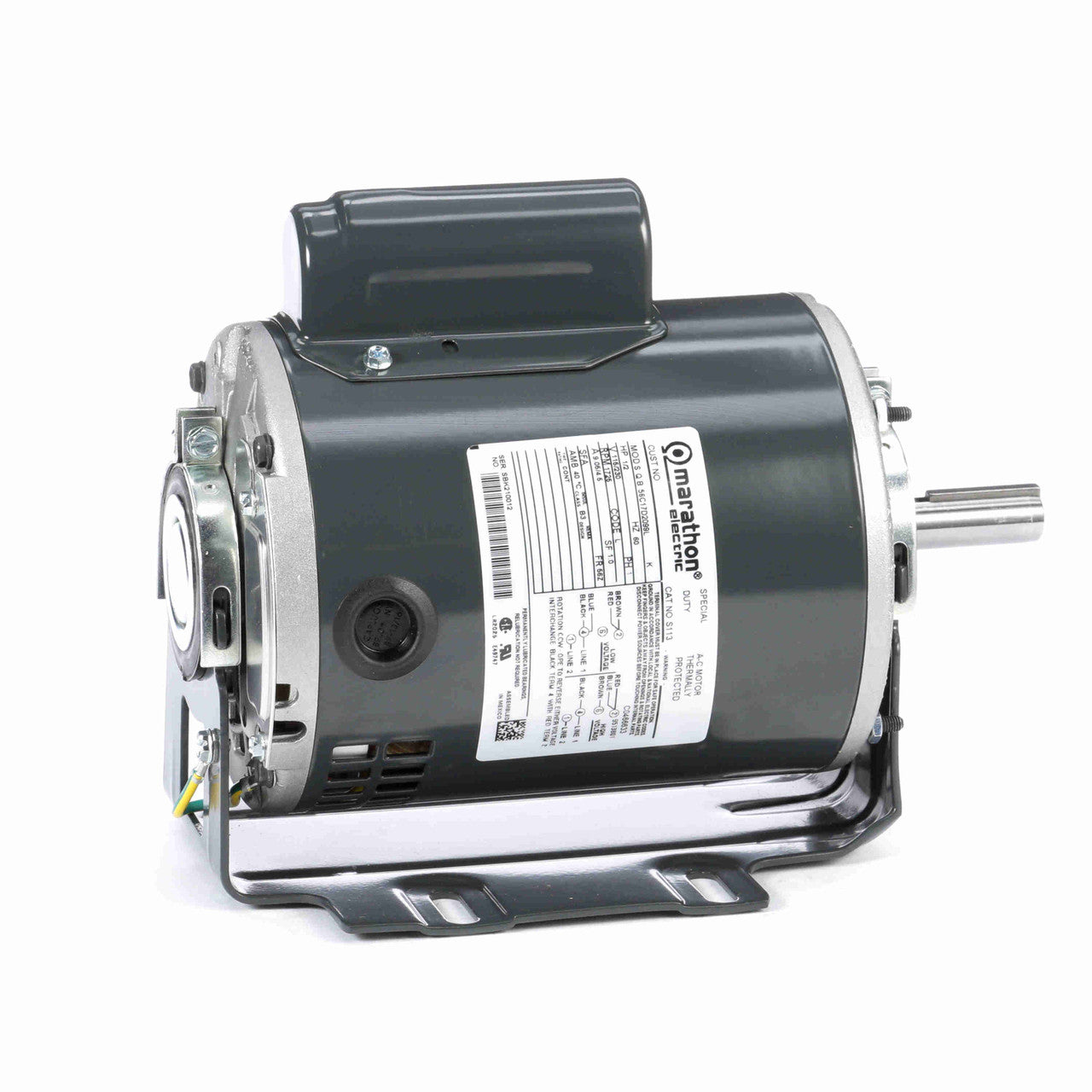

The Marathon Motors S113 is a general purpose motor. It is designed for use with fans, blowers, pumps, and other general purpose applications in environments that are relatively clean and dry. The motor features a resilient base for mounting and automatic overload protection. It has a continuous duty rating and standard operating characteristics.
- Electrical Type: Capacitor Start
- Rotation: Reversible
- Enclosure: Open Drip Proof (ODP)
Product Highlights
This Marathon Motors general purpose motor is suitable for various applications requiring a reliable and efficient power source.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: S113
-
Country of Origin: United States
Technical Specifications
-
Electrical Type: Cap Start
-
HP: 1/2
-
RPM: 1725
-
Frame: 56Z
-
Diameter: 6.5"
-
Enclosure: ODP
-
Phase: Single
-
Voltage: 115/230 V
-
Rotation: REV
-
Overload: Auto
-
Material: Rolled Steel
-
Mounting: Resilient Base
-
Amperage: 9.1/4.5
-
Shaft Type: Single
-
Output KW: 0.37 kW
-
Speed (RPM): 1725 rpm
-
Frame Size: 56Z
-
Enclosure NEMA: DP
-
Enclosure IEC: IP22
-
Frequency (Hz): 60
-
Speeds: 1
-
Frame Material: Rolled Steel
-
Shaft Diameter: 0.625
-
Shaft Extension: 1.97 (in.)
-
DE Bearing Type: Ball
-
ODE Bearing Type: Ball
-
Duty: Continous
-
Motor Orientation: Horizontal
-
Service Factor: 1
-
Type of Overload Protector: Automatic
-
Insulation Class: B
-
Max Ambient: 40°C
-
UL: Recognized
-
CE: N
-
CSA: Y
-
IP Code: 22
-
KVA Code: L
-
Rated Load (HP): 1/2
-
AC Frequency Rating: 60 Hz
-
Base RPM: 1800
-
Shaft: Keyed Shaft 2" x 5/8" Diameter
-
AC Motor Type: Induction/Asynchronous
-
MPN: 056C17D2099
-
Model: S113
-
NEMA Frame Suffix: Z (Non-Standard NEMA Shaft)
-
AC Phase: Single Phase
-
Horsepower: 1/2 HP
-
Hertz: 60 Hz
-
Thermal Protection: Automatic
-
Full Load Amps: 9.1/4.5 FLA
-
Bearing Drive End: Ball/Ball
-
RPM Range: 1725 rpm
-
Brand: Marathon Motors
-
Ambient Temperature: 40 °C
