Marathon Motors S022 Marathon Motors S022

Product Description

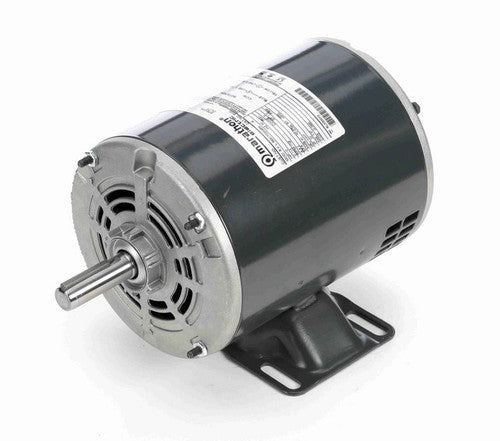

The MARATHON MOTORS S022 is a general purpose motor that can be used for many applications requiring a single phase electric motor. It operates at 1/2 horsepower and 1800 RPM with a 56 frame size. This motor is designed with a rigid base for secure mounting and features drip-proof enclosure.

• Reversible
• Rigid Base Mount
• Ball Bearings
• Class B Insulation

Product Highlights

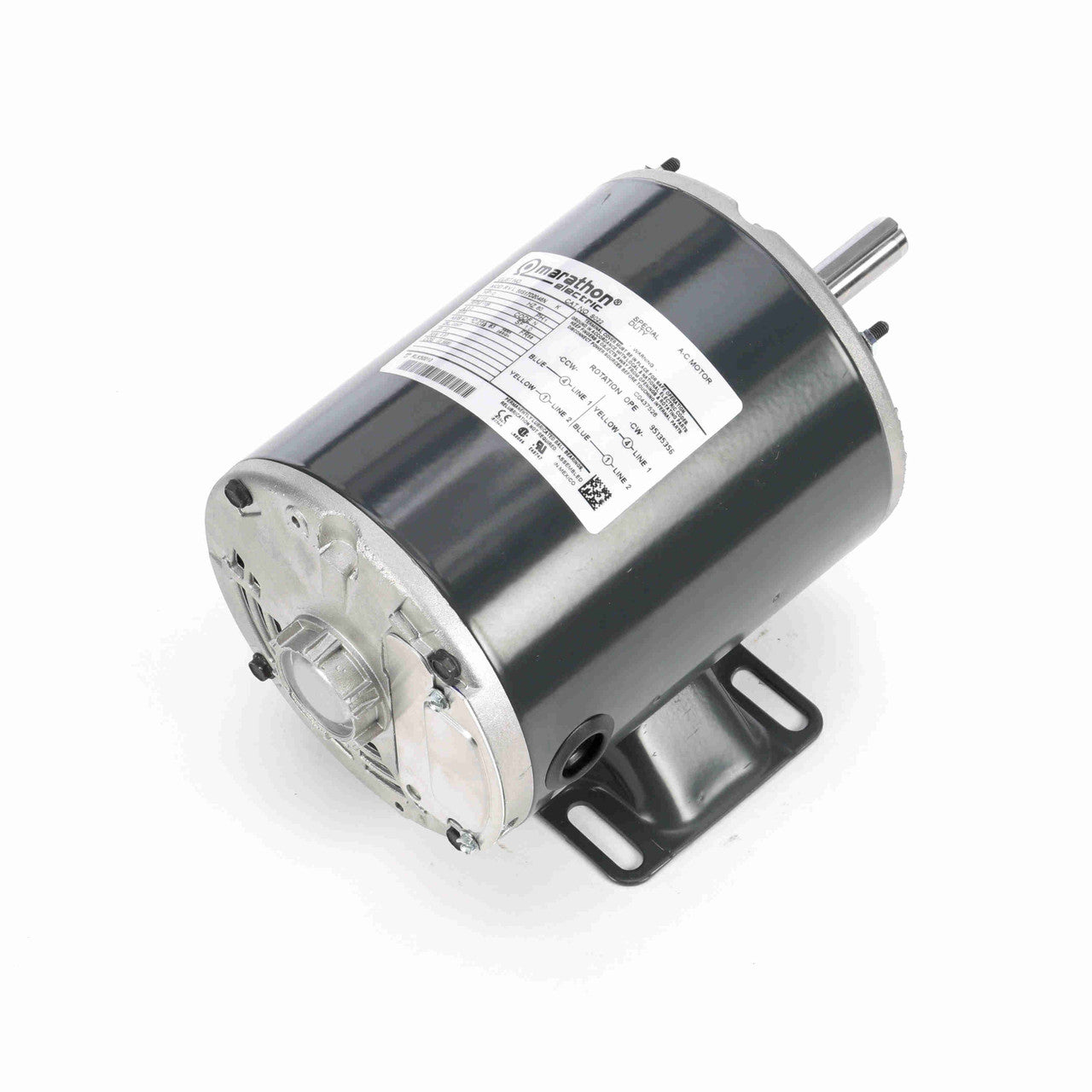

This motor is suitable for various applications needing a reliable single-phase electric motor. Wiring diagram on motor name plate.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: S022
• Country of Origin: United States

Technical Specifications

• Output HP: 0.5 Hp
• Output KW: 0.37 kW
• Voltage: 115 V
• Phase: 1
• Speed (RPM): 1725 rpm
• Frame Size: 56
• Mounting: Rigid Base
• Enclosure: Drip Proof
• Service Factor: 1
• Thermal Protection: No Protection
• Efficiency: 60 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 9.2 A
• Power Factor: 59.8
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: N
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Overload Protection: None
• Bearings: Ball Bearings
• MPN: 056S17D2046
• Rated Load (HP): 1/2
• AC Frequency Rating: 60 Hz
• Enclosure Type: DP (Drip-Proof)
• Base RPM: 1800
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Reversible/Non-Reversible: Reversible
• Brand: Marathon Electric
• Current Type: AC
• IP Rating: IP22
• Nominal Rated Input Voltage: 110 V, 115 V, 120 V
• Model: S022
• AC Phase: Single Phase
