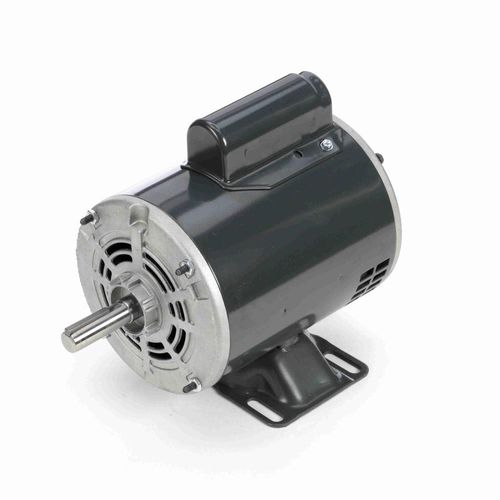

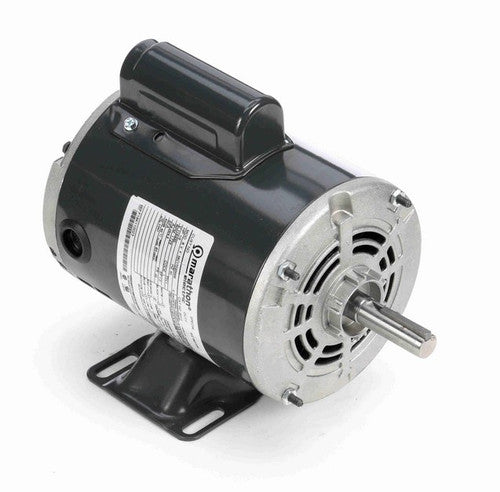

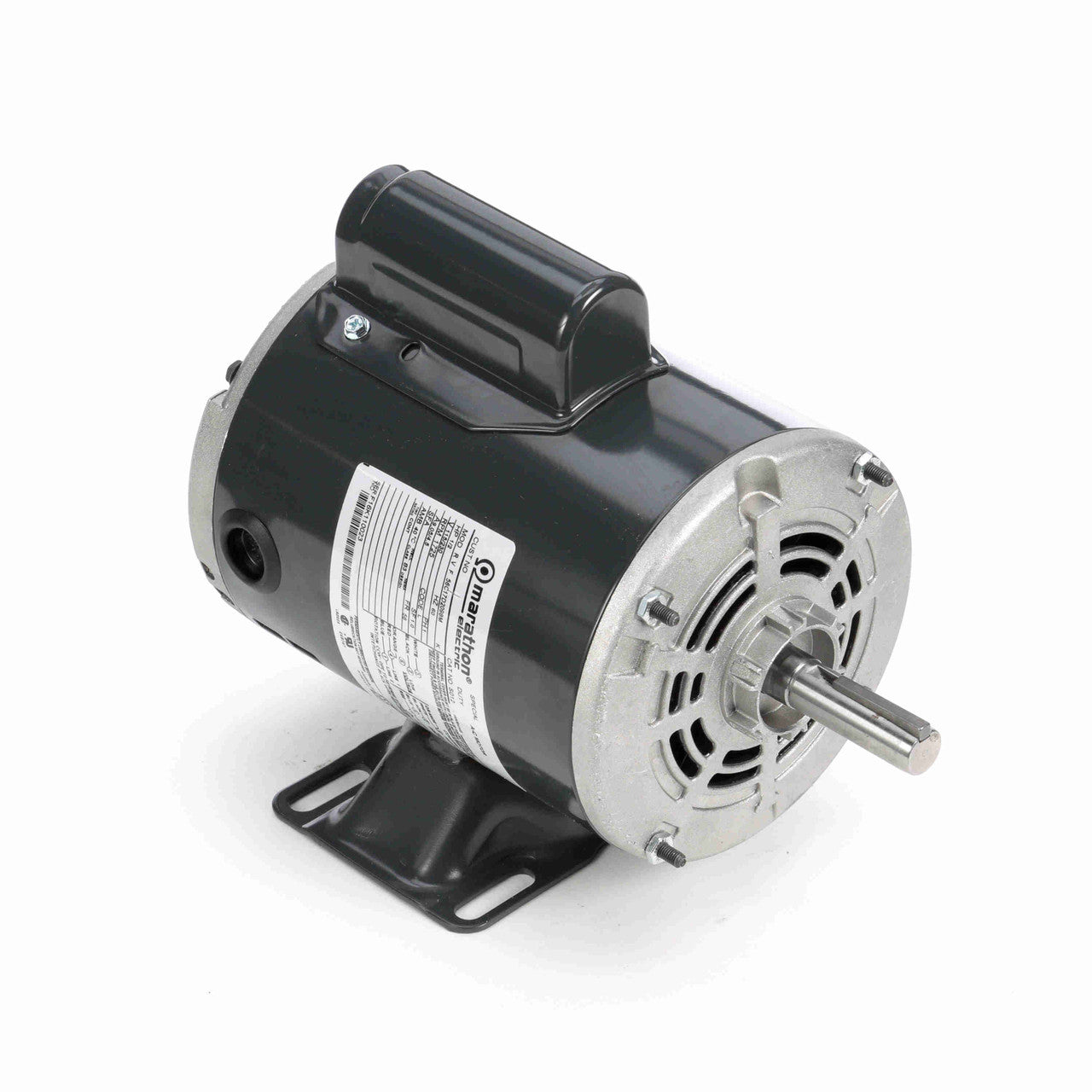

Marathon Motors S012 1/2HP 1800RPM 115/230V 1PH 56 FR DP 056C17D2098

Product Description

The MARATHON MOTORS S012 is a single-phase, special-purpose motor with a continuous duty rating suitable for general-purpose applications. This foot-mounted motor operates at 1800 RPM and 115/230V. It features an open drip-proof enclosure and a capacitor start induction run design. It is not intended for outdoor use.

• Horsepower sizes available from 1/4 HP through 5 HP.
• Heavy gauge steel frame and base.
• UL Recognized and CSA Certified.

Product Highlights

This motor is designed for use under usual service conditions without restriction to a particular application or type.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: S012

Technical Specifications

• Brand: Marathon Motors
• Manufacturers Part Number: S012
• Frame: 56
• Phase: 1
• Voltage: 115/230 V
• Horsepower: 1/2 HP
• Nameplate RPM: 1800 rpm
• Enclosure: DP
• Full Load Amps: 9.05/4.5 FLA
• Service Factor: 1
• Insulation Class: B
• Mounting Location: Rigid
• Ambient Temperature: 40 °C
• CSA Certified: Y
• Duty: Continuous
• IP Code: 22
• KVA Code: L
• Rotation: CCW
• Starting Type: Cap Start Ind Run
• UL: Recognized Construction
• Enclosure Type: Open/Drip Proof
• Motor RPM 60 Hertz: 1800 rpm
• Bearing Drive End: 6203
• Bearing Opp Drive End: 6203
• NEMA Design: NO DESIGN CODE
• 60 Hertz kW: 0.37 kW
• Orientation: Horizontal
• RPM Range: 1701-1800 rpm
• Electrical Type: Cap Start
• Material: Rolled Steel
• Mounting: Rigid Base
• Shaft Type: NEMA 56
• Output HP: 1/2
• Output KW: 0.37
• Frame NEMA: 56
• Mount NEMA: Base Mount
• Enclosure NEMA: ODP
• Enclosure IEC: IP22
• Frequency (Hz): 60
• Amps: 9.1/4.5
• Motor Type: Capacitor Start
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Overload Protection: None
• Bearings: Ball Bearings
• Warranty: 1 Year Manufacture Warranty
• Model No: S012
• Depth: 9.25
• Width: 8.0
• Catalog Number: S012
• Speeds: 1
• Frame Material: Rolled Steel
• Shaft Extension: 1.97 (in.)
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 10.22 (in.)
• Motor Orientation: Horizontal
• Type of Overload Protector: No
• Max Ambient: 40°C
• CE: N
