Marathon Motors R313A IEC Motor 1 HP

Product Description

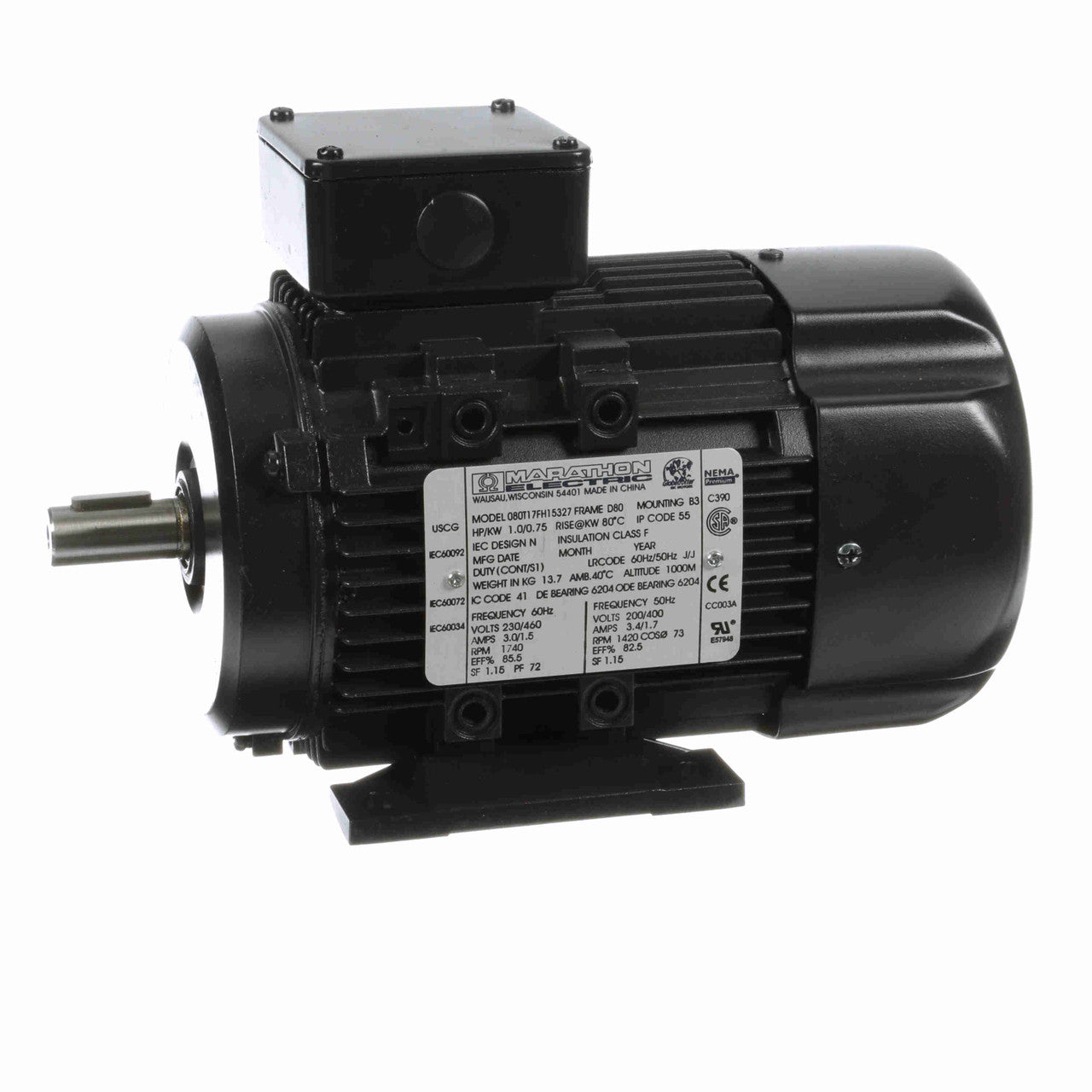

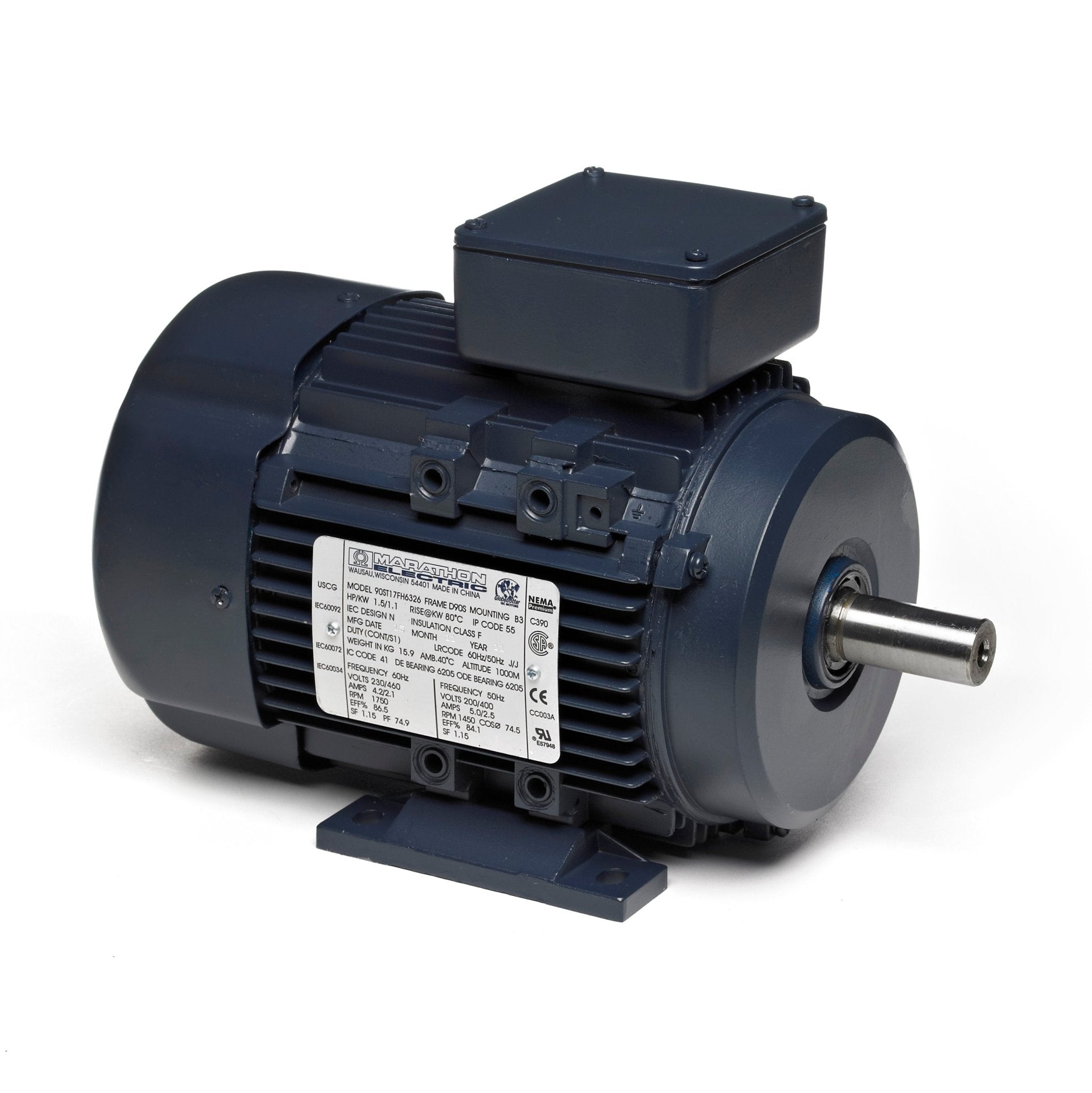

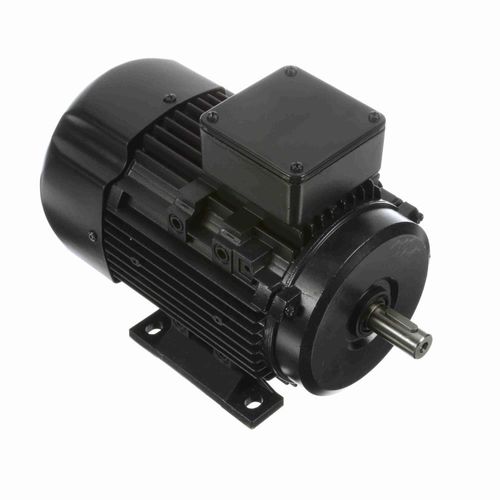

The MARATHON MOTORS R313A electric motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. It features a three-phase electrical type, 1 HP, and 1740 RPM. The motor has an aluminum material and a rigid base for mounting.

• Three Phase electrical type
• Aluminum Material
• Rigid Base Mounting

Product Highlights

This MARATHON MOTORS R313A motor is suitable for various applications requiring IEC dimensions and electrical standards, offering a robust and efficient solution.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: R313A

Technical Specifications

• MPN: R313A
• Brand: MARATHON MOTORS
• Electrical Type: Three Phase
• HP: 1
• RPM: 1800
• Frame: 80
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Phase: Three
• Voltage: 230/460V
• Rotation: Reversible
• Material: Aluminum
• Mounting: B3 Mounting
• Amperage: 3.0/1.5
• Shaft Type: Straight
• Output KW: 0.75
• Frame Size: 80
• Service Factor: 1.15 & 1.15
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 3.0/1.5 & 3.4/1.7 A
• Power Factor: 72
• Duty: Continuous
• Insulation Class: A (Max 221°F)
• KVA Code: J
• Drive End Bearing Size: 6204
• Opp Drive End Bearing Size: 6204
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 55
• Number of Speeds: 1
• Application: General Purpose
• Frame Size IEC: 80
• Mount IEC: B3 Foot Mount
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• IEC Shaft Dia.: 19mm
• Rated Load (HP): 1
• AC Frequency Rating: 50/60 Hz
• IP Rating: IP55
• Nominal Rated Input Voltage: 400 V, 460 V
• Model: R313A
• AC Phase: Three Phase
• Horsepower: 1 hp
• Kilowatt: 0.75 kW
• Amps: 3.0/1.5 amps
• Hertz: 60hz
• Base: Rigid Base
• Bearings: Ball Bearings
