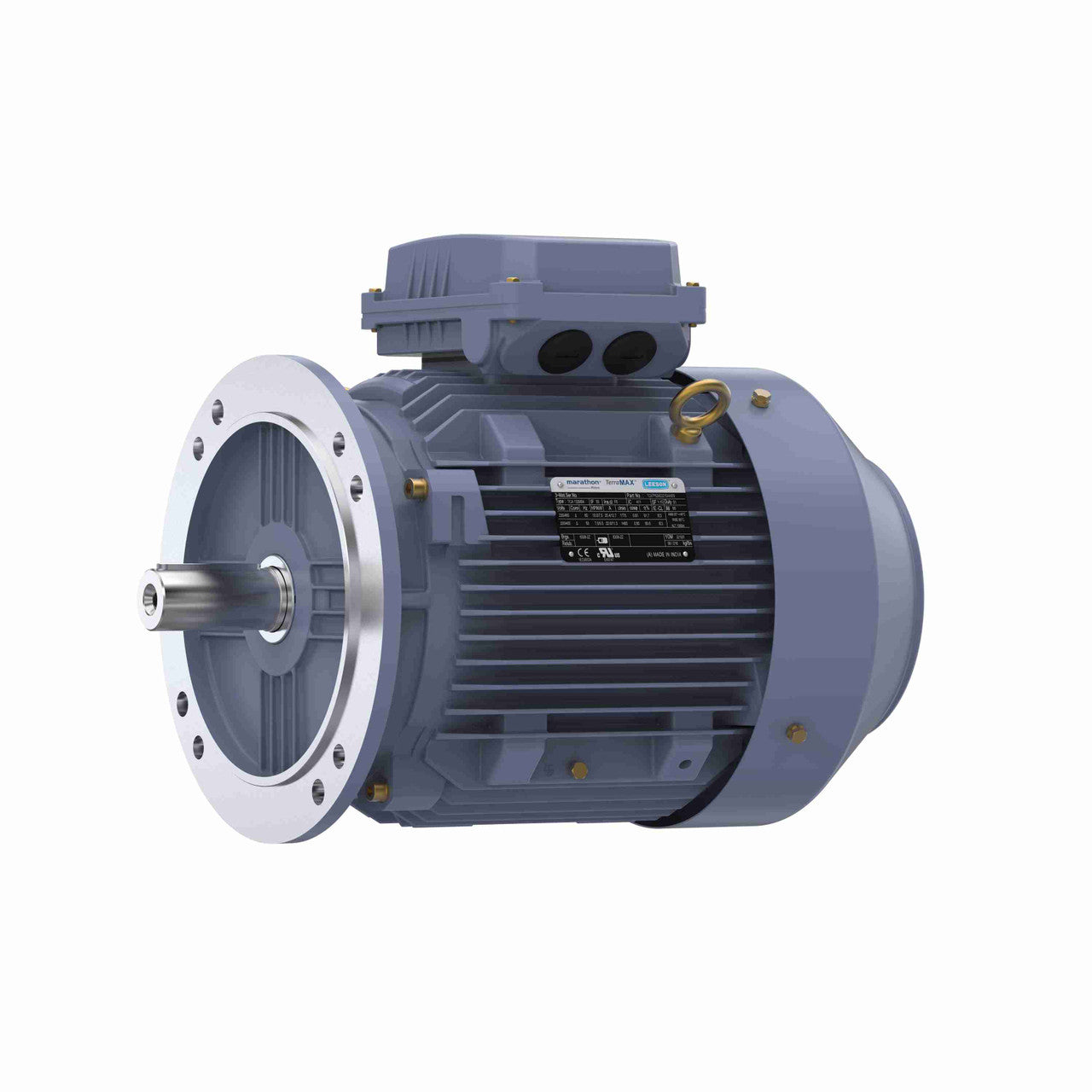

Marathon Motors R231 10 Hp 1800 Rpm 132M FR 230/460 Vac 3 PH Motor

Product Description

The Marathon Motors R231 is a 10 horsepower motor designed for various applications, including fans, pumps, compressors, and conveyors. Operating at both 230 and 460 volts, this three-phase motor converts electrical energy into mechanical energy efficiently. It operates at a speed of 1775 revolutions per minute and meets the IE3 European and NEMA premium efficiency standards.

• Meets IE3 European and NEMA premium efficiency standards
• Available for 60/50 Hz interchangeability
• UL listed and CSA certified

Product Highlights

This motor is ideal for industrial applications requiring IEC dimensions and standards.

Product Information

Standard Information

• Brand: Marathon Motors
• Part Number: R231

Technical Specifications

• Phase: 3
• Output HP: 10
• Output KW: 7.5
• Voltage: 230/460 V
• Speed (RPM): 1775
• Service Factor: 1.15
• Frame Size: 132M
• Enclosure: Totally Enclosed Fan Cooled
• Efficiency: 91.7%
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 25.4/12.7 A
• Power Factor: 81
• Duty: Continuous
• Insulation Class: F
• Design Code: N (IEC)
• KVA Code: K
• Drive End Bearing Size: 6308
• Opp Drive End Bearing Size: 6208
• UL: Recognized
• CSA: N
• CE: Y
• IP Code: 55
• Number of Speeds: 1
• Efficiency Class: IE3
• Mounting: Rigid Base
• Application: General Purpose
