Marathon Motors P245 Condenser Fan Motor 1/2 HP 825 RPM

Product Description

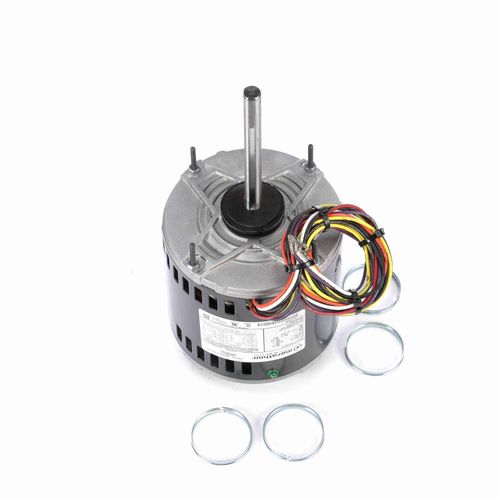

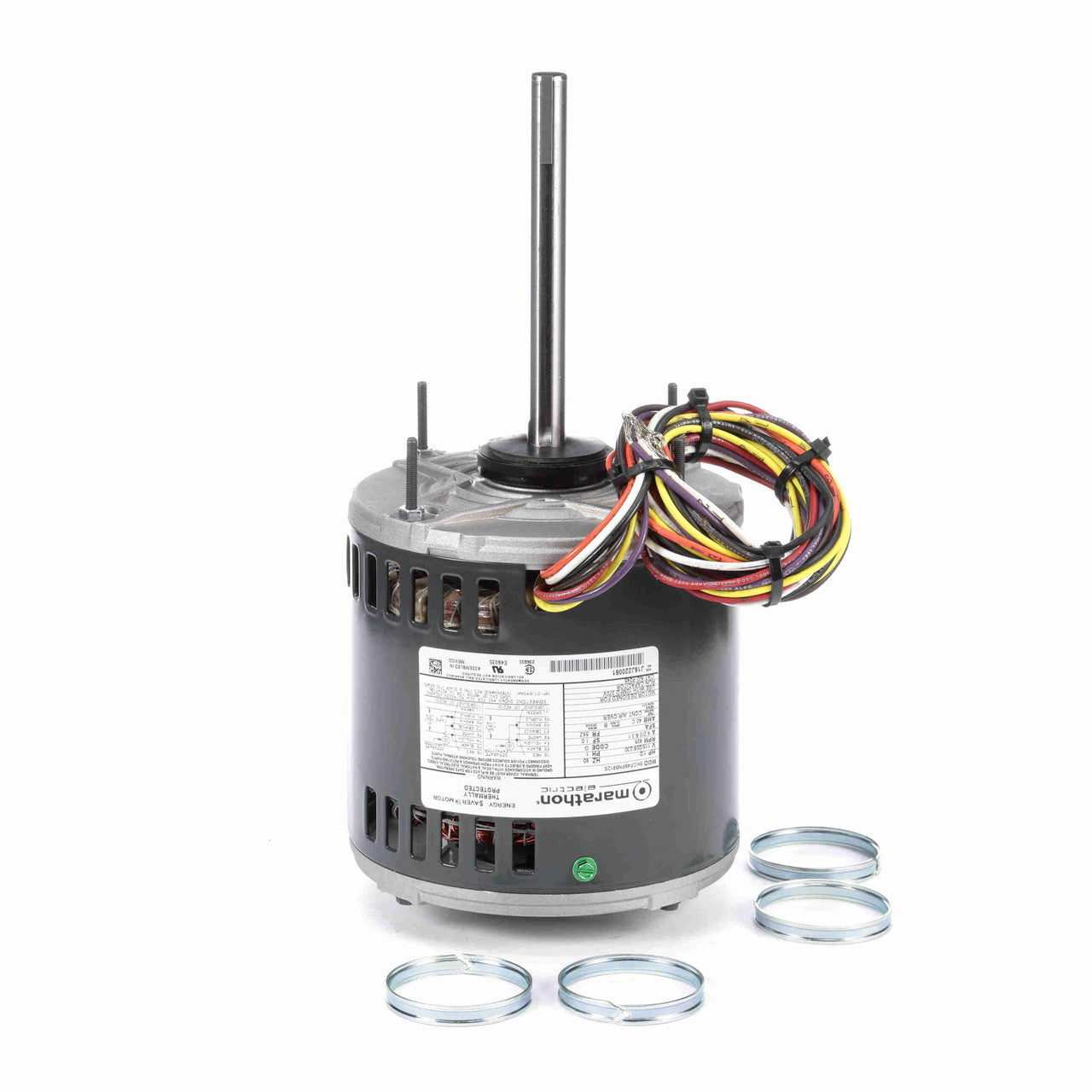

The MARATHON MOTORS P245 is a condenser fan motor. It features a 1/2 HP and 825 RPM. The motor is made of rolled steel and has a resilient ring for mounting. It is designed for direct drive condenser fan applications and needs to be mounted within the airflow of the fan for proper cooling.

• Electrical Type: PSC
• Frame: 56Z
• Enclosure: ODP

Product Highlights

The MARATHON MOTORS P245 is ideal for condenser fan applications requiring a durable and efficient motor.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: P245

Technical Specifications

• Brand: Marathon Motors
• SKU: MP245
• Electrical Type: PSC
• HP: 1/2
• RPM: 825
• Frame: 56Z
• Diameter: 6.5"
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient Ring
• Amperage: 6.2,3.8-3.1
• Shaft Type: Single
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Speed (RPM): 825 rpm
• Frame Size: 56Z
• Enclosure NEMA: DPAO
• Frequency (Hz): 60
• Efficiency: 57.5
• Application: Condenser Duty
• Mount NEMA: Vert. Shaft Up
• URI Part Number: P245
• Vendor Part Number: P245
• Length (In.): 15.63
• Width (In.): 9.88
• Height (In.): 7.50
• Bearings: Ball
• Capacitor: 10MFD/370VAC Required
• Duty Cycle: Continuous
• Enclosure Material: Steel
• Enclosure Type: ODP (Open Dripproof)
• Hz: 60
• Insulation Class: B
• Manufacturer Model #: 5KCP49PN9812S
• Maximum Ambient Temperature: 40 C
• Motor Diameter: 6-1/2"
• Motor Shell Length: 5.34"
• Mounting Orientation: Any
• Number of Speeds: 1
• Overall Length: 13.66"
• Product Type: PSC (Permanent Split Capacitor)
• Service Factor: 1
• Shaft Diameter: 5/8"
• Shaft Length: 6"
• Thermal Protection: Automatic
• Volts: 230
