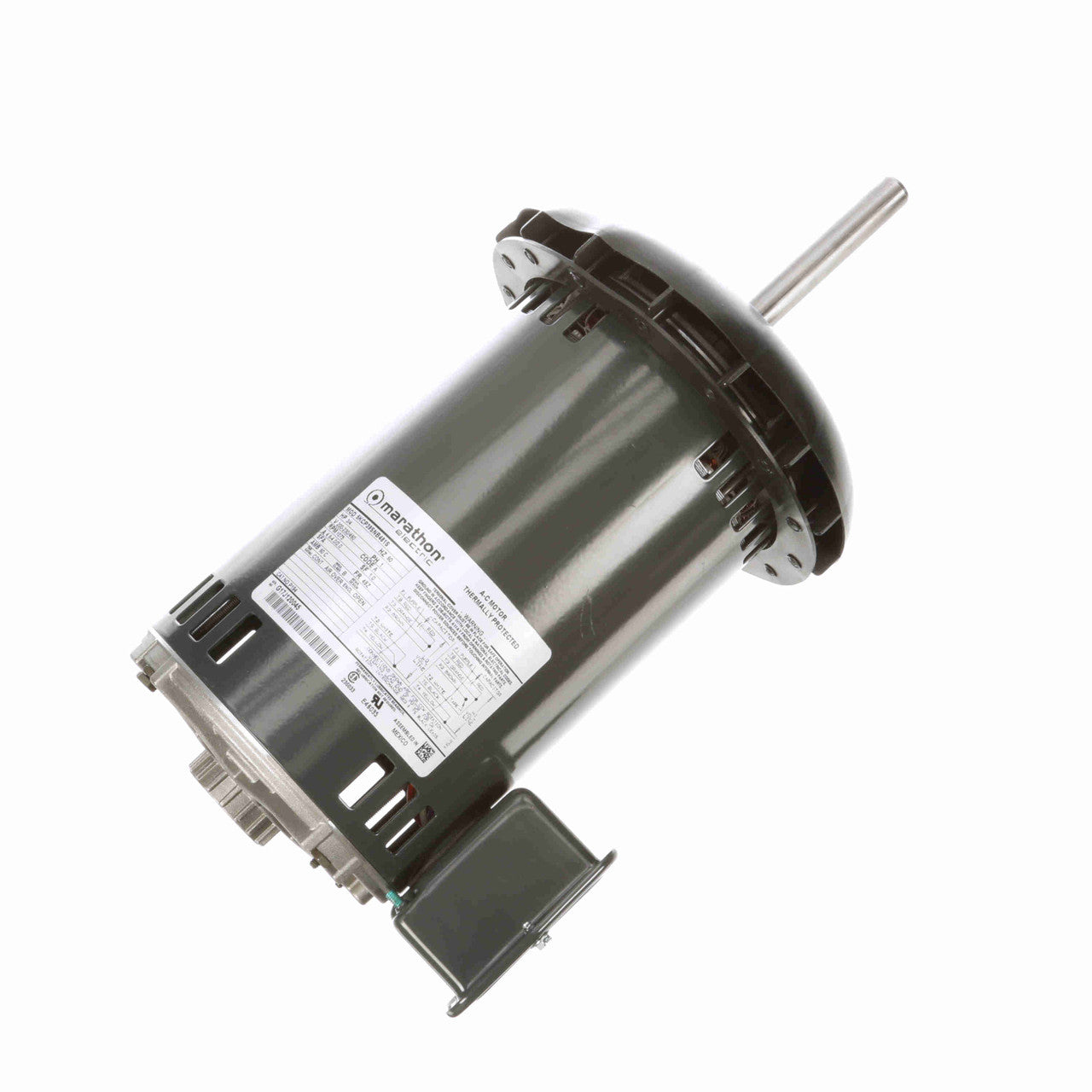

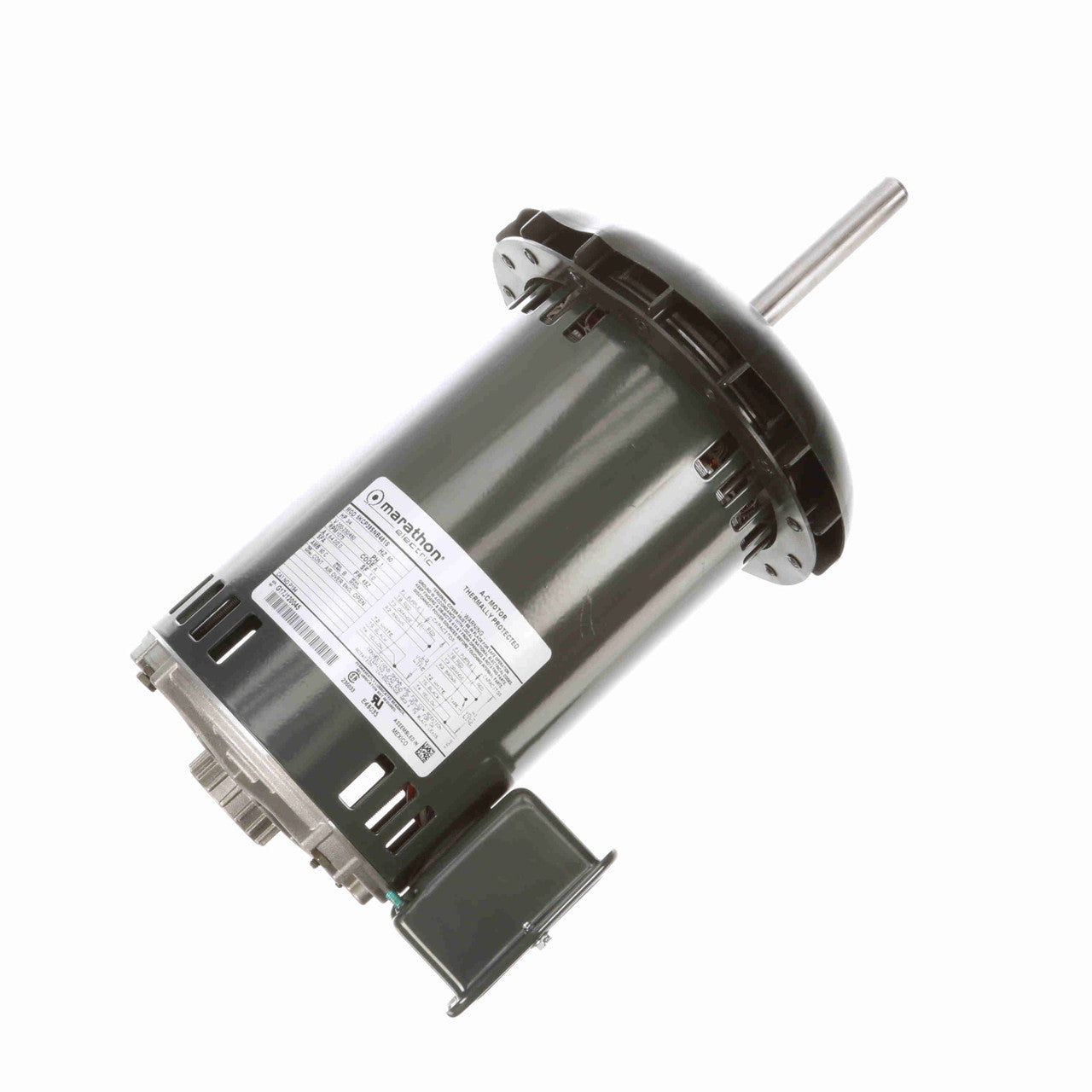

Marathon Motors P194 3/4 HP Single Phase Condenser Fan Motor (48Z Frame, Shaft Up) 5KCP39SNB481S

Product Description

Marathon Motors P194 is a 3/4 HP single phase commercial condenser fan motor (model 5KCP39SNB481S) for condenser and heat pump applications. It is an open-frame NEMA 48Z motor rated 200-230/460 V, 60 Hz, 1075 RPM and 0.55 kW, intended for vertical shaft-up belly band mounting within the fan airflow for proper cooling. The motor includes a rain shield, shaft slinger and ball bearings; capacitor not included.

• Open-frame NEMA 48Z motor configured for condenser duty with belly band vertical shaft-up mounting
• Rated 200-230/460 V, 60 Hz; 3/4 HP (0.55 kW), 1075 RPM
• Features rain shield, shaft slinger, shaft with flat and ball bearings; capacitor not included; UL Recognized and CSA Certified

Product Highlights

3/4 HP condenser fan motor, 1075 RPM, 200-230/460 V, NEMA 48Z, model 5KCP39SNB481S

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: P194

Technical Specifications

• Brand: Marathon Motors
• MPN: P194
• Model Number: 5KCP39SNB481S
• Manufacturer: Regal Rexnord Commercial
• Application: Condenser and heat pump duty
• Output Power: 3/4 HP
• Output Power (kW): 0.55 kW
• Output Speed (RPM): 1075
• Frame: NEMA 48Z
• Mounting Type: Belly band, vertical shaft-up
• Enclosure: Open
• Input Voltage: 200-230/460 V
• Frequency: 60 Hz
• Efficiency: 70.1%
• Bearing Type: Ball bearings
• Shaft: Shaft-up with flat; shaft slinger; rain shield
• Capacitor: Not included
• Certifications: UL Recognized; CSA Certified
• HS Code: 8501.40.4040
• UPC: 722856038050
