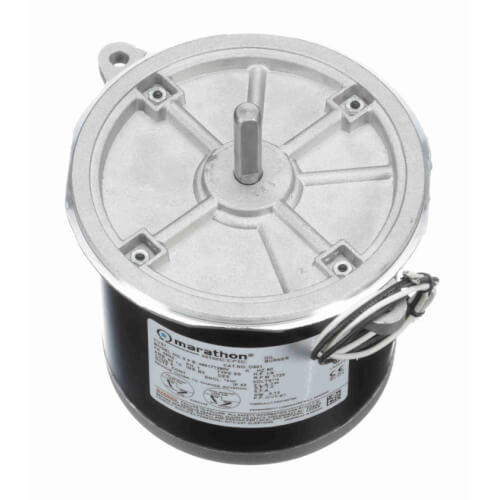

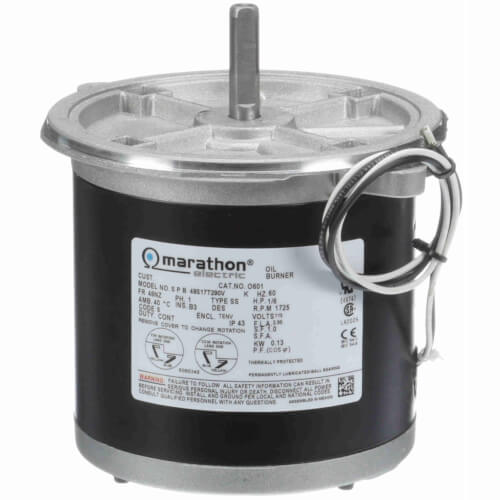

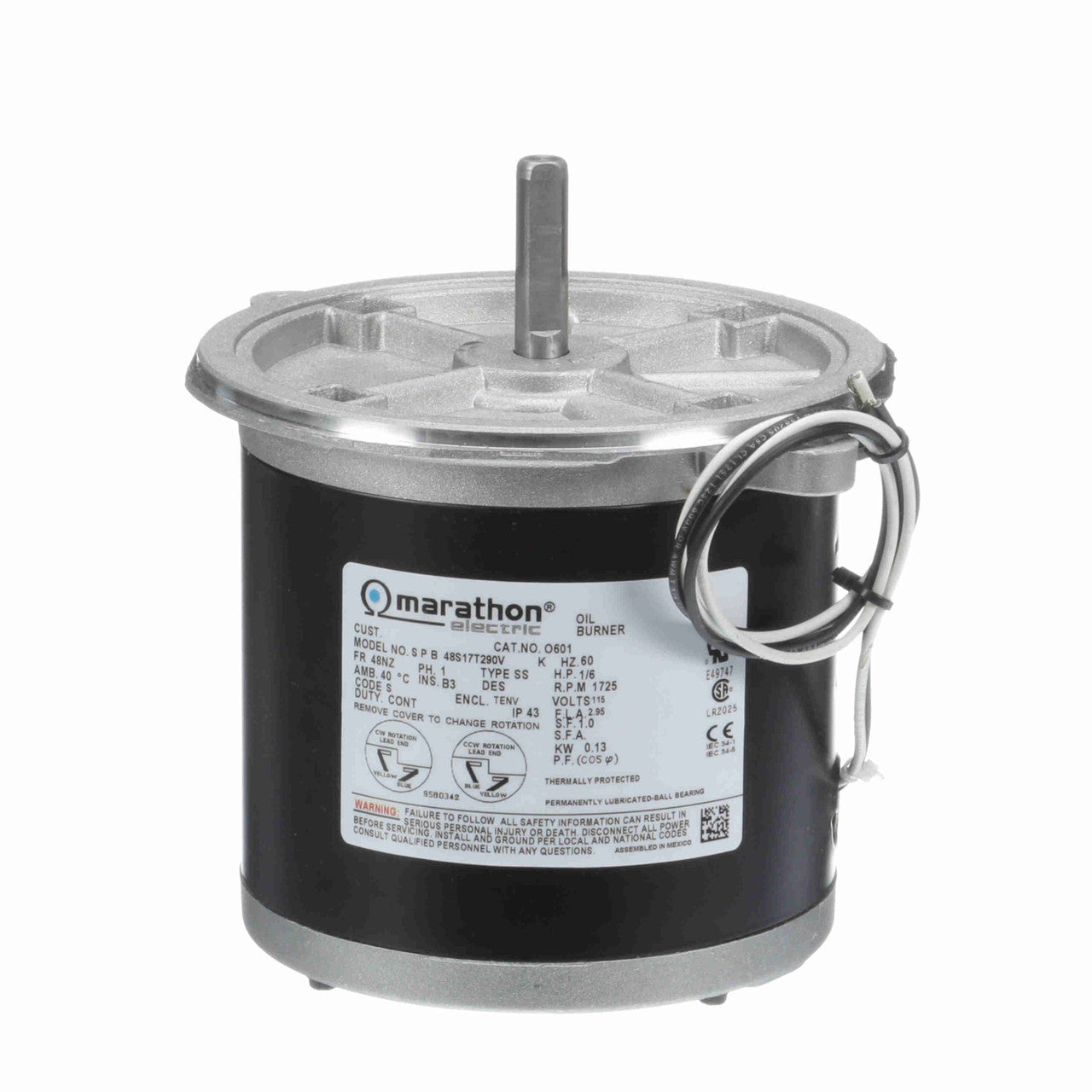

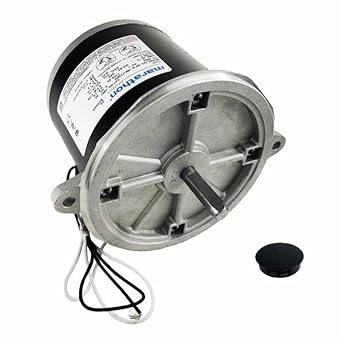

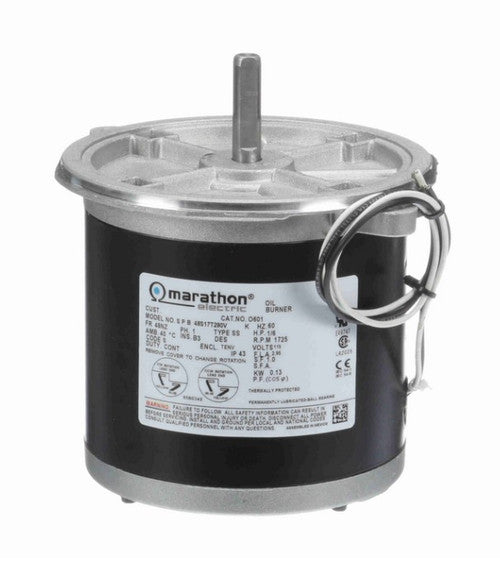

Marathon Motors O601 Oil Burner Motor 1/6 HP 1725 RPM

Product Description

The Marathon Motors O601 oil burner motor serves as a direct replacement for residential and commercial oil burners and hot water pressure or steam cleaners. Operating at 1725 RPM and 115V, this motor is optimal for continuous duty applications. The 48N frame ensures compatibility with various systems. This model is designed for reliable operation in both home and industrial settings.

• 115V voltage for residential and commercial use.
• 1725 RPM for efficient performance.
• 1/6 HP suitable for various oil burner applications.

Product Highlights

This motor provides durability and consistent performance, ideal for users requiring reliable oil burner operation.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: O601

Technical Specifications

• Horse Power: 1/6
• RPM: 1725
• Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
• Frame: 48N
• Phase: 1
• Voltage: 115V
• Amperage: 3
• Mount: Round
• Bearings: Ball
• Rotation: Selective CW
• Motor: Split Phase
• Poles: 4
• Duty: Continuous
• Speeds: 1
• Max Ambient Temp (°F): 104°F
• Insulation Class: B
• Overload Protection: Manual
• Motor Orientation: Horizontal
• Output HP: 0.17 HP
• Output KW: 0.13 kW
• Service Factor: 1
• Thermal Protection: Manual
• Efficiency: 58.2%
• Current: 3.0 A
• Power Factor: 63.3
• KVA Code: S
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Application: Oil Burner
• Output RPM: 1725
• Shaft: 2 inches x 1/2 inch Diameter
• Reversible: Yes
