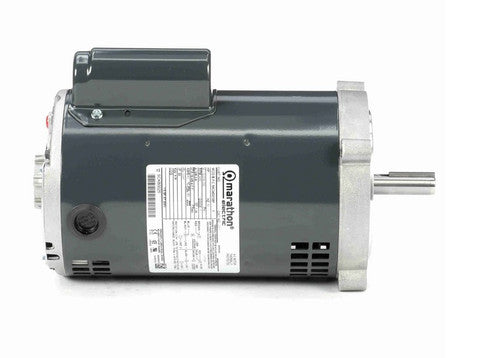

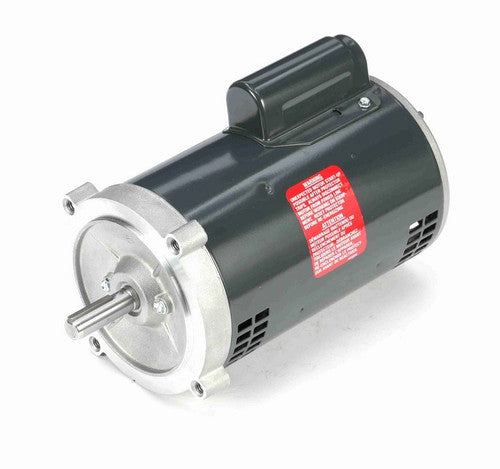

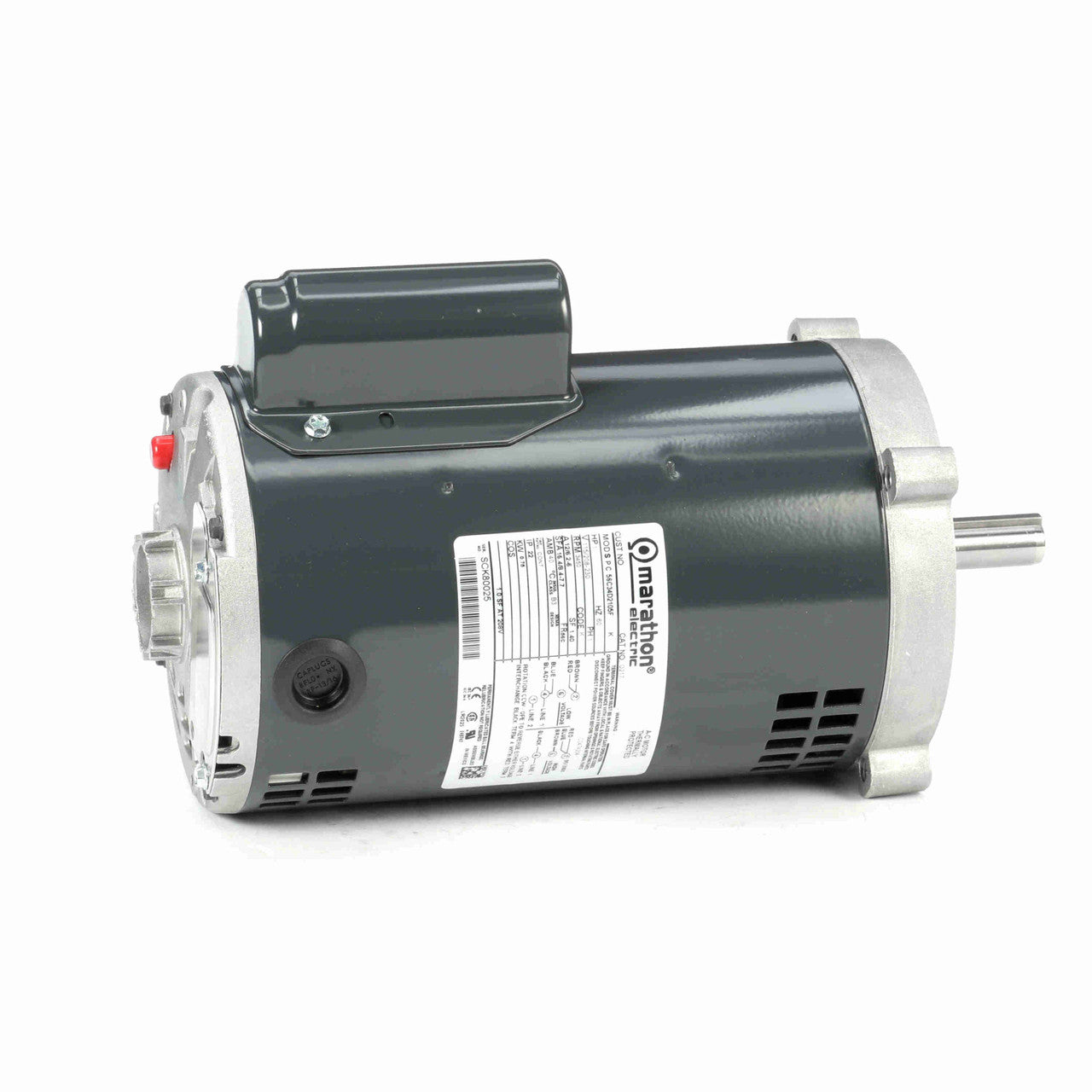

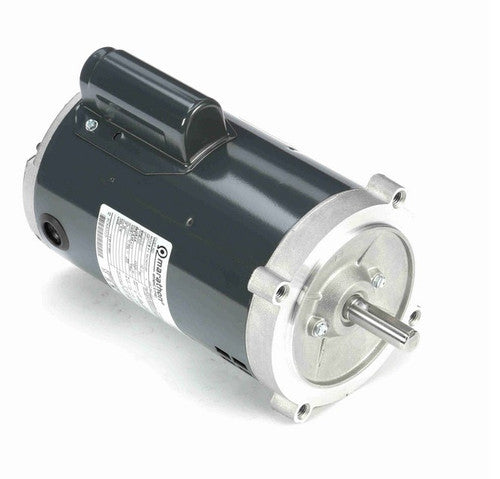

Marathon Motors O217 Oil Burner Motor 1 hp 3600 rpm

Product Description

The MARATHON MOTORS O217 is a 1 HP oil burner motor designed as a direct replacement for residential and commercial oil burners and hot water pressure/steam cleaners. It features a split phase and capacitor start, dripproof enclosure, and C-Face Footless mounting.

• Capacitor Start Induction Run design
• NEMA 56C direct mounting
• Manual thermal protection
• Service factor of 1.4

Product Highlights

This motor is UL Recognized and CSA Certified, ensuring reliable operation for oil burner applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: O217
• Country of Origin: United States

Technical Specifications

• Output HP: 1 Hp
• Output KW: 0.75 kW
• Voltage: 115/208-230 V
• Phase: 1
• Speed (RPM): 3450 rpm
• Frame Size: 56C
• Mounting: C-Face Footless
• Enclosure: Drip Proof
• Service Factor: 1.4
• Thermal Protection: Manual
• Efficiency: 71.5 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 12.0/6.2-6.0 A
• Power Factor: 76
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: K
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Application: Oil Burner
• Mount NEMA: C-Face No Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Bearings: Ball Bearings
• Hertz: 60 Hz
• Amperage: 6.0 Amps
• Speeds: 1-Speed
• Country of Origin: United States
