Marathon Motors O211 Electric Motor 1/3 HP 3600 Rpm 56C

Product Description

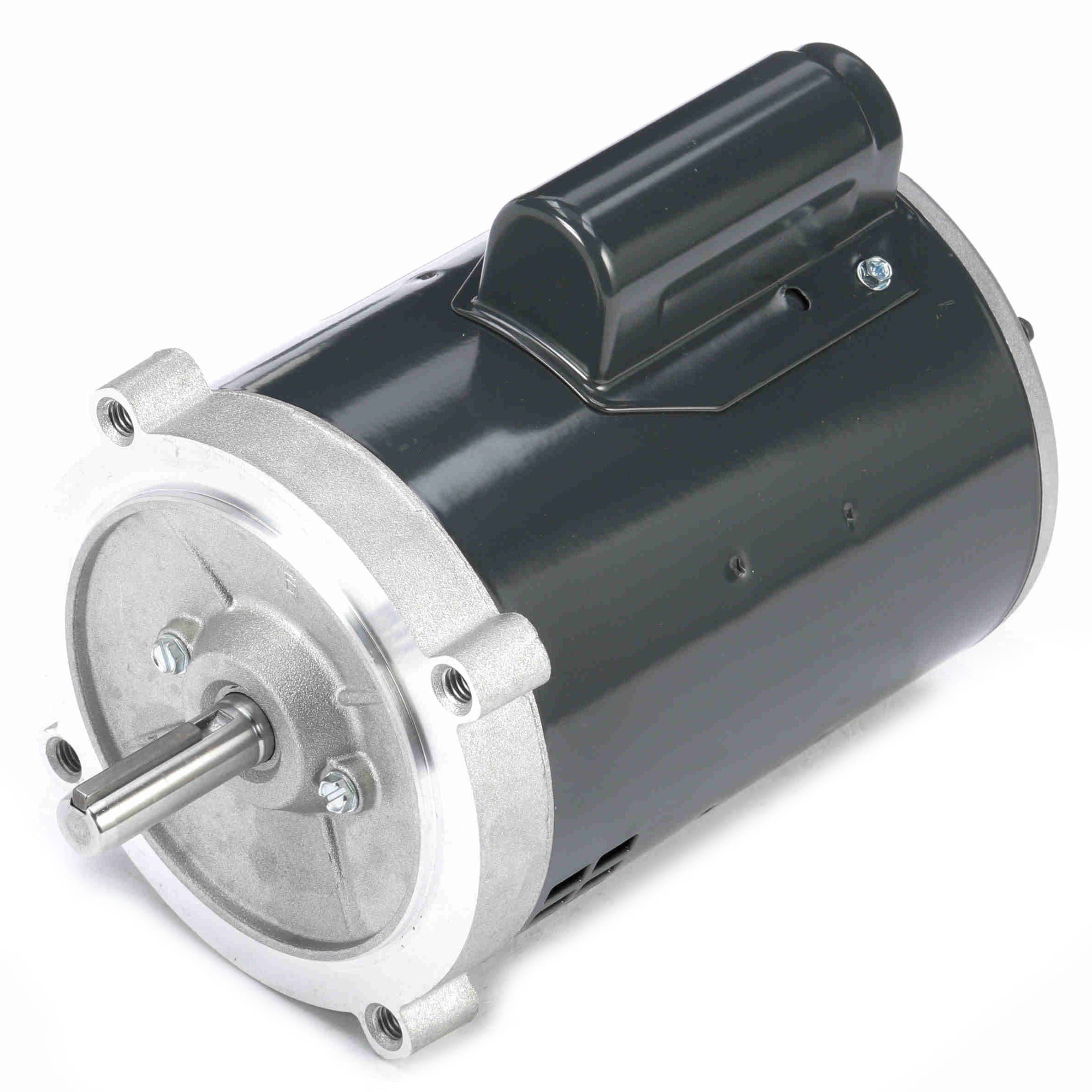

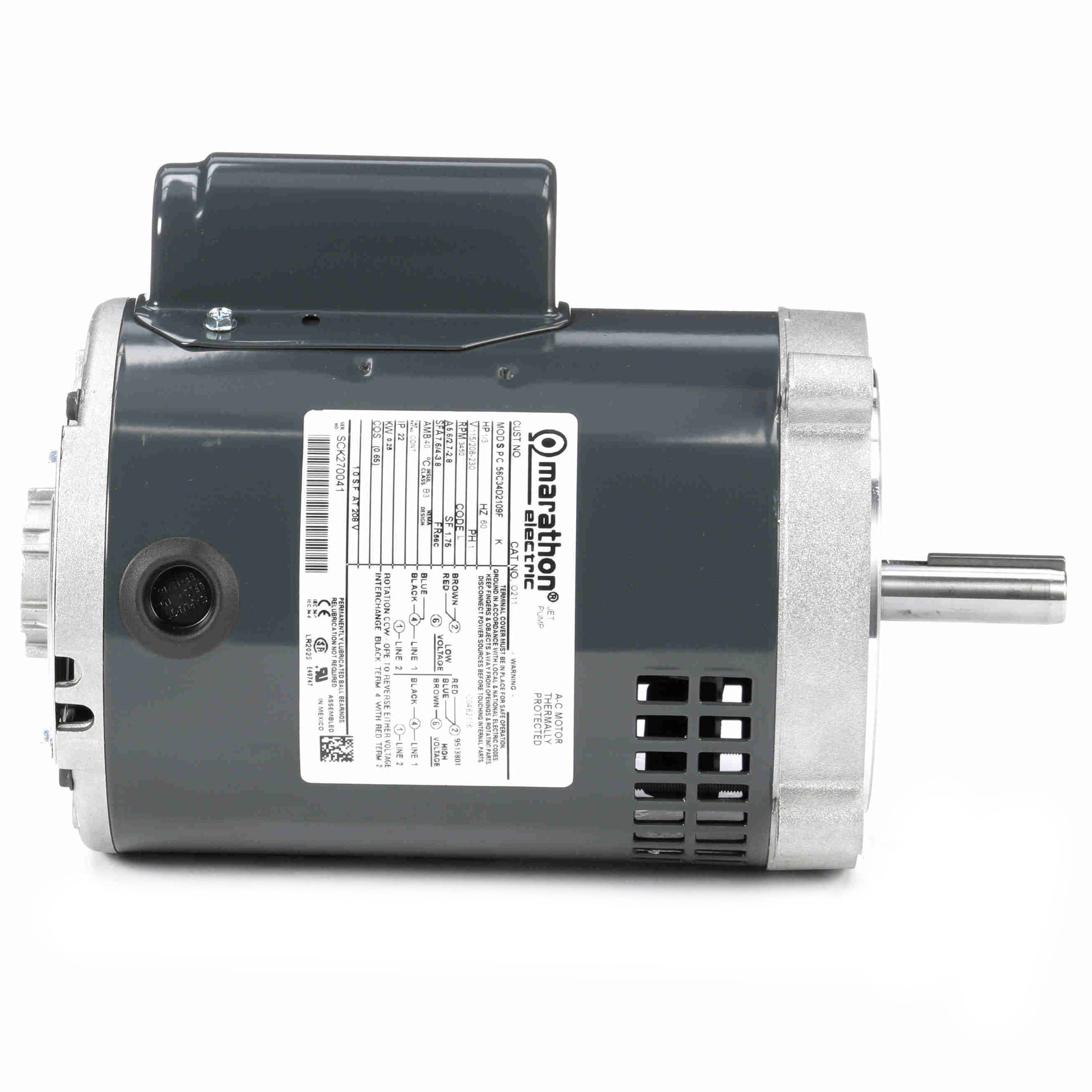

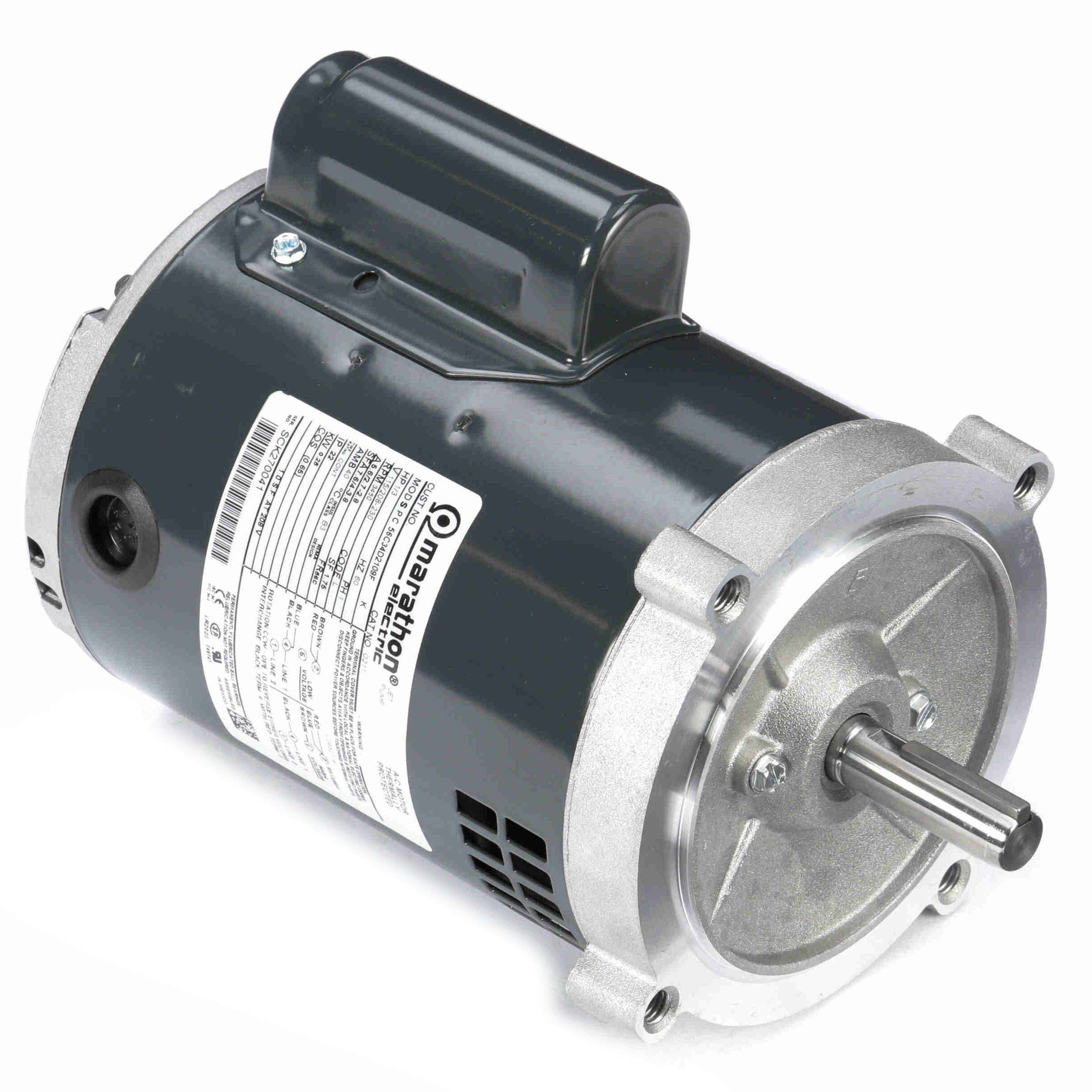

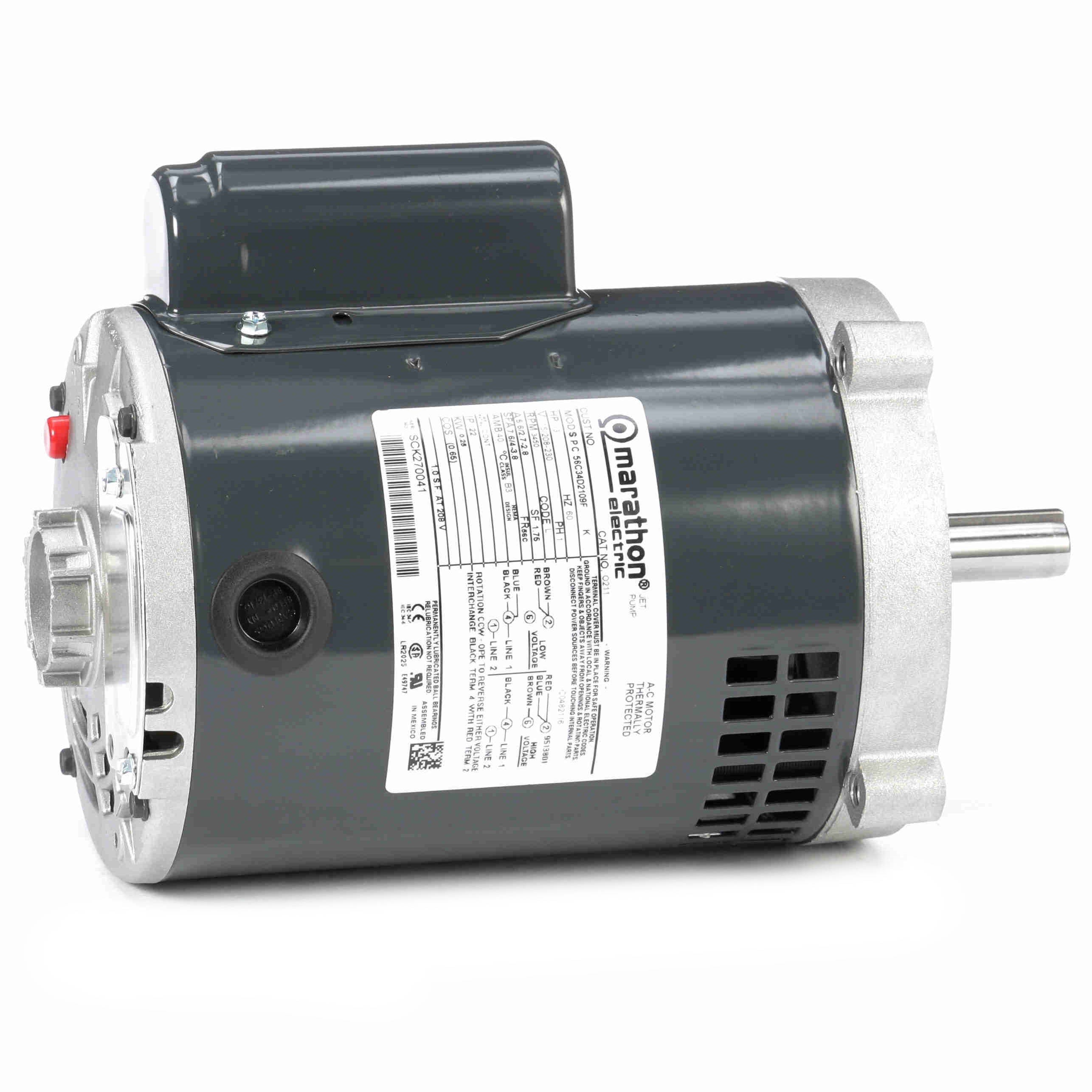

The MARATHON MOTORS O211 is a 1/3 HP electric motor with a speed of 3600 RPM and a 56C frame. This single-phase motor is designed as a direct replacement for residential and commercial oil burners and hot water pressure/steam cleaners. It features a capacitor start induction run design and NEMA 56C direct mounting.

• Capacitor Start Induction Run design
• NEMA 56C direct mounting
• NEMA Jet Pump Service factors

Product Highlights

This motor is suitable for oil burner applications requiring a reliable and efficient power source.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: O211

Technical Specifications

• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Voltage: 115/208-230 V
• Phase: 1
• Speed (RPM): 3450 rpm
• Frame Size: 56C
• Mounting: C-Face Footless
• Enclosure: Drip Proof
• Service Factor: 1.75
• Thermal Protection: Manual
• Efficiency: 64 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.6/2.7-2.8 A
• Power Factor: 65
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Application: Oil Burner
• Mount NEMA: C-Face No Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Rated Load (HP): 1/3
• AC Frequency Rating: 60 Hz
• Base RPM: 3600
• Shaft Type: T
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 5/8 in
• MPN: 056C34D2109
• Mounting Type: Face-Mounted
• Brand: Marathon
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: O211
• Nominal Rated Input Voltage: 115 V, 230 V
• NEMA Frame Suffix: C
• AC Phase: Single Phase
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Selective Counterclockwise
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Extension: 2.06 in
• Assembly/Box Mounting: F1 Only
• UPC: 722856041654
• Weight: 14.00 LB
• Frame: 56C
• Overload Protector: Manual
• Overall Length: 10.44 in
• Frame Length: 6.50 in
