Marathon Motors N468B AC Motor 1.50 HP Washdown Motor 230/460 V 056T17W99028

Product Description

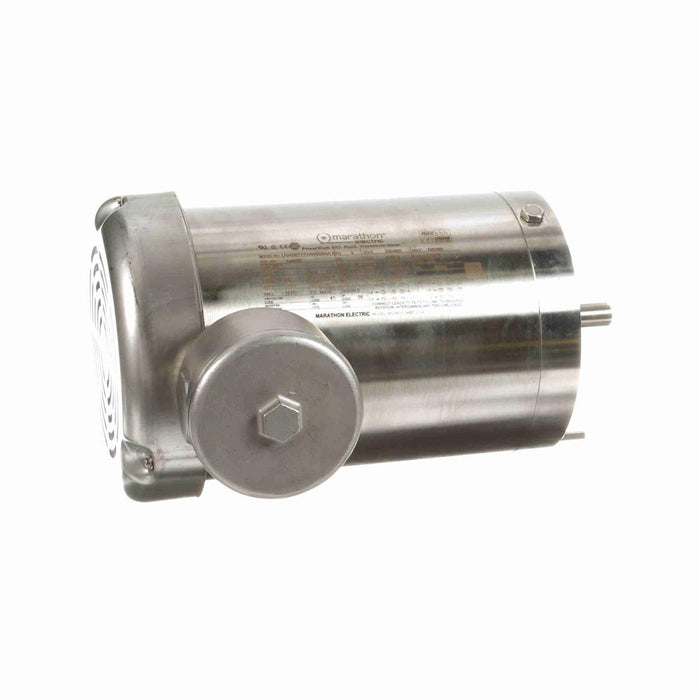

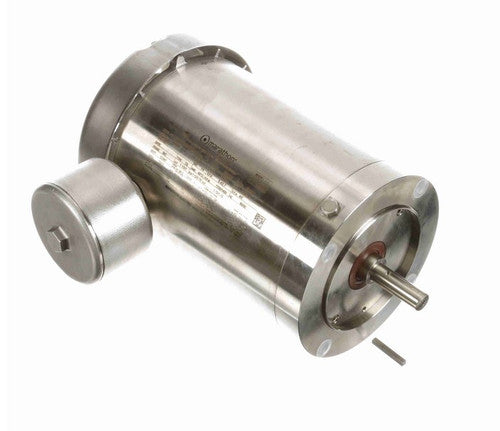

The MARATHON MOTORS N468B AC Motor is a 1.50 HP washdown motor. This three-phase motor operates at 230/460V and 1800 RPM with a 56C frame and TEFC enclosure. It is designed for use in caustic environments and features a stainless steel keyed shaft. Wiring diagram is located on the motor name plate.

• Stainless Steel wash-down motor
• Suitable for caustic environments
• C-face mount

Product Highlights

This AC motor is ideal for applications requiring washdown capabilities and resistance to caustic substances.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: N468B

Technical Specifications

• Alternate Mfr Part Number: 056T17W99028
• Brand: MARATHON MOTORS
• Manufacturer Part Number: N468B
• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460V
• Phase: Three Phase
• Frame: 56C
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Amps: 4.8/2.4
• Hertz: 60hz
• Shaft: Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15
• Overload Protection: None
• Base: No Base
• Bearings: Ball Bearings
• Insulation Class: Class F
• Mounting: C-face
• Reversible: Yes
• Certification: BISSC (Baking Industry Sanitation Standards Committee)
• Duty Cycle: Continuous
• Efficiency: 0.865
• Enclosure Material: Steel
• Maximum Ambient Temperature: 40° C
• Motor Shell Length: 7.75"
• Mounting Orientation: Horizontal
• Number of Speeds: 1
• Overall Length: 12.69"
• Product Type: Three Phase
• Rotation: Reversible
• Shaft Diameter: 5/8"
• Shaft Length: 2.07"
