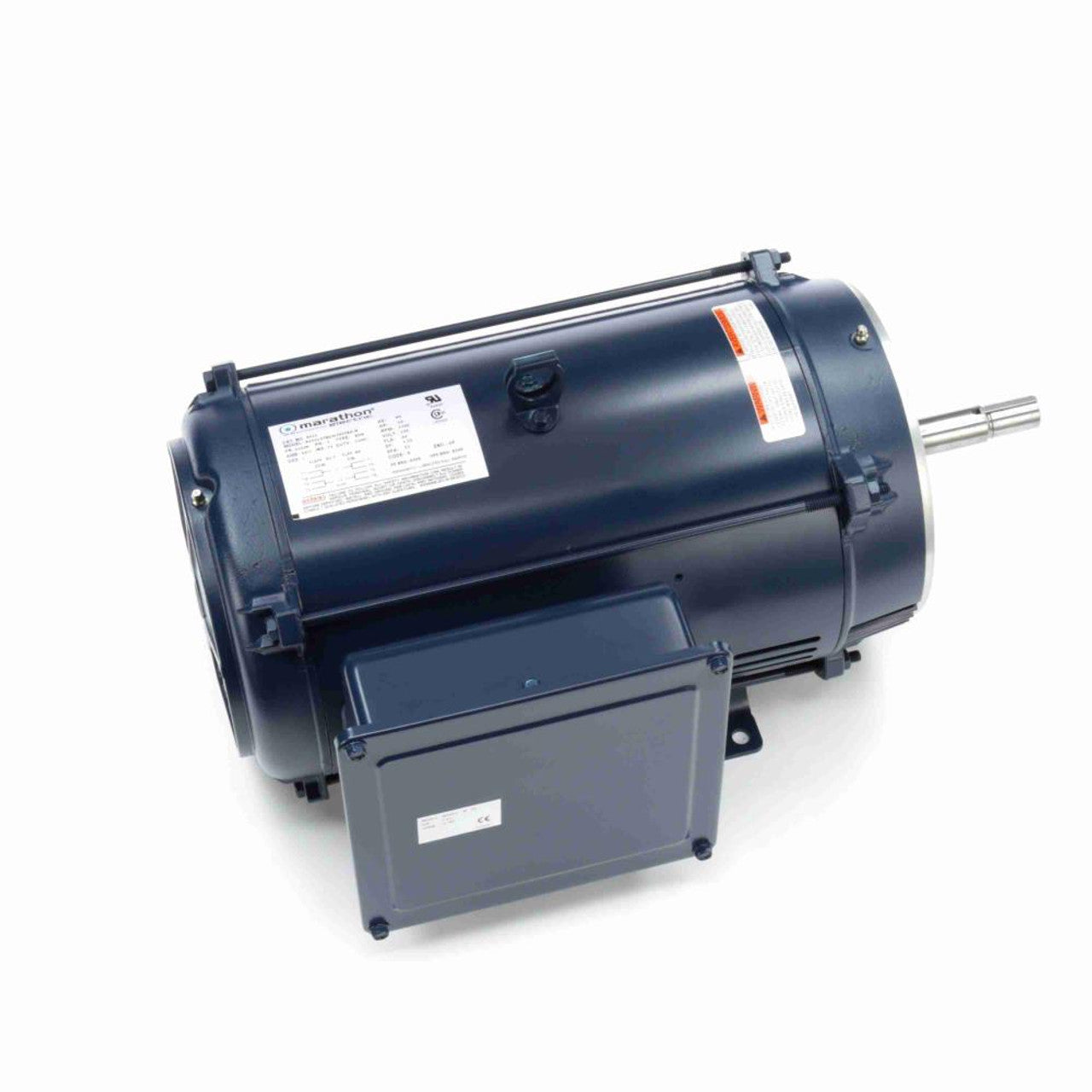

MARATHON MOTORS MZ435 Close-Coupled Pump Motor 10 HP

Product Description

The MARATHON MOTORS MZ435 is a close-coupled pump motor with a power rating of 10 HP and an operational speed of 3500 RPM. This motor is engineered with a rigid base and supports selective counterclockwise rotation. The motor's shaft dimensions measure 0.875 inches by 4.25 inches and it has a C-dimension of 22.09 inches.

• Capacitor Start Capacitor Run
• F1/F2 Capable
• Rolled Steel Construction

Product Highlights

This single-phase motor operates at 230V and features a totally enclosed fan-cooled (TEFC) design. It is ideal for continuous duty applications that demand NEMA JM pump shaft dimensions.

Product Information

Standard Information

• Power: 10 HP
• Voltage: 230V

Technical Specifications

• RPM: 3500
• Frame: 215JM
• Phase: Single
• AMP: 41.5
• S.F.: 1.15
• Enclosure: TEFC
• Rotation: Selective CCW
• Base: Rigid
• Shaft: 0.875 inches X 4.25 inches Keyed
• C-Dimension: 22.09 inches
