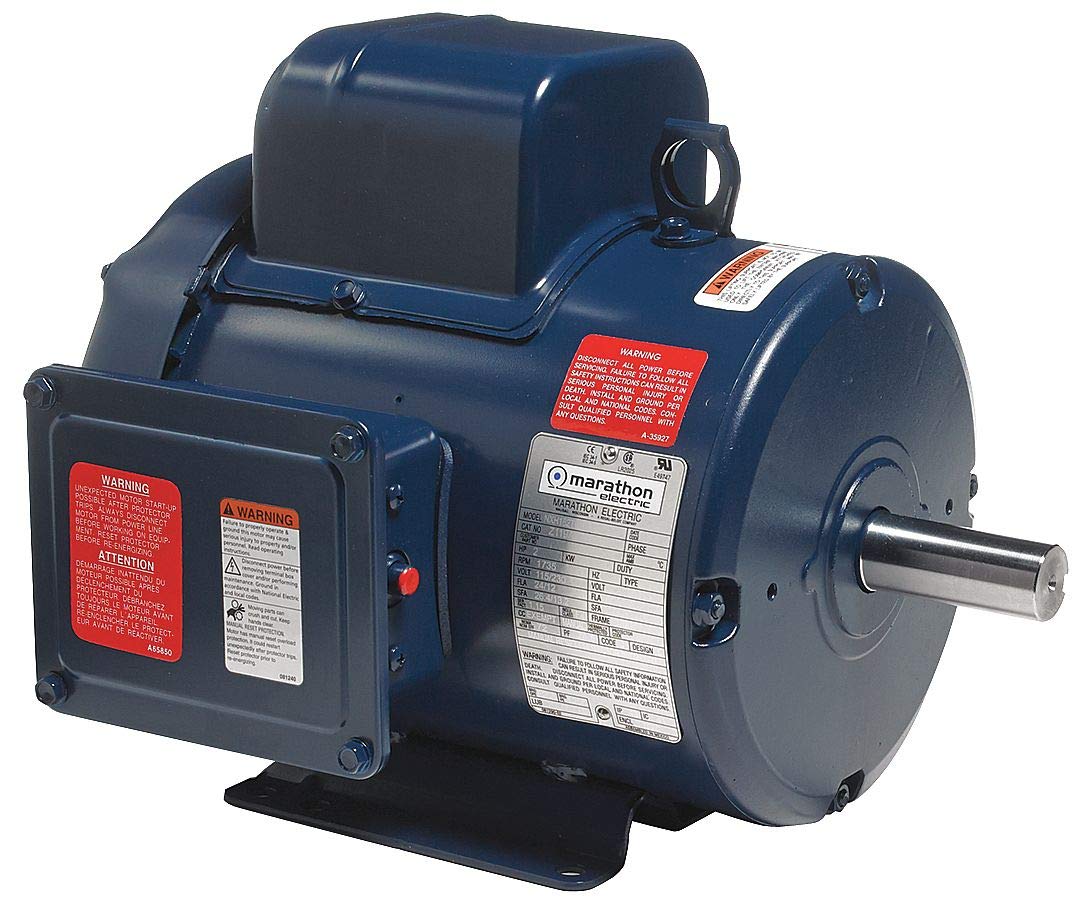

Marathon Electric MZ118 Marathon Z118 145T Frame Totally Enclosed Fan Cooled Motor 1-1/2 hp

Product Description

The Marathon Electric MZ118 is a farm duty high torque motor with a capacity of one and a half horsepower. It operates at a maximum speed of one thousand eight hundred RPM. Designed for efficiency, this single-phase motor functions at voltages of one hundred fifteen to two hundred thirty volts and includes a capacitor start and capacitor run feature.

• Single-phase operation with one-speed functionality.
• Robust design features a rolled steel frame and rigid base mounting.
• Totally enclosed fan-cooled (TEFC) design enhances motor longevity.

Product Highlights

The Marathon MZ118 motor is ideal for agricultural and industrial applications that require high torque performance.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Product Model: MZ118

Technical Specifications

• Power: 1-1/2 hp
• Speed: 1800 RPM
• Voltage: 115/208-230 VAC
• Phase: Single
• Frame Size: 145T
• Weight: 37.4 lbs
• Amperage: 15.2/8.2-7.6 A
• Enclosure Type: TEFC
