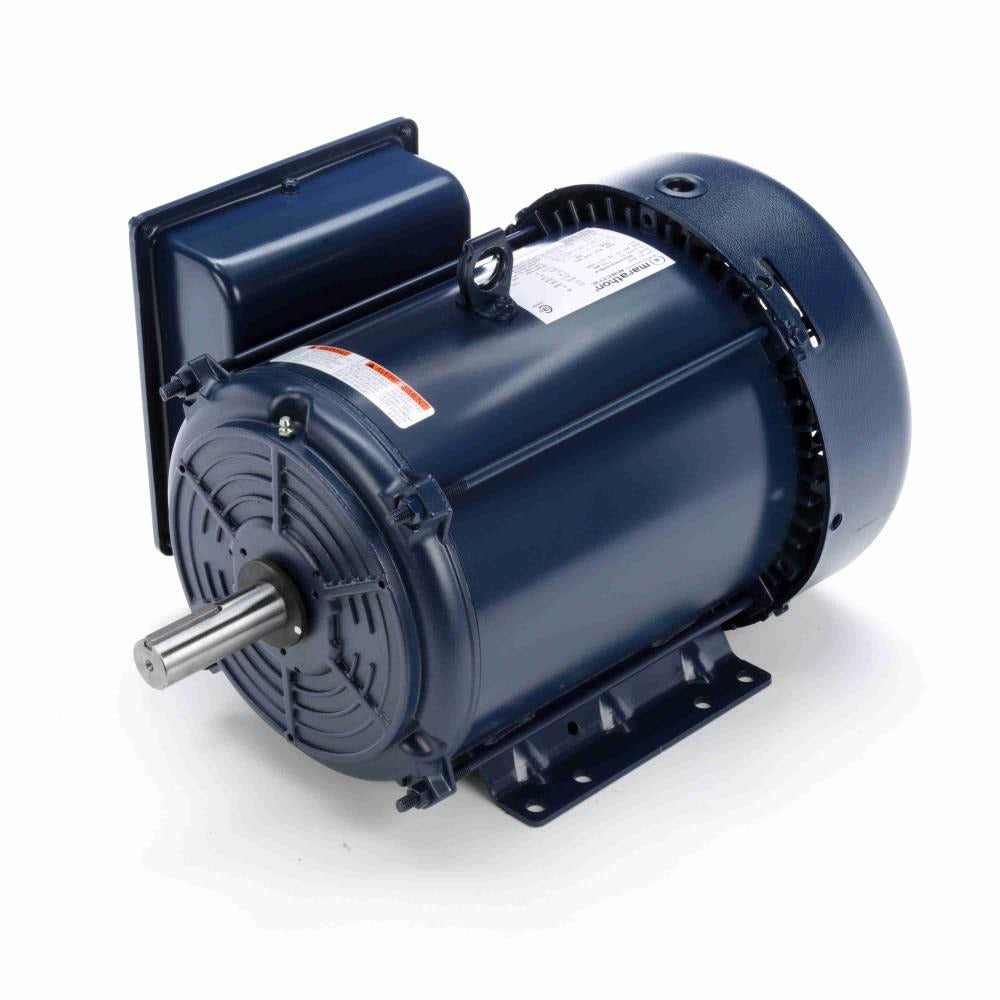

Marathon MZ117 Z117 Extra High Torque Farm Duty Motor 5 HP 230 Volts

Product Description

The Marathon MZ117 is a 5 HP extra high torque farm duty motor designed for various agricultural applications. This motor operates at a speed of one thousand seven hundred forty RPM. It features a TEFC enclosure, single-phase power operation, and a voltage of two hundred thirty. The motor is built with a rigid base and is made from rolled steel for durability.

• Extra high torque for demanding applications
• Manual overload protection for safety
• TEFC enclosure for improved protection against environmental elements

Product Highlights

Engineered for efficiency in agricultural settings, this motor combines durable construction with reliable power output.

Product Information

Standard Information

• Motor Type: Farm Duty
• Frame Size: 213TZ

Technical Specifications

• Electrical Type: Cap Start
• HP: 5
• RPM: 1740
• Voltage: 230
• Phase: Single
• Amperage: 22.6
• Enclosure: TEFC
• Rotation: REV
• Overload Protector: Manual
• Mounting Type: Rigid Base
