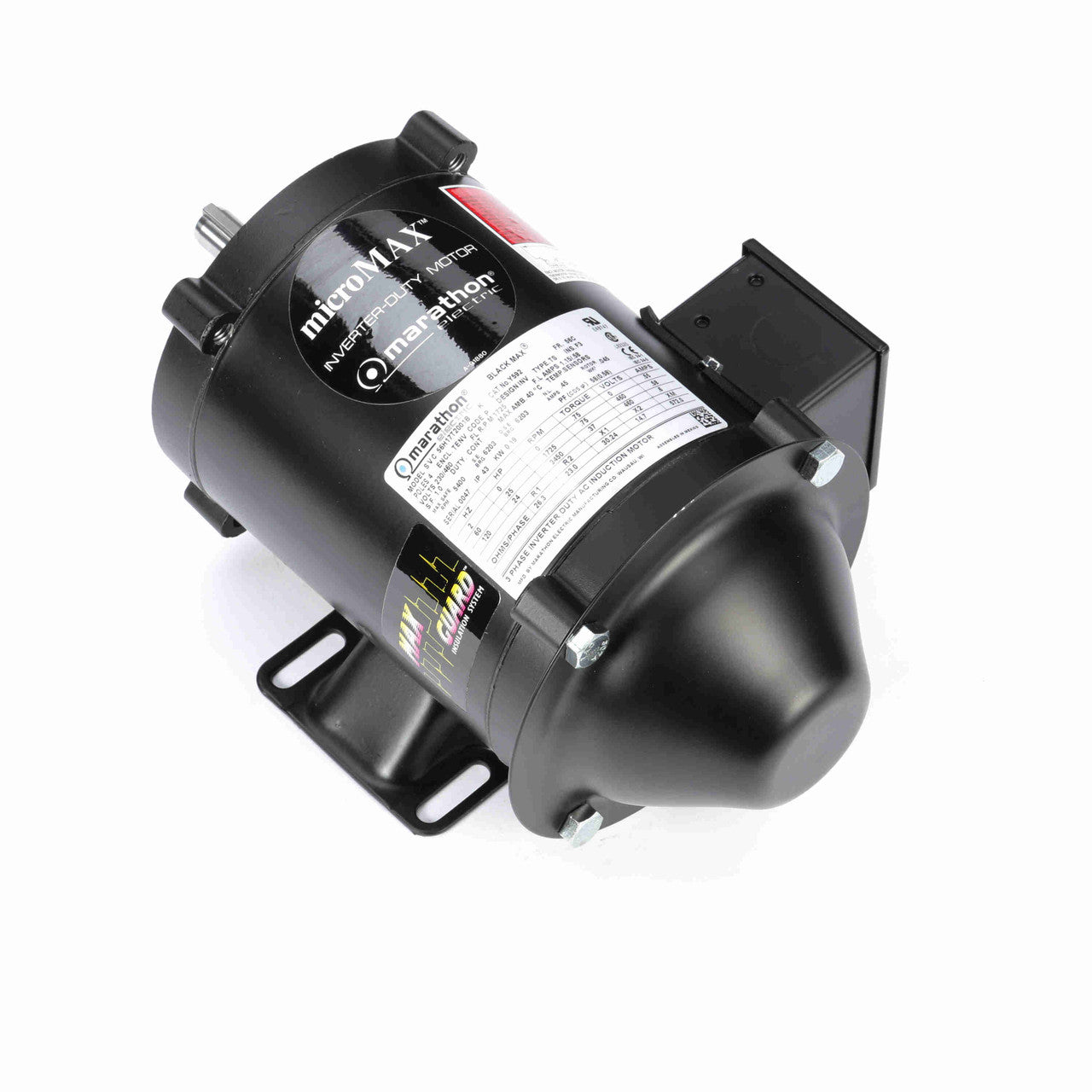

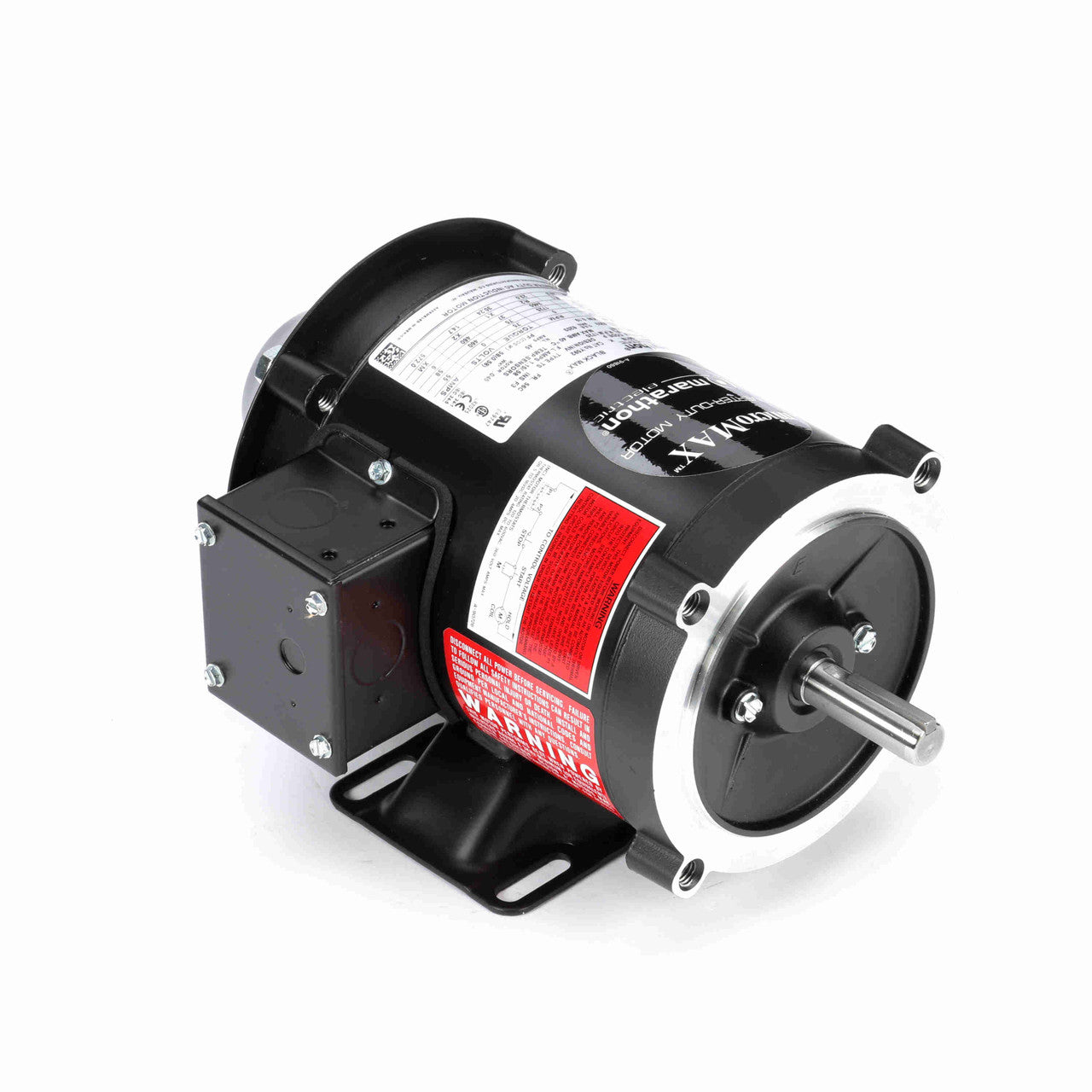

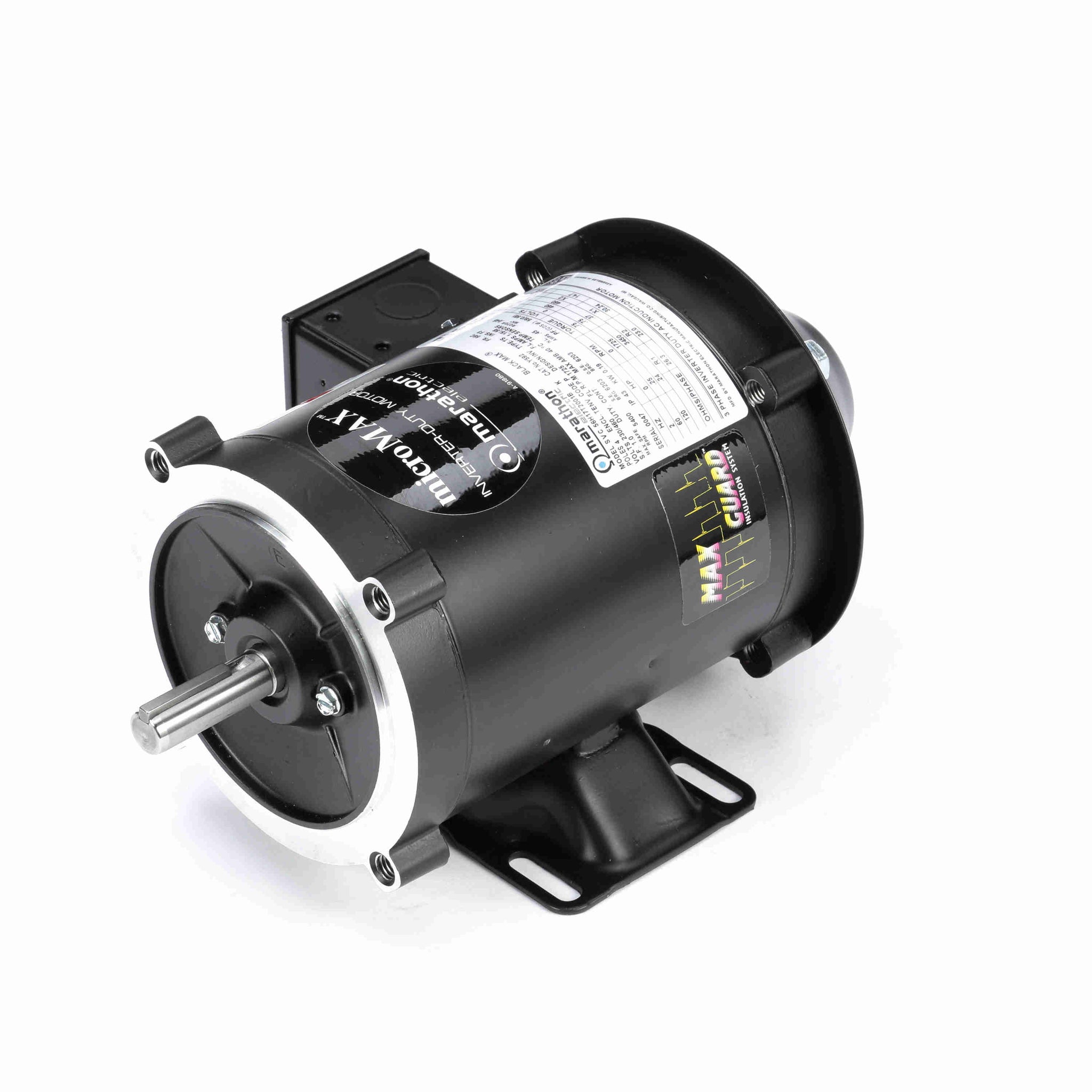

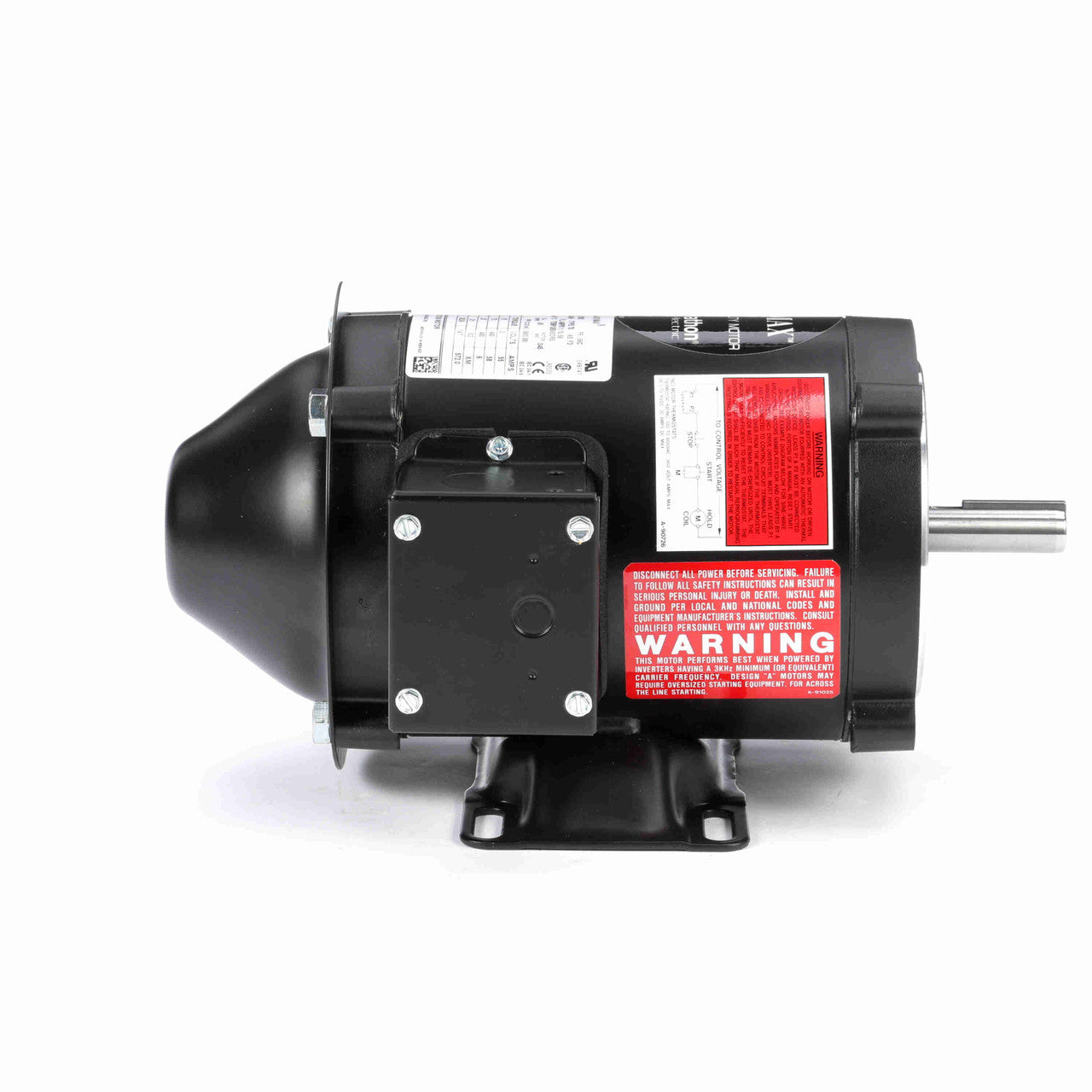

MARATHON MOTORS MY592 Vector Duty Motor

Product Description

The MARATHON MOTORS MY592 is a three-phase vector duty motor designed to meet the demands of industrial applications. This motor operates at a speed of eighteen hundred RPM and is built with a NEMA 56C frame. With its totally enclosed and non-ventilated (TENV) design, it ensures reliable operation in various environments. The motor is ideal for constant torque situations and works well with vector drives. The construction utilizes robust rolled steel and incorporates ball bearings along with a rigid base.

• Operates at eighteen hundred RPM.
• Robust construction with rolled steel.
• Features NEMA 56C frame for compatibility.

Product Highlights

This motor is suitable for applications where consistent torque and horsepower are required. Its design supports operational efficiency while being durable for challenging conditions.

Product Information

Standard Information

• Brand: Marathon
• MPN: MY592

Technical Specifications

• Electrical Type: Squirrel Cage Inverter Duty
• Phase: Three
• Horsepower: 1/4 HP
• Speed: 1800 RPM
• Voltage: 230/460 VAC
• Frame Size: 56C
• Enclosure: Totally Enclosed Non-Ventilated
• Amperage: 1.2/0.58
• Material: Rolled Steel
• Efficiency: 70
• Service Factor: 1
• Operating Temperature: 40 Celsius
• Weight: 19 lbs
• Bearing Type: Ball Bearing
• Overload Protection: TSTAT
• Mounting Type: Rigid Base
• Rotation: Reversible
• Keyed Shaft: 5/8 inch diameter x 1 7/8 inch length
• Torque: 1000:1 Constant Torque
