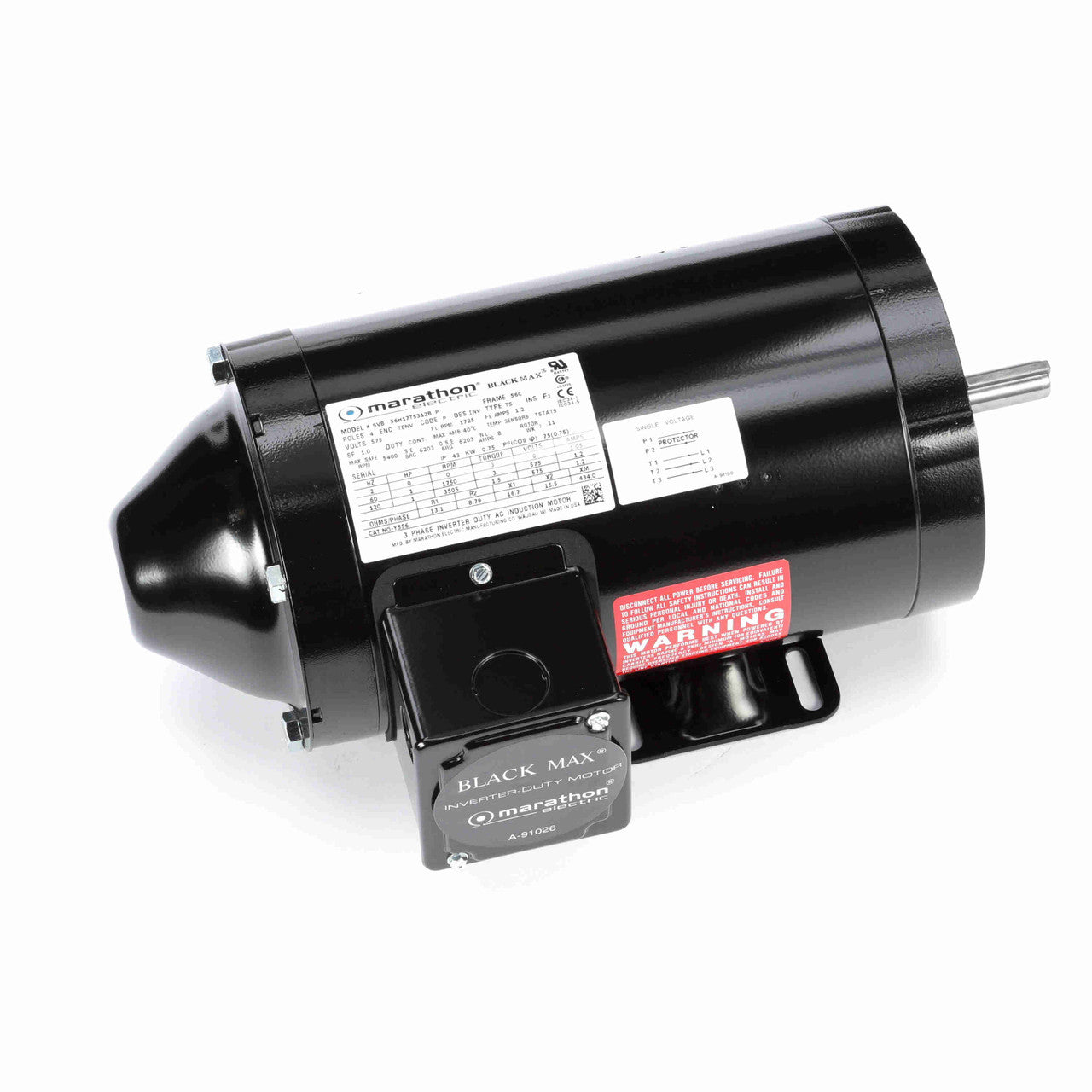

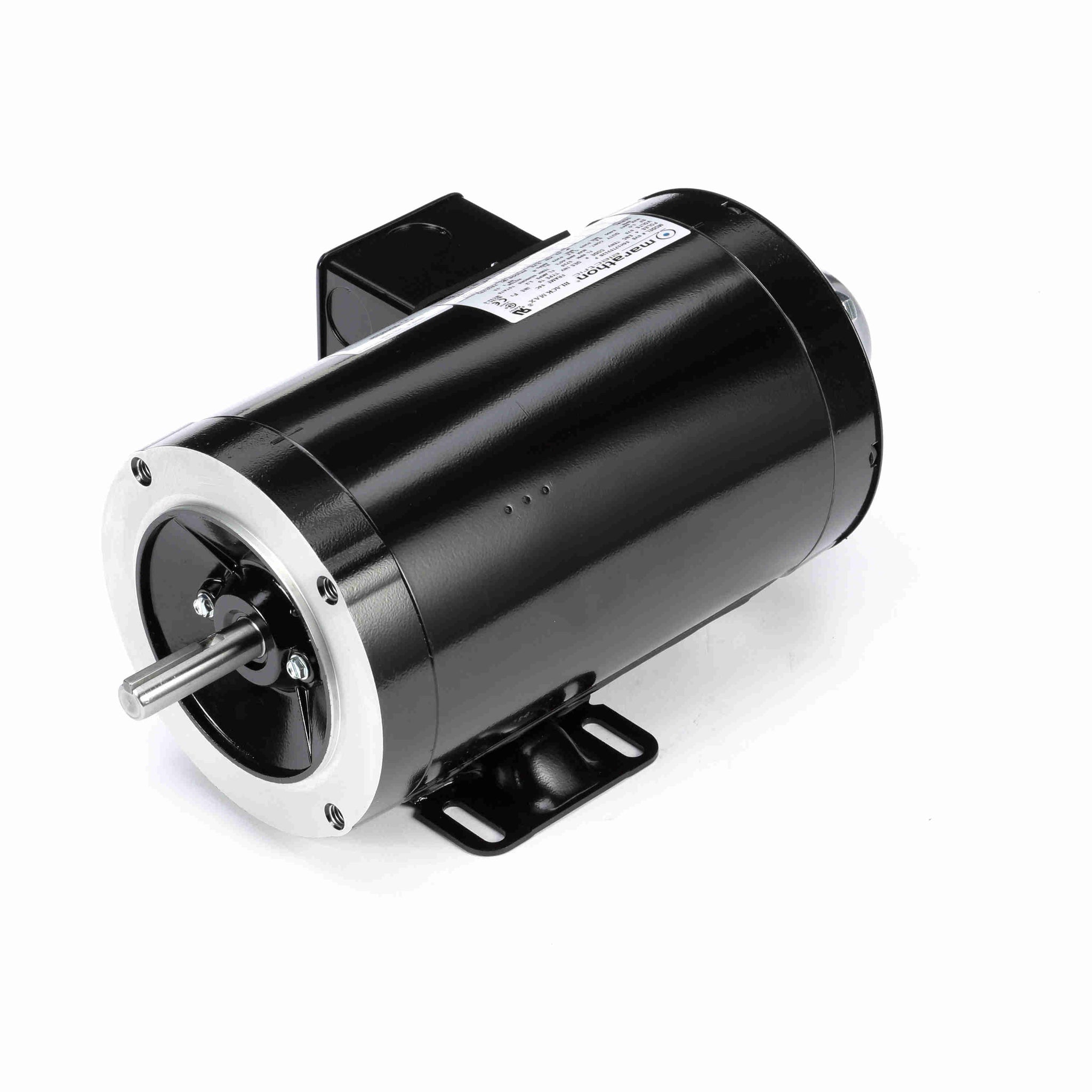

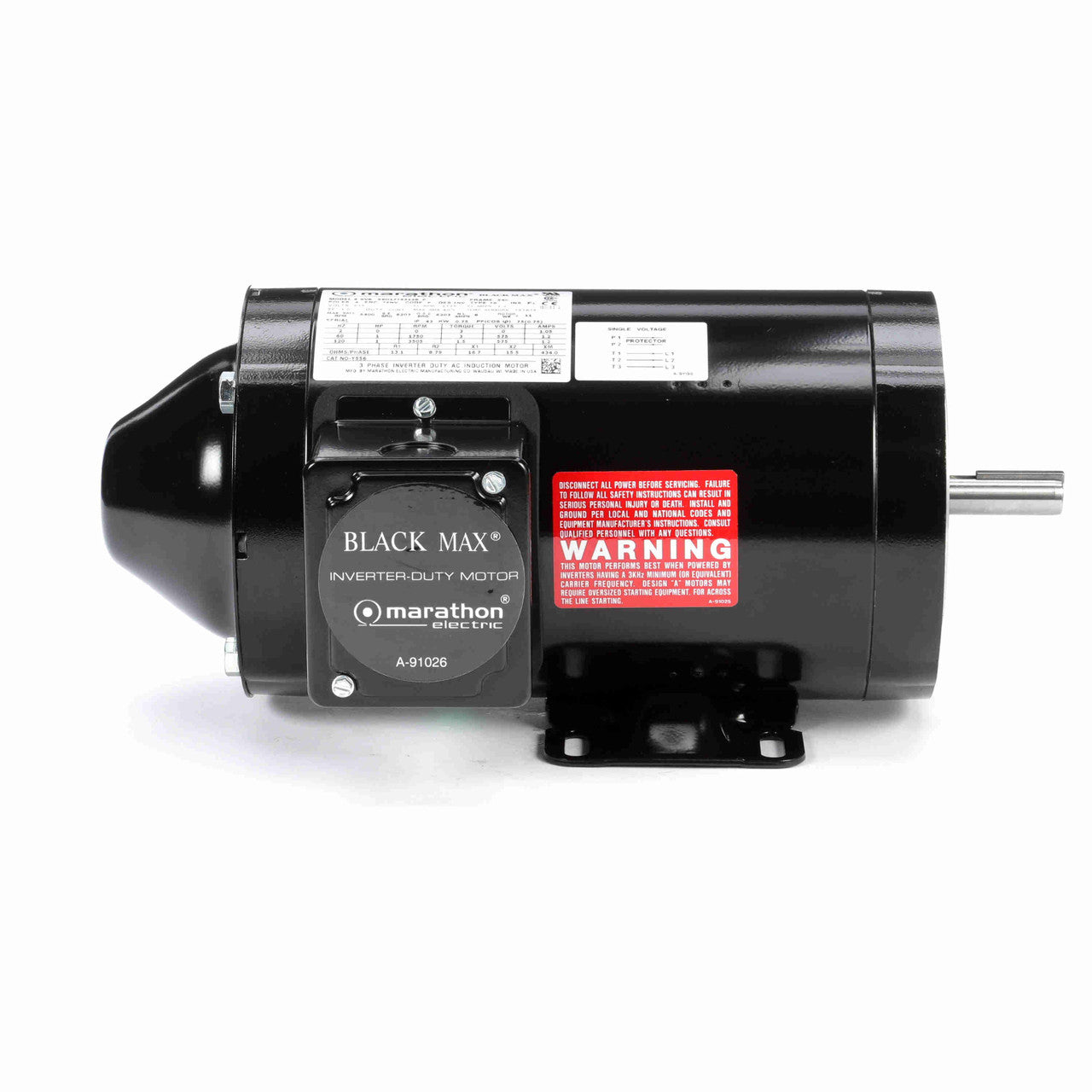

Marathon Motors MY556 Vector Duty Motor

Product Description

The Marathon Motors MY556 is a three-phase inverter duty motor designed for vector applications that require consistent torque. It features a robust rolled steel frame and a totally enclosed, non-ventilated design. This motor operates efficiently in ambient temperatures up to forty degrees Celsius.

• Electrical Type: Squirrel Cage Inverter Duty
• Horsepower: 1 HP
• Frame: 56C

Product Highlights

The MY556 is built to handle high-performance tasks while maintaining reliability and durability.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: MY556

Technical Specifications

• Class: Vector Duty Motor
• Phase: Three
• Enclosure: Totally Enclosed Non Ventilated
• Output Current: 1.2 Amps
• Voltage: 575V
• RPM: 1800
• Material: Rolled Steel
• Efficiency: 84
• Service Factor: 1
• Operating Temperature: 40°C
• Frame Prefix: 75
• Weight: 39 lbs
• Insulation System: Max Guard Class F
• Operation: Constant torque at zero base speed with vector drive
• Encoder Brake Provisions: Included on the opposite drive end
