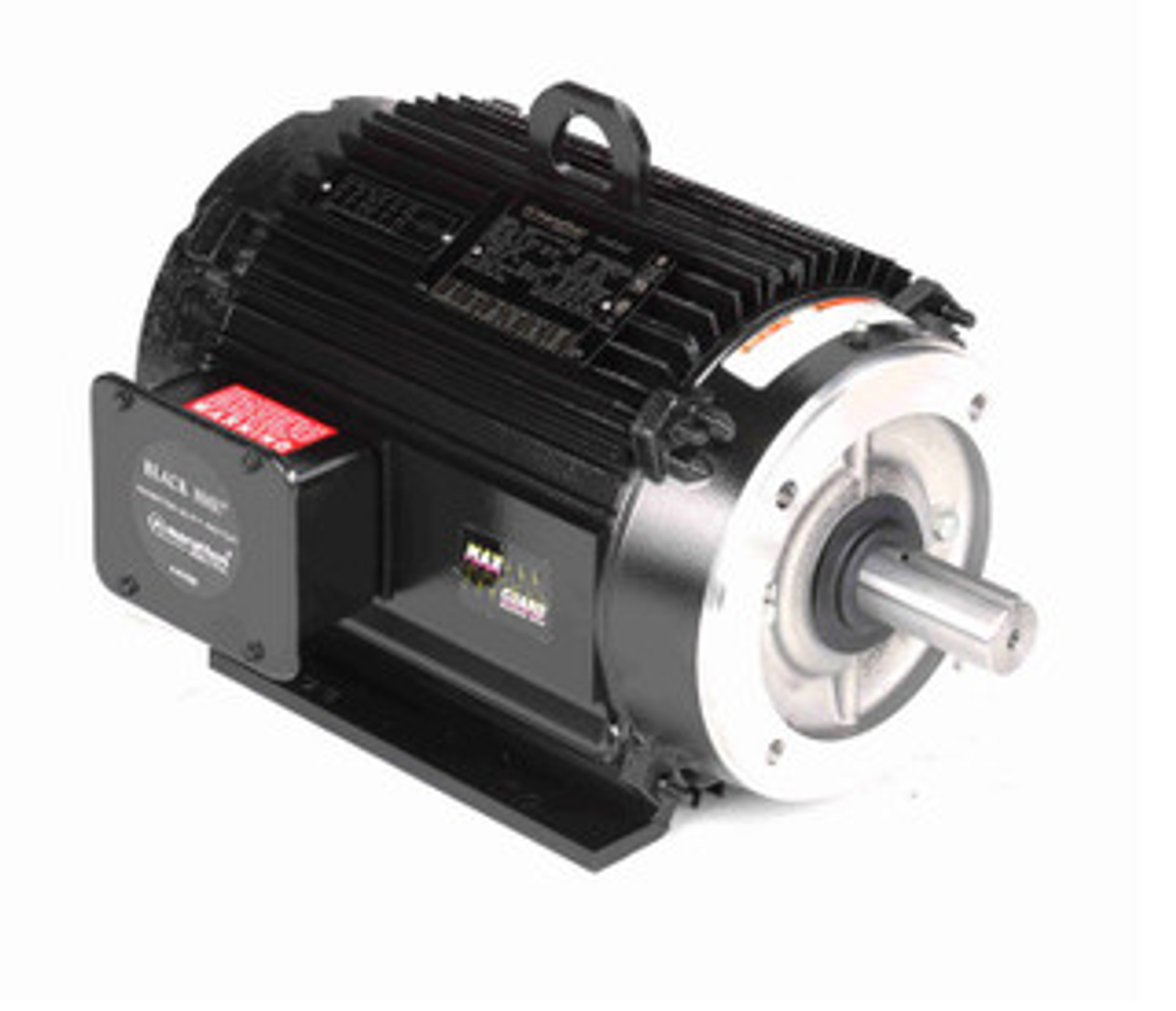

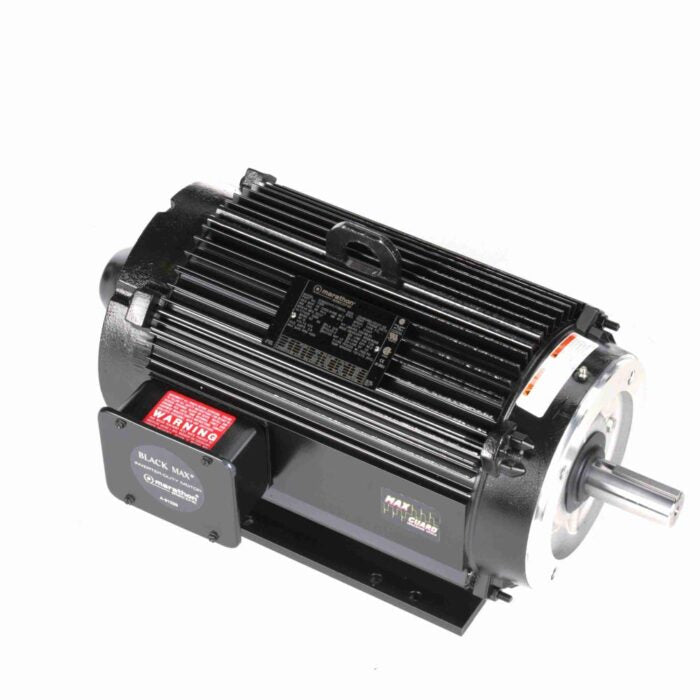

MARATHON MOTORS MY544 Vector Duty Motor 5 HP

Product Description

The MARATHON MOTORS MY544 is a vector duty motor engineered for inverter applications. This three-phase motor delivers constant torque across a 1000:1 speed range, making it suitable for various industrial tasks. Common use cases include material handling, operation of machine tools, and metal processing. Designed with a totally enclosed non-ventilated (TENV) enclosure, it supports continuous duty in environments with ambient temperatures up to forty degrees Celsius. Key features include built-in thermostats and a removable rigid base.

• Capable of constant torque operation at zero base speed for vector drive.
• Incorporates a Max Guard Class F insulation system.
• Equipped with encoder brake provisions at the opposite drive end.

Product Highlights

This motor is reliable for demanding industrial environments and excels in applications requiring stable speed control.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MY544

Technical Specifications

• Electrical Type: Three Phase
• Voltage: 230/460 V
• Frame: 215TC
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Material: Aluminum
• Horsepower: 5 HP
• Rotation: Reversible
• RPM: 1165
• Number of Speeds: 1
• Service Factor: 1.0
• Overload Protection: None
• Amperage: 15.4/7.7 A
• Keyed Shaft Diameter: 1 3/8 inches x 3 3/8 inches
• Weight: 146 lbs
