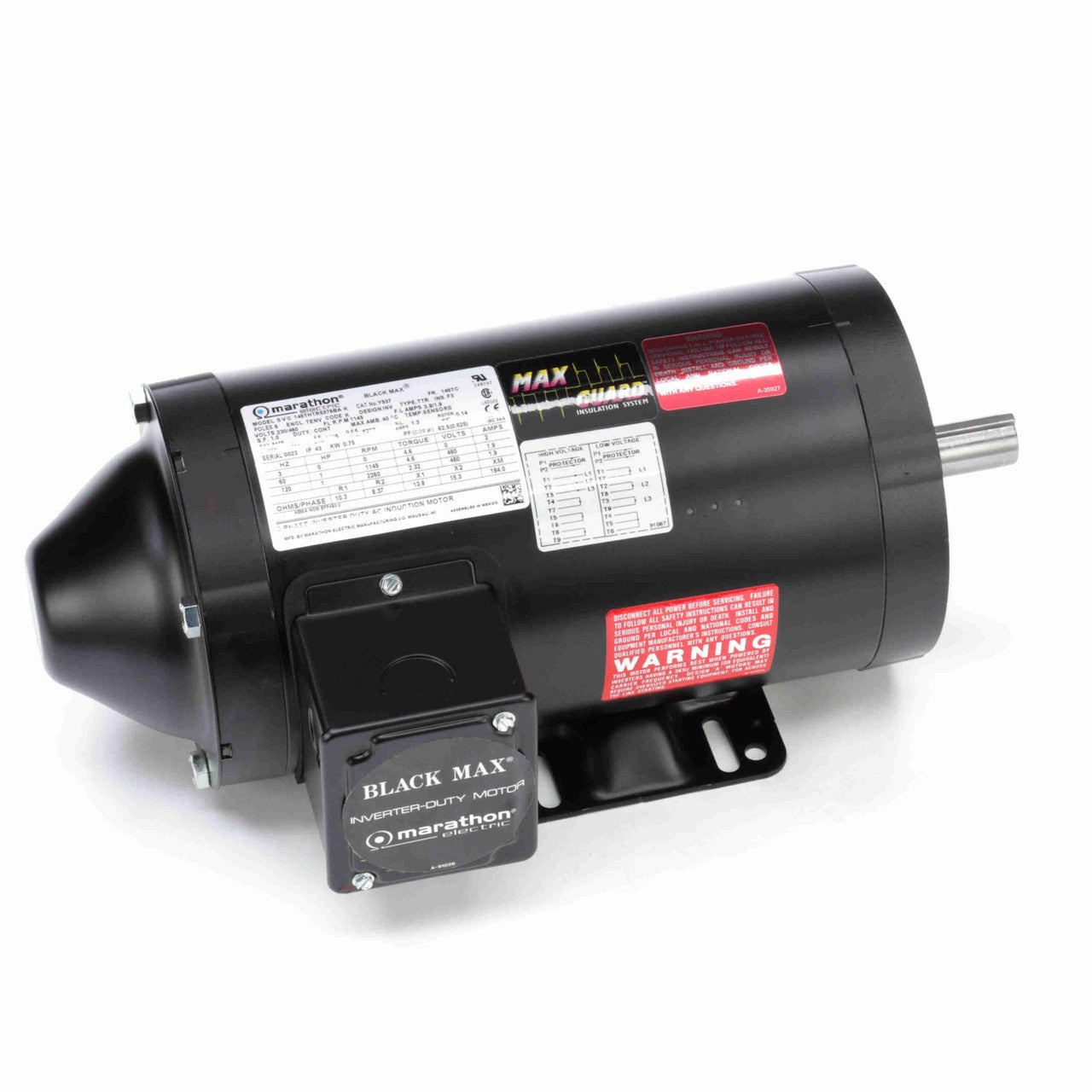

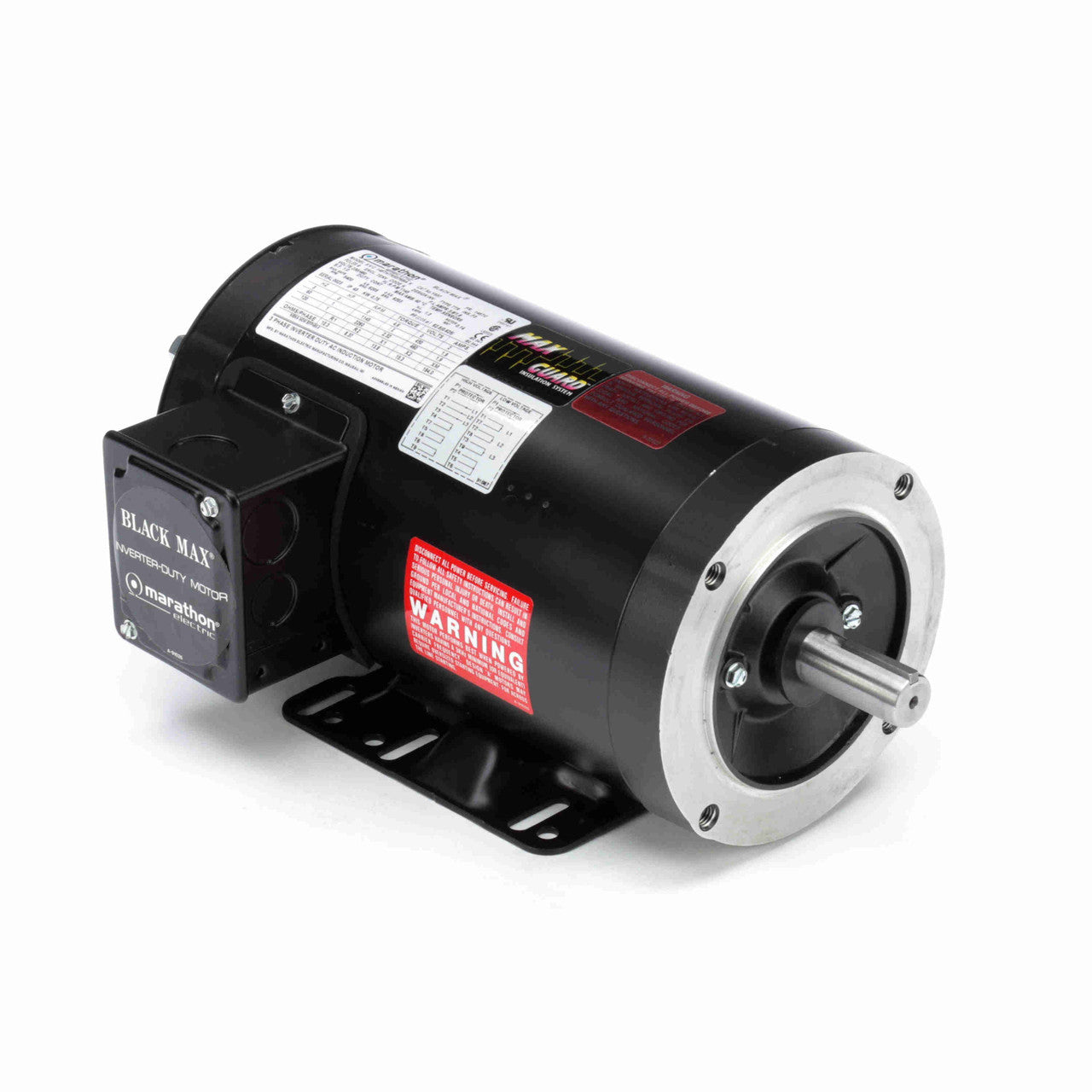

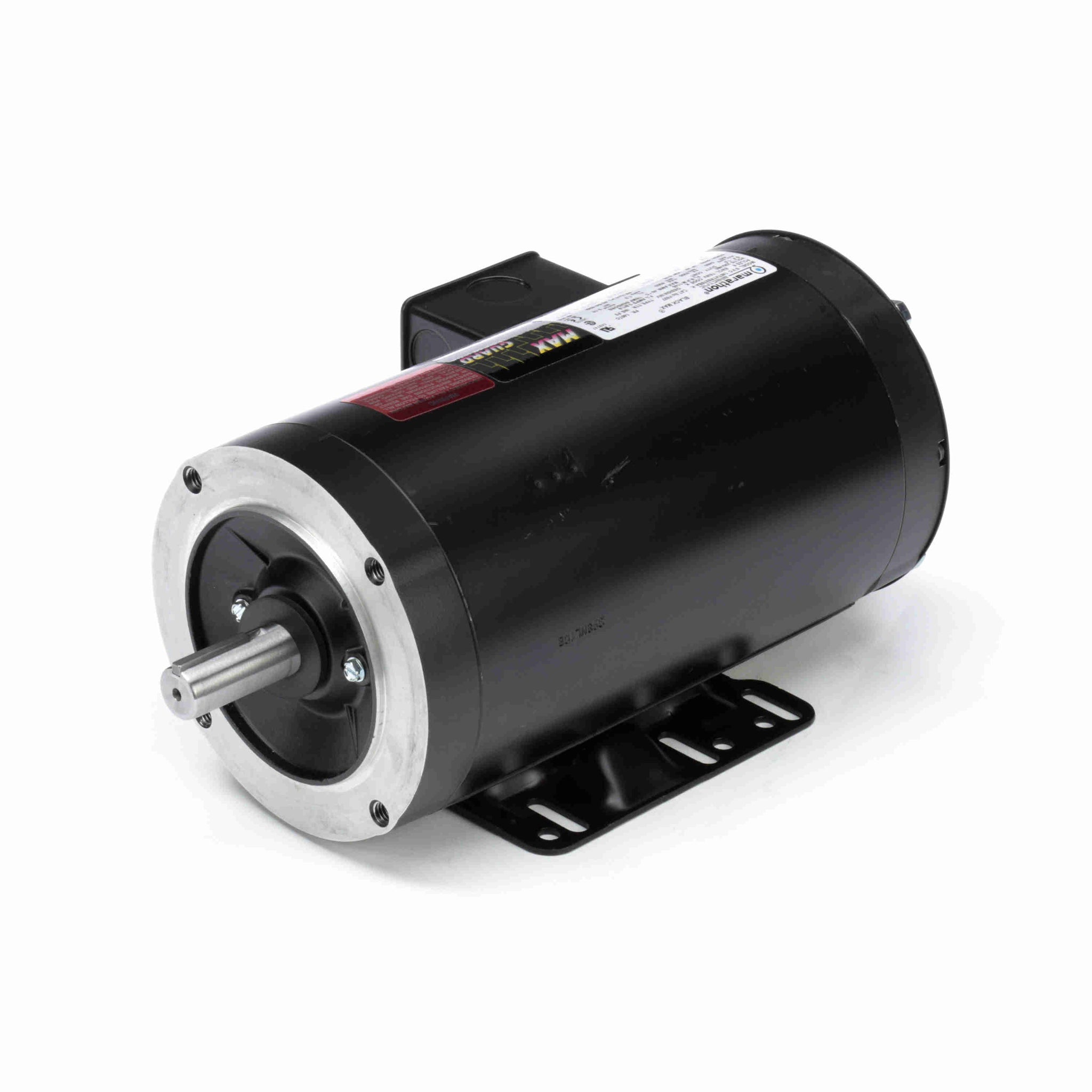

Marathon Motors MY537 Vector Duty Motor 1 HP 145TC Replacement MPN MY537

Product Description

The Marathon Motors MY537 is a vector duty motor suitable for industrial applications that require constant torque. This motor is capable of functioning optimally with inverter or vector setups that need a speed range of up to 1000:1 for constant torque applications. It has a durable steel frame and features a MAX GUARD Class F insulation system, ensuring reliability and efficiency.

• Designed for vector applications requiring constant torque.
• Features a totally enclosed non-ventilated (TENV) design.
• Includes a removable rigid base for footless mounting (F1 configuration).

Product Highlights

This motor provides robust performance in various applications where consistent torque is crucial. Its design facilitates flexibility in mounting and usage.

Product Information

Standard Information

• Manufacturer Part Number: MY537
• Horsepower: 1 HP

Technical Specifications

• RPM: 1200 RPM
• Input Voltage: 230/460 V
• Frame Size: 145TC
• Phase: Three
• Enclosure: Totally Enclosed Non Ventilated
• Output Current: 3.8/1.9 Amps
• Insulation Class: Max Guard Class F
• Operating Temperature: 40
• Mounting Type: Bolt-on, removable base or footless (F1 configuration)
• Construction Material: Rolled steel
• Service Factor: 1.0
• Torque: 1000:1 Constant Torque
