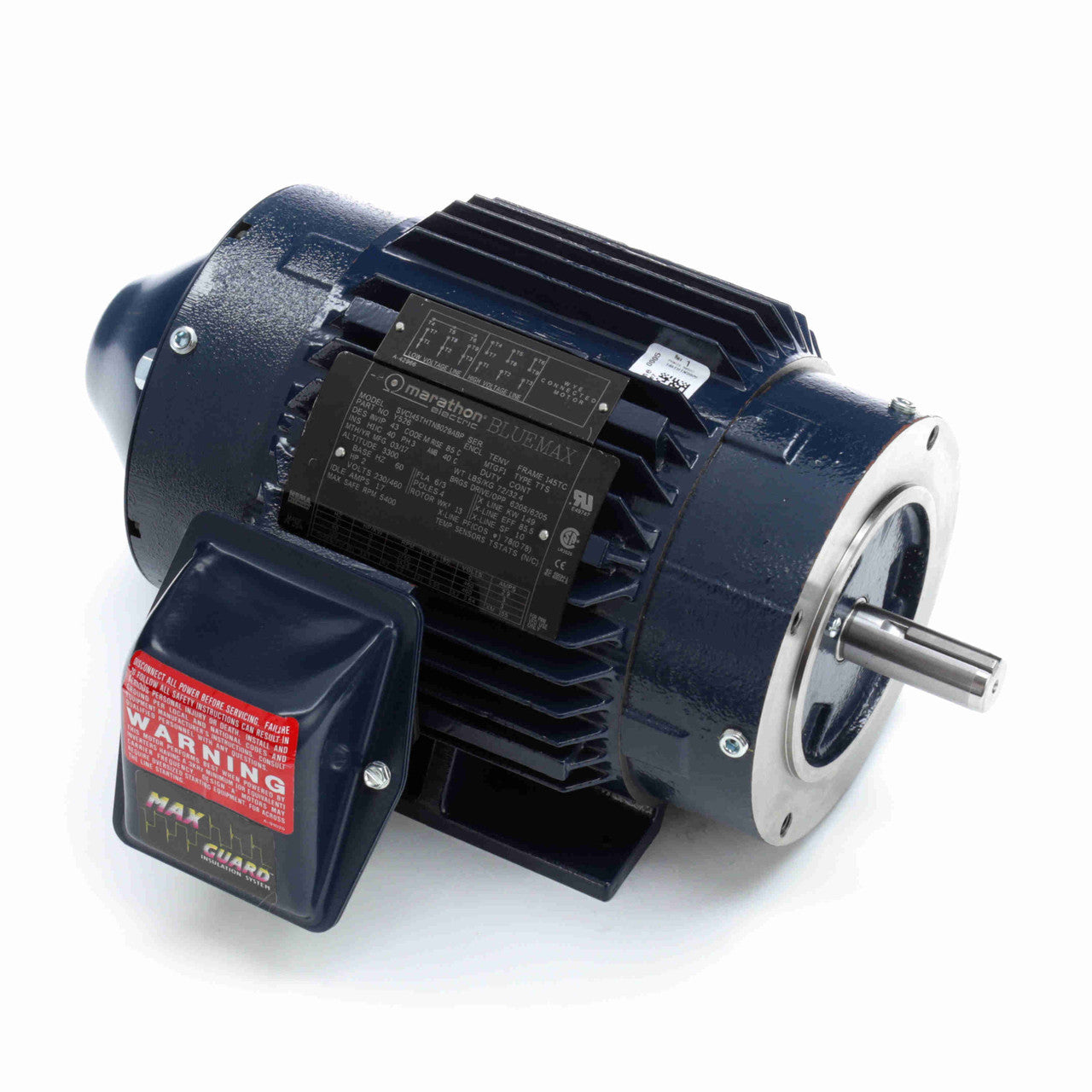

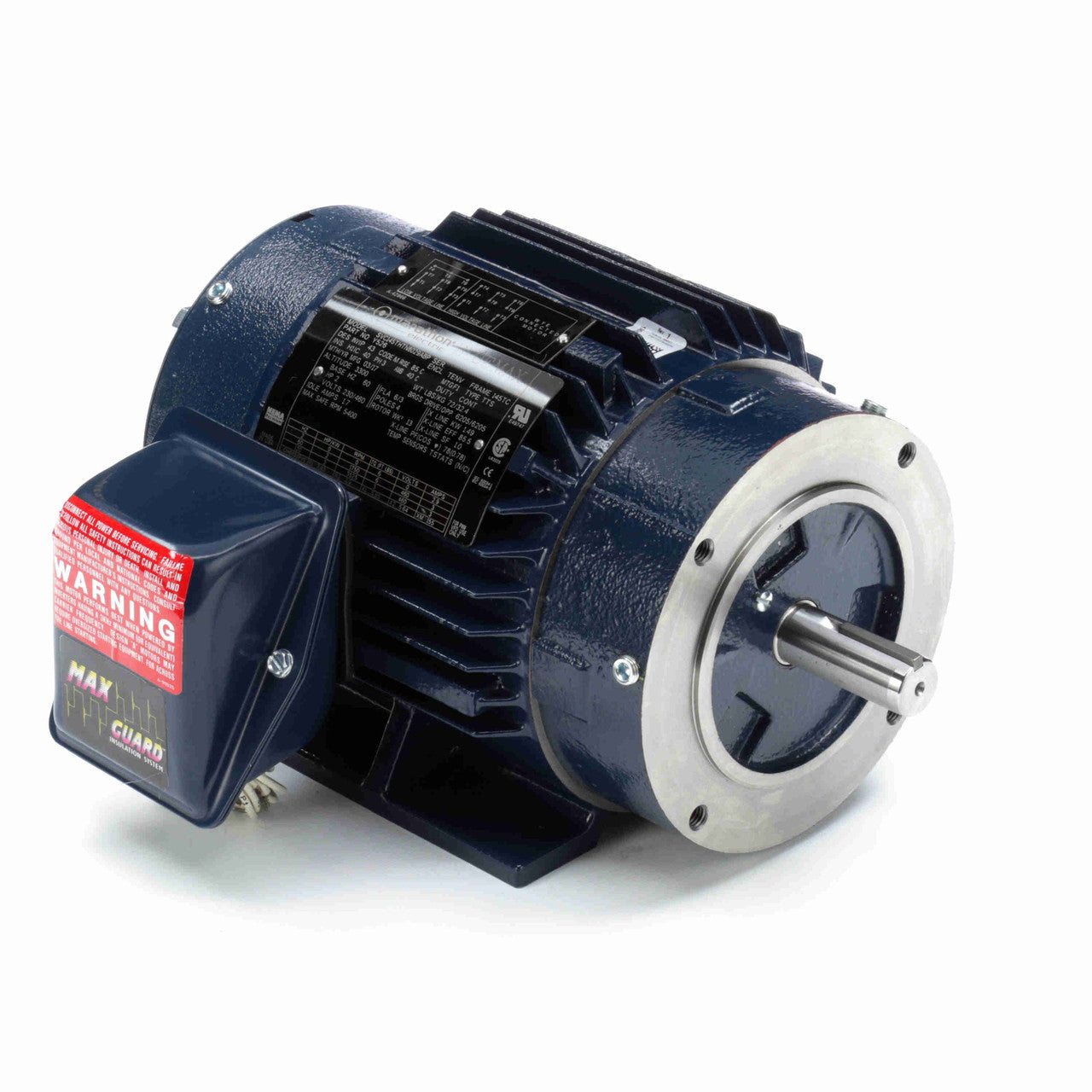

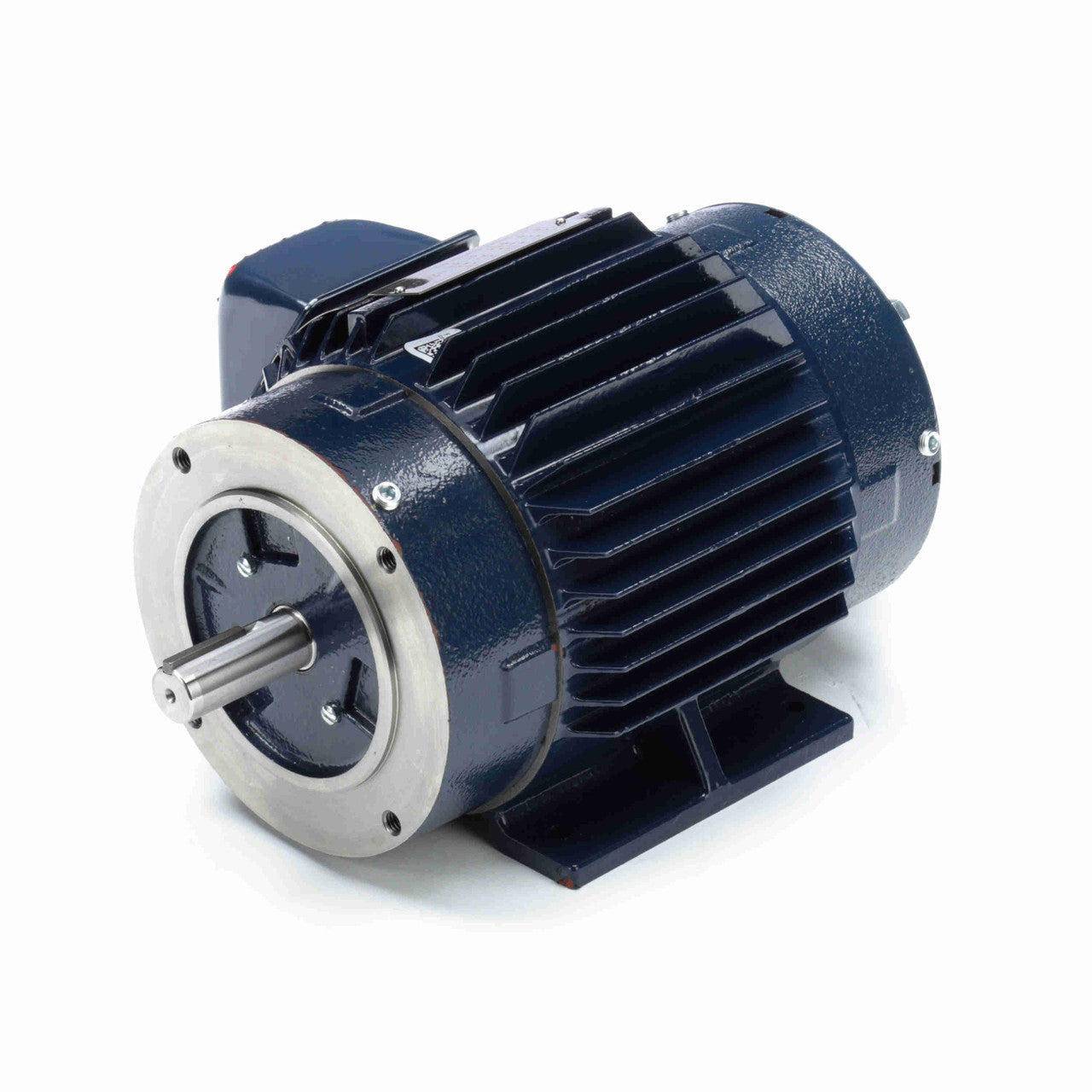

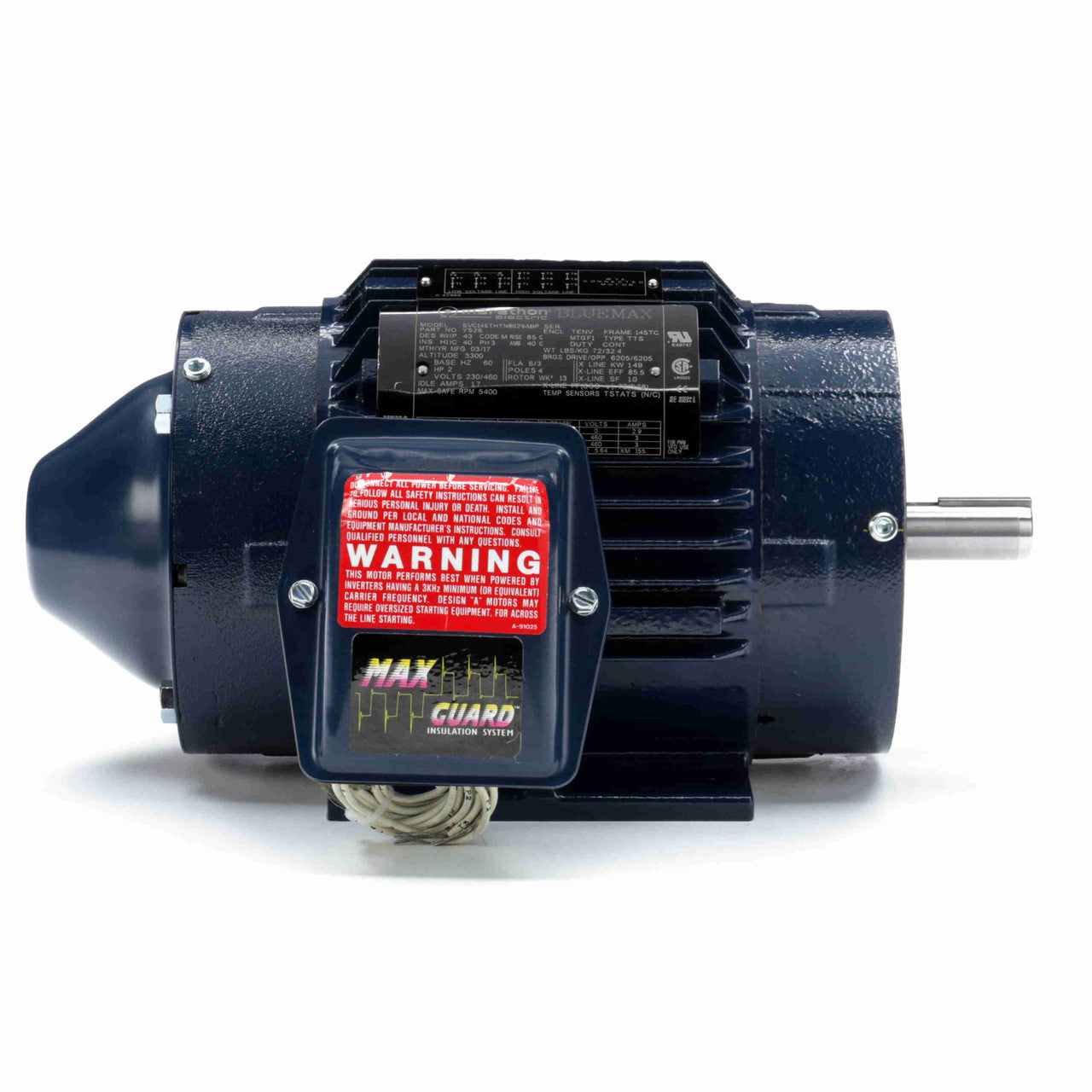

Marathon Motors MY526 Vector Duty Motor 2 HP 1800 RPM

Product Description

The Marathon Motors MY526 is a two horsepower vector duty motor with an operational speed of eighteen hundred RPM. It is engineered for inverter or vector applications, capable of maintaining a constant torque speed range of up to two thousand to one. This motor fits many applications such as material handling, machine tools, conveyors, and other industrial machinery, especially in rugged conditions where cast iron construction is necessary.

• Features MAX GUARD Class H insulation system.
• Constant torque operation from zero to base speed on vector drive.
• Optimized for operation with IGBT inverters.

Product Highlights

This motor features a rigid base and is UL Recognized, CSA Certified, and CE Marked, ensuring reliability and safety. It is backed by a three-year warranty for peace of mind.

Product Information

Standard Information

• HP: 2
• RPM: 1800

Technical Specifications

• Volts: 230/460
• Frame: 145TC
• Amps: 6.0/3.0
• Enclosure: TENV - Totally Enclosed Non-Ventilated
• Base: Rigid
