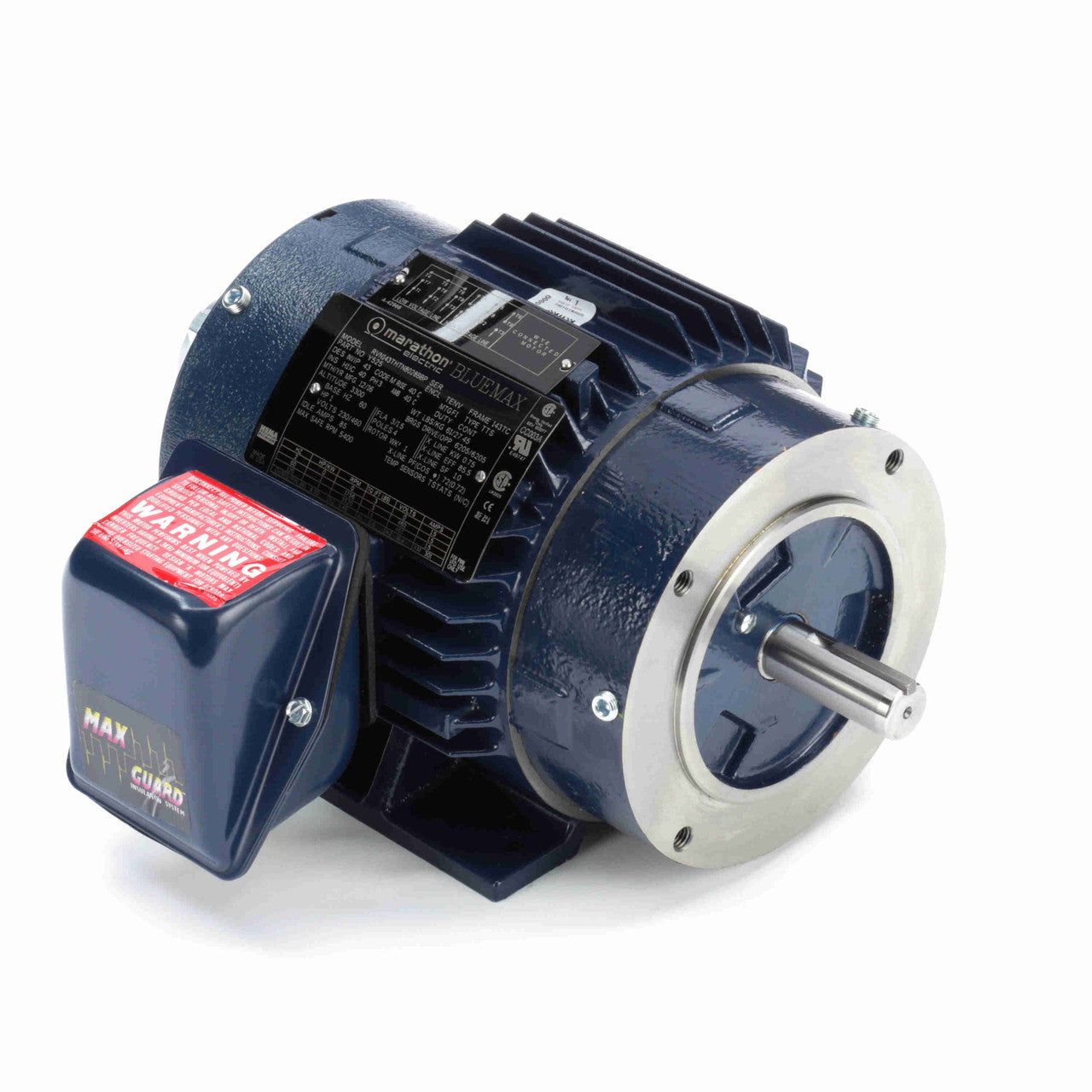

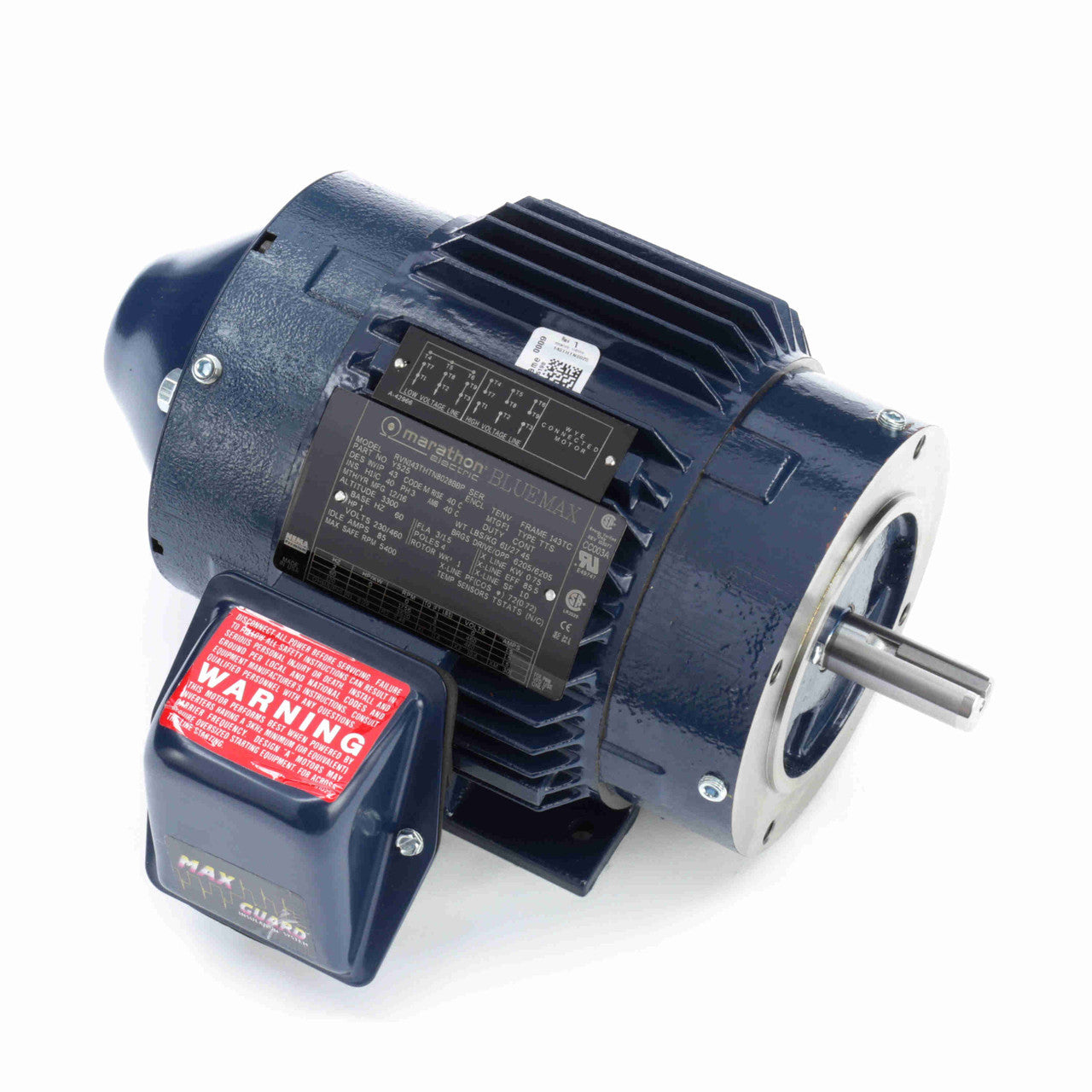

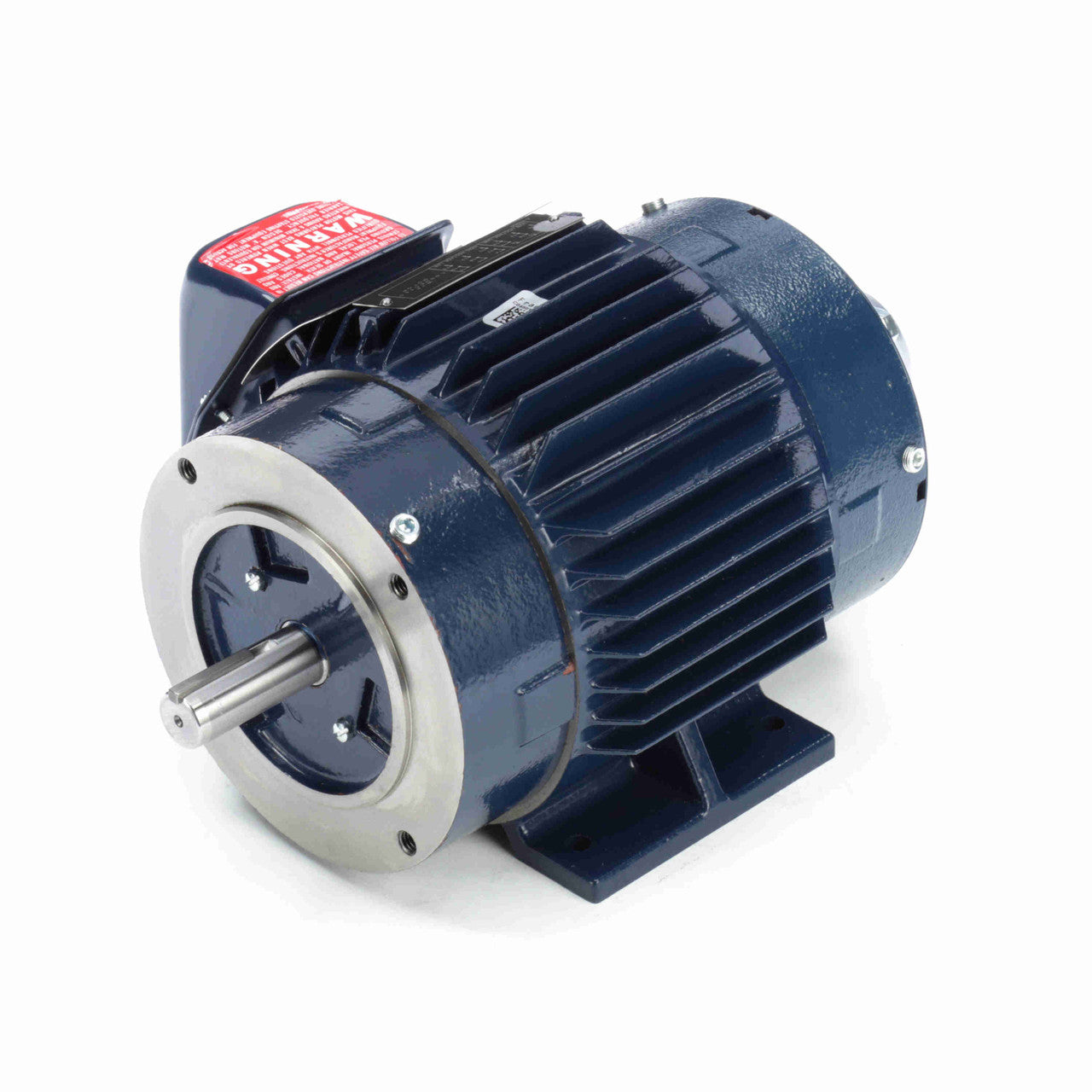

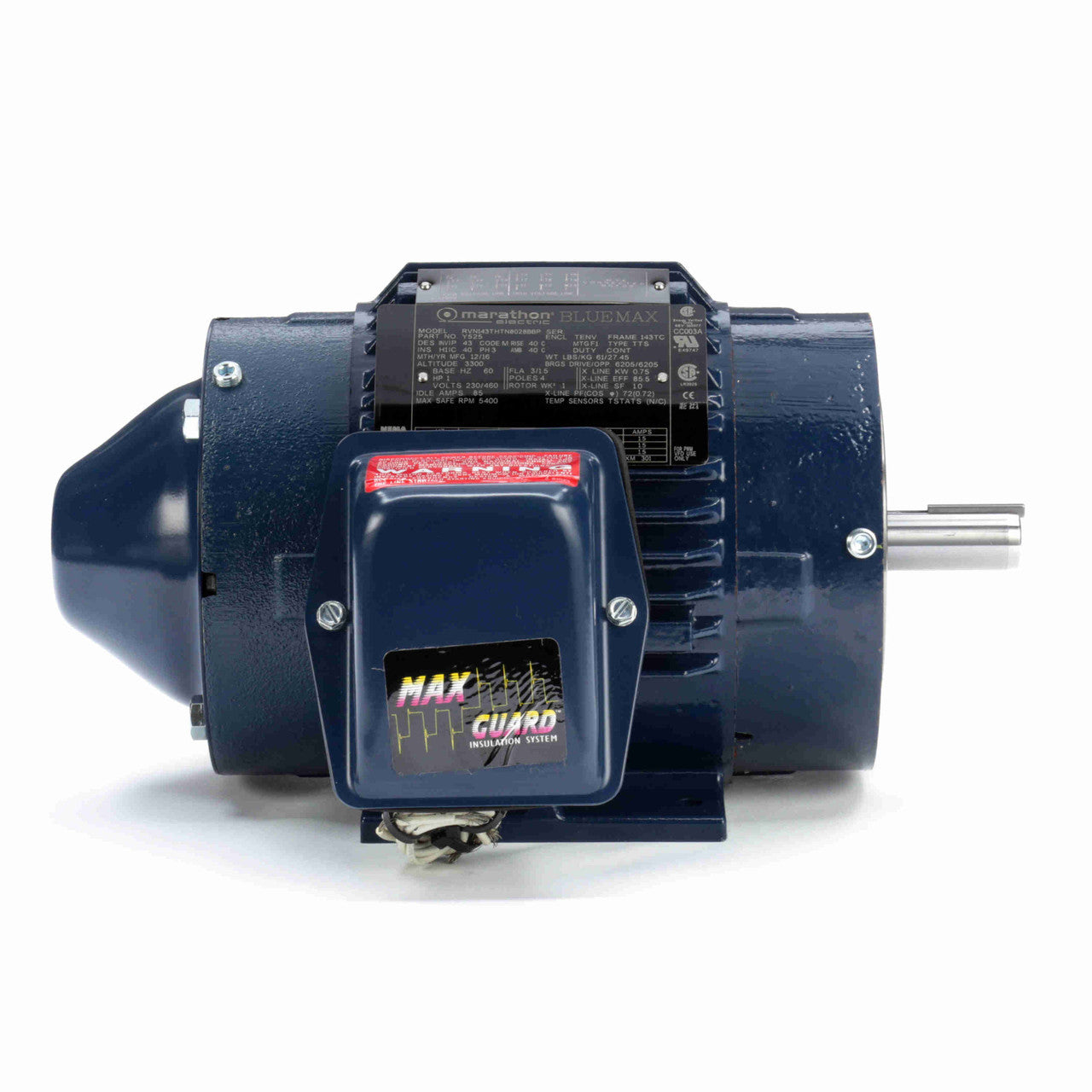

Marathon Motors MY525 Vector Duty Motor

Product Description

The Marathon Motors MY525 is a vector duty motor suitable for applications that require constant torque. This motor works well with inverters and operates within a 2000:1 constant torque speed range. Its common uses include operations in material handling, machine tools, conveyors, crane and hoist systems, metal processing, test stands, pumps, compressors, and textile processes.

• Designed for inverter or vector applications.
• Features a rigid base and C-face.
• Built to withstand dusty or dirty environments.

Product Highlights

The robust construction of this motor allows it to effectively handle various industrial applications while ensuring reliability and durability.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MY525

Technical Specifications

• Horsepower: 1 HP
• Speed: 1800 RPM
• Input Voltage: 230/460 Volts
• Frame Size: 143TC
• Output Current: 3.0/1.5 Amps
• NEMA Design: B
• Enclosure Type: TENV
• Constant Torque: 2000:1
• Mounting Type: Rigid Base
• Overload Protection: Thermostat
• Material: Cast Iron
• Rotation: Reversible
• Service Factor: 1.0
• Operating Temperature: 40 degrees C ambient temperature
• Phase Type: 1
