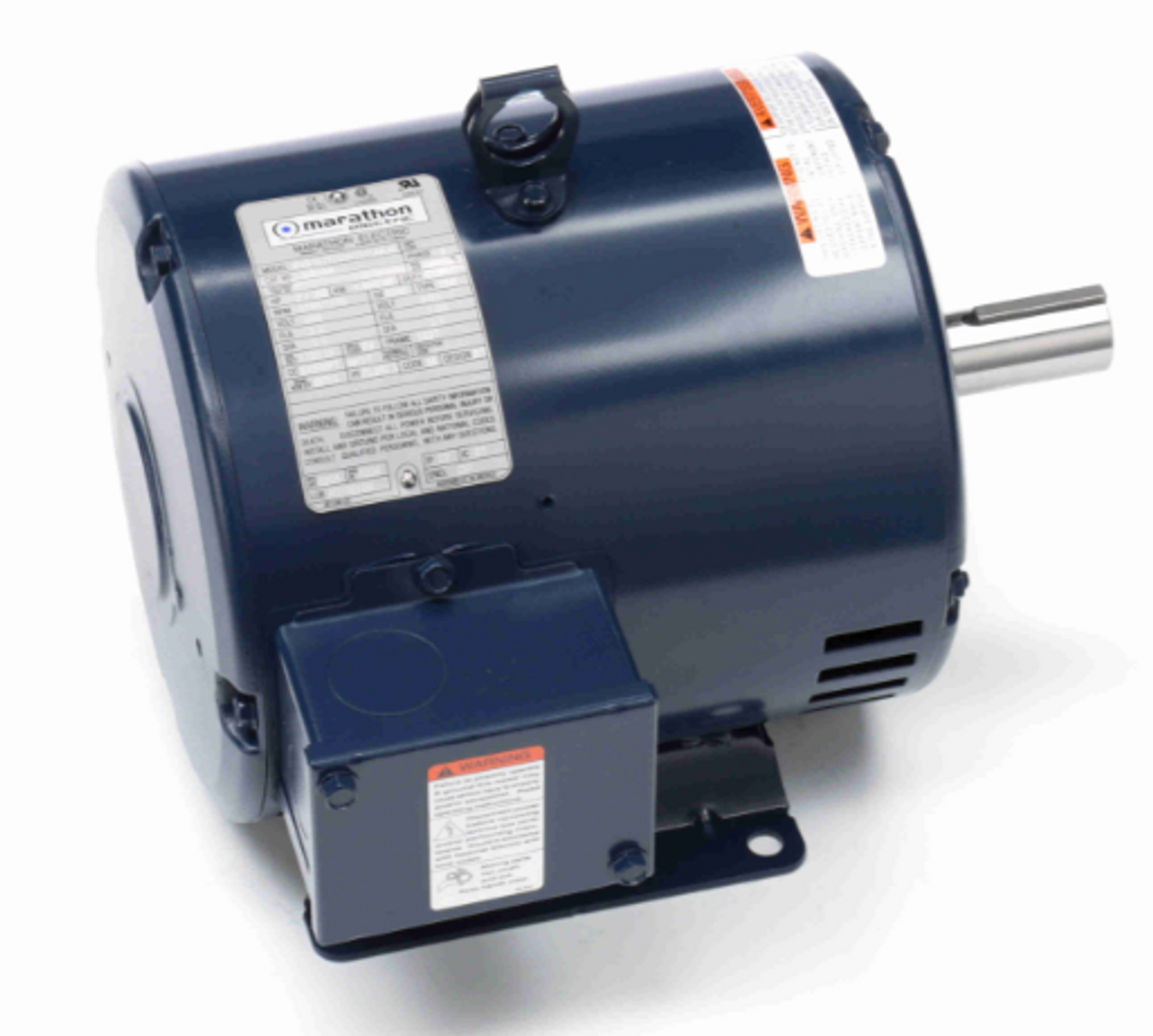

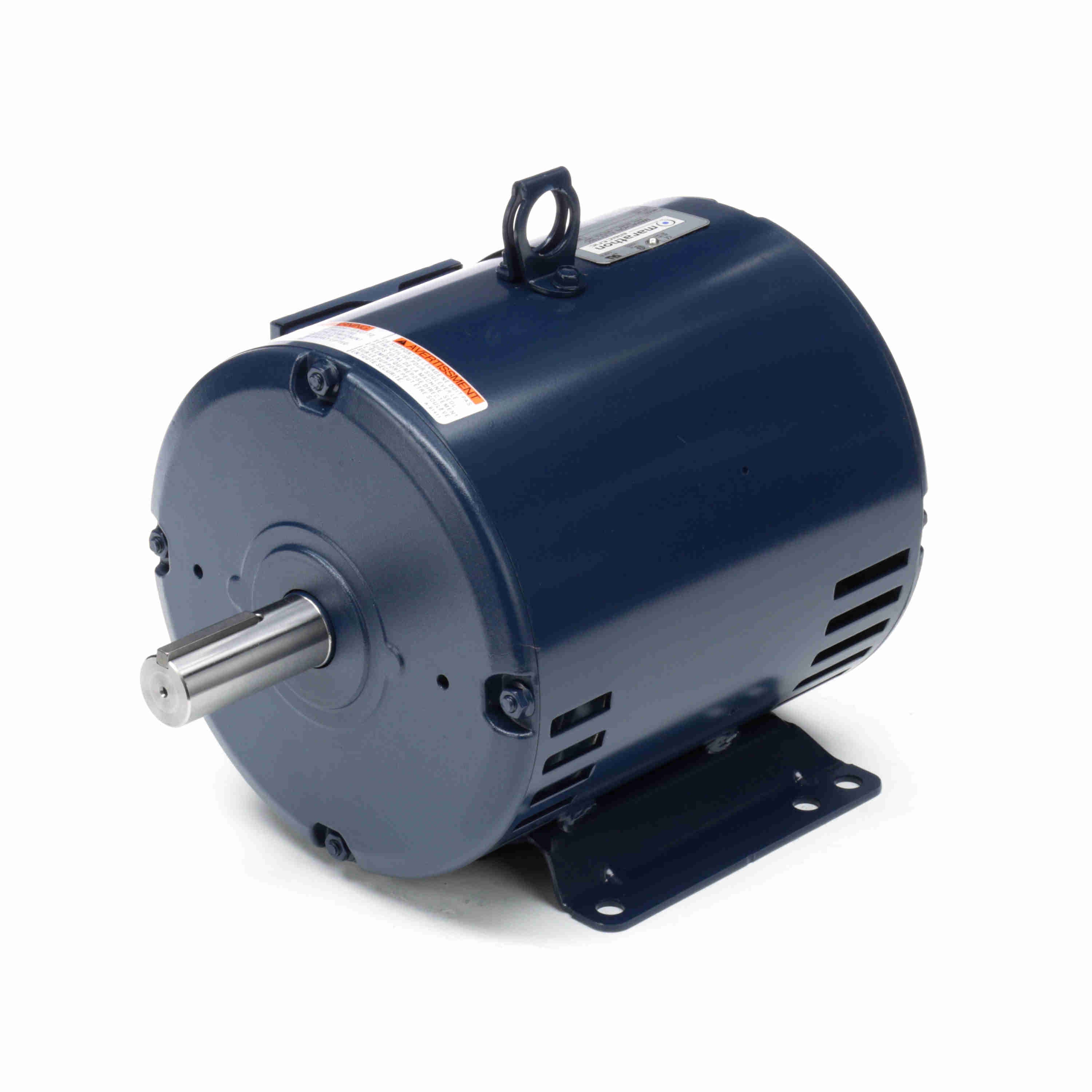

Marathon Motors MY409A Multi-Speed General Purpose Motor

Product Description

The Marathon Motors MY409A is a three-phase, two-winding multi-speed general purpose motor. It is designed for variable torque applications and features a squirrel cage induction run. This motor has an open drip-proof enclosure and a rolled steel frame. It is suitable for commercial and industrial uses such as fans, blowers, pumps, and machinery.

• Electrical Type: Squirrel Cage Induction Run
• Enclosure: Open Drip Proof
• Phase: Three

Product Highlights

The MY409A stands out with its robust design and efficiency, making it ideal for various applications in demanding environments.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: MY409A

Technical Specifications

• HP: 2
• HP (at lower speed): 0.9
• Amperage: 3.2, 1.95
• Input Voltage: 460
• RPM: 1765
• RPM (at lower speed): 1800, 1200
• Frame Size: 182T
• Material: Rolled Steel
• Efficiency: 80
• Service Factor: 1.15
• Ambient Temperature: 40
• Weight: 60 lbs
• Rotation: Reversible
