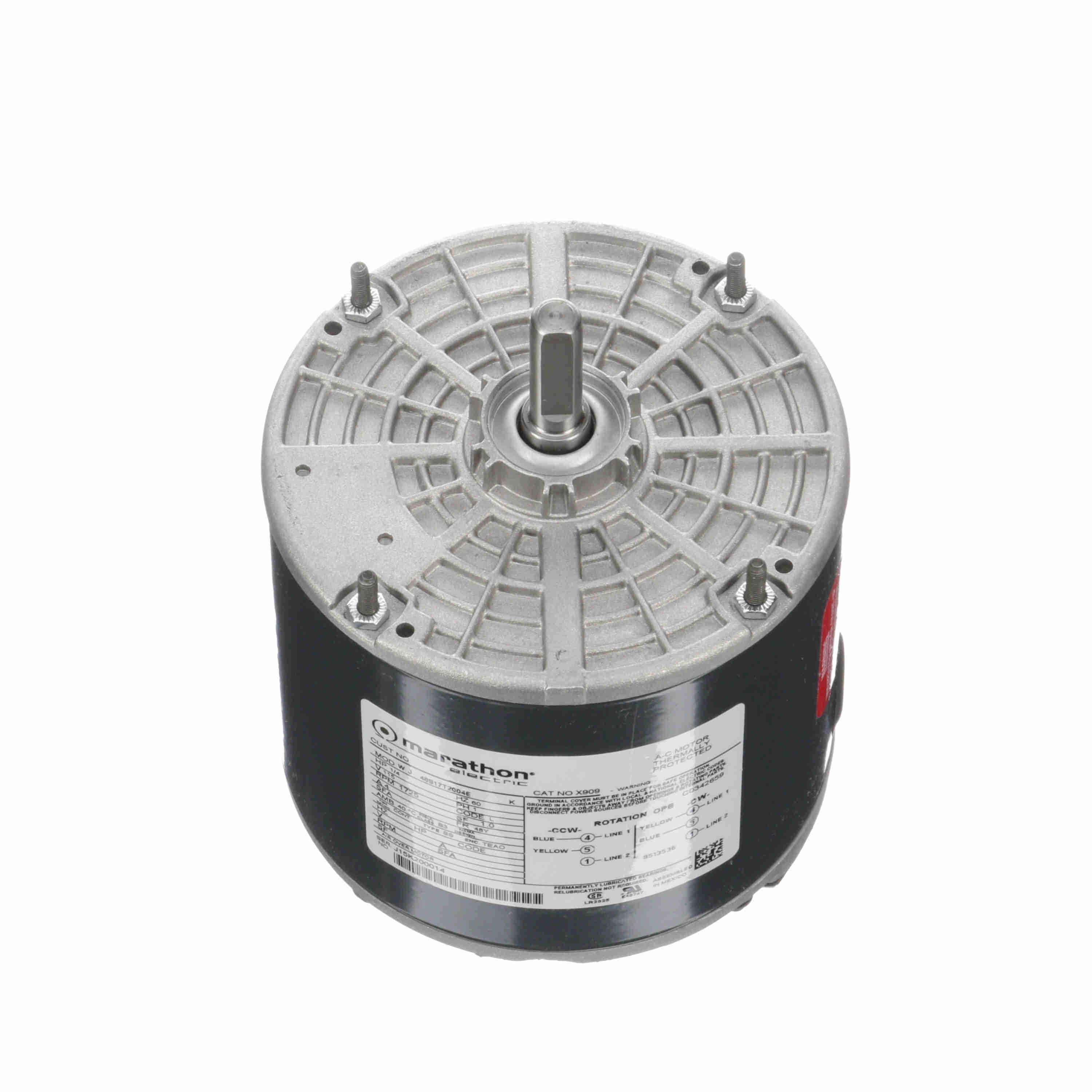

Marathon MX909 General Purpose Farm Duty Motor 1/4 HP 115V TEAO

Product Description

The Marathon MX909 is a general-purpose farm duty motor designed for reliable performance in various agricultural applications. This motor operates at one-fourth horsepower and has a rotational speed of one thousand seven hundred twenty-five RPM. It features a split-phase electrical type, making it suitable for single-phase power supply.

• Electrical type: Split phase for efficient operation
• Voltage: Operates at one hundred fifteen volts
• Enclosure type: Totally enclosed, air-over (TEAO) for improved cooling and durability

Product Highlights

This motor is built with rolled steel housing, ensuring long durability, and is equipped with manual overload protection. Its mounting options include a belly band or extended studs, providing flexibility in installation.

Product Information

Standard Information

• Frame Size: 48Y
• Diameter: 5.6 inches

Technical Specifications

• Motor Type: General purpose farm duty
• Horsepower: 1/4 HP
• Rotation: Reversible
• Amperage: 4.0 A
• Mounting Type: Belly band / Extended studs
• Weight: Not specified
