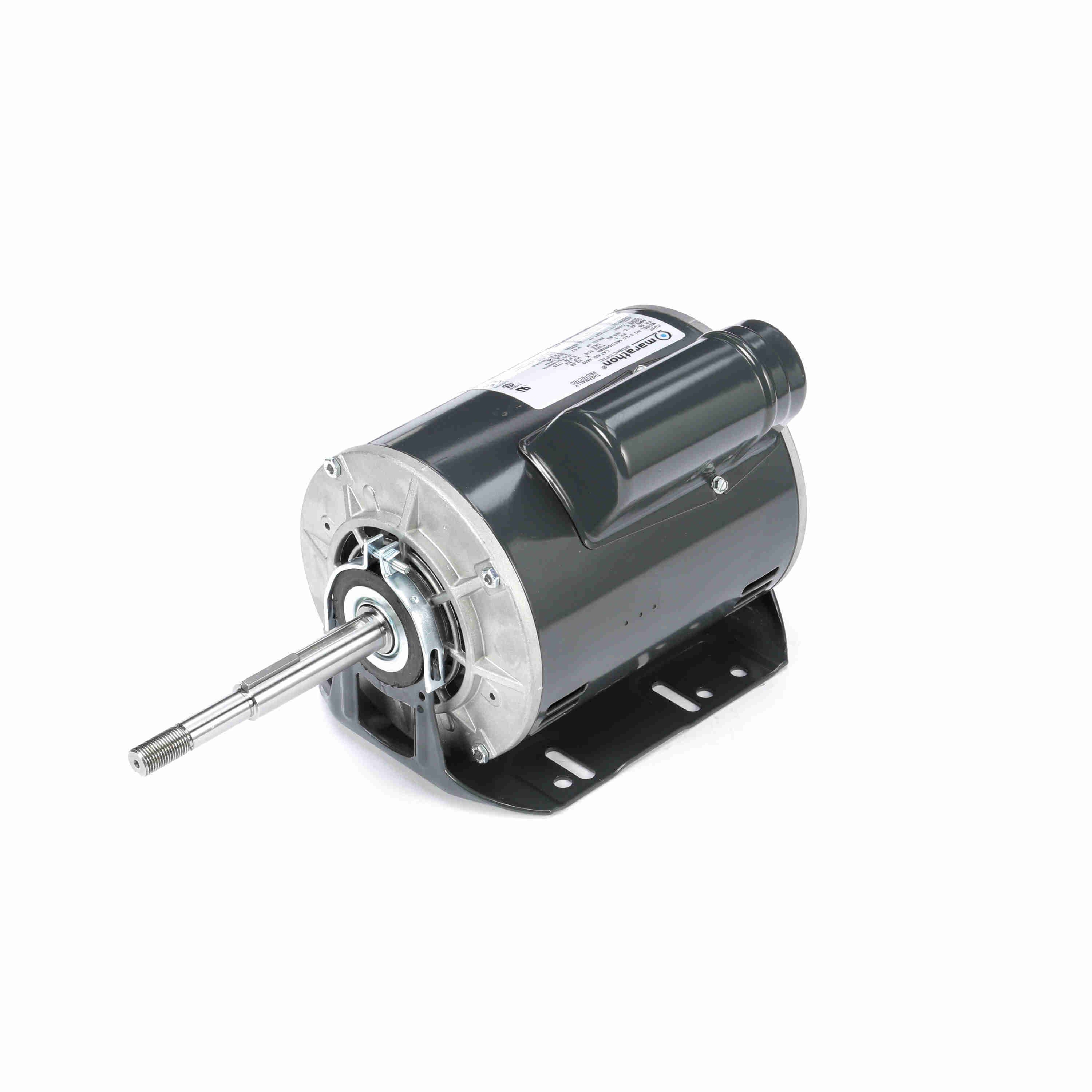

Marathon MX603 OEM Replacement Motor 3/4 hp 1725 RPM 115/208-230V

Product Description

The Marathon MX603 OEM replacement motor is a single-phase motor designed to run at 3/4 horsepower (hp) with a maximum speed of 1725 RPM. It is built to operate at 115/208-230 volts AC with an amperage of 12.0/5.8-6.0 amps. The motor features a 56Z frame with open air over enclosure, a resilient ring mount, and a ball bearing system, making it suitable for various industrial applications.

• Single-phase operation
• 3/4 hp with a maximum speed of 1725 RPM
• 56Z frame with open air over enclosure and resilient ring mounting

Product Highlights

This motor is ideal for replacing OEM motors in various industrial applications. Its robust construction and auto protection feature ensure reliable performance.

Product Information

Standard Information

• Brand: Marathon
• MPN: MX603
• Voltage: 115/208-230 V
• Amperage: 12.0/5.8-6.0 A
• HP: 3/4 hp
• RPM: 1725
• Phase: Single
• Frame: 56Z
• Enclosure: Open Air Over
• Mounting: Resilient Ring
• Bearings: Ball

Technical Specifications

• Electrical Type: Cap Start
• HP: 3/4 hp
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230 V
• Rotation: CCWLE
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 12.0/5.8-6.0
• Shaft Type: Single
