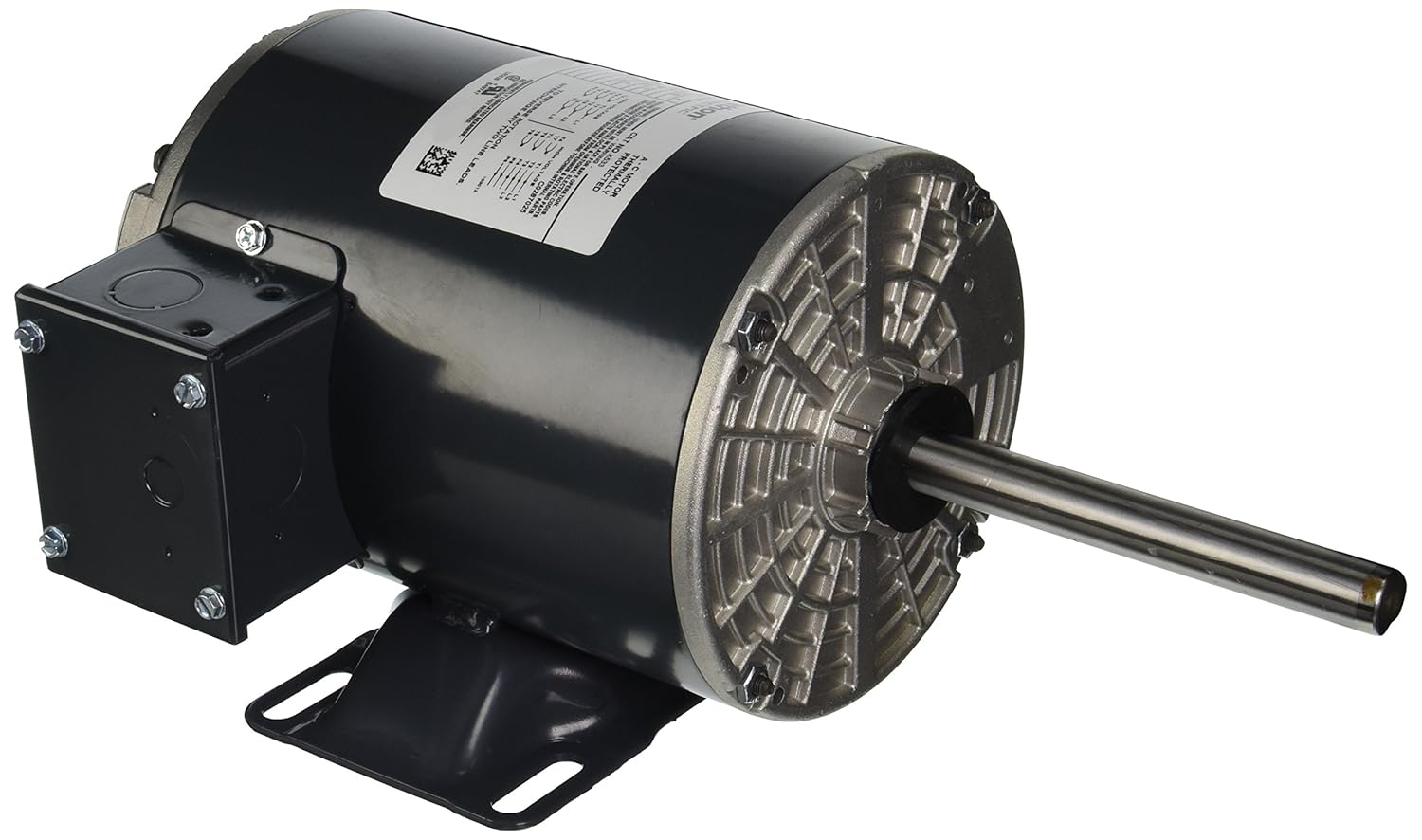

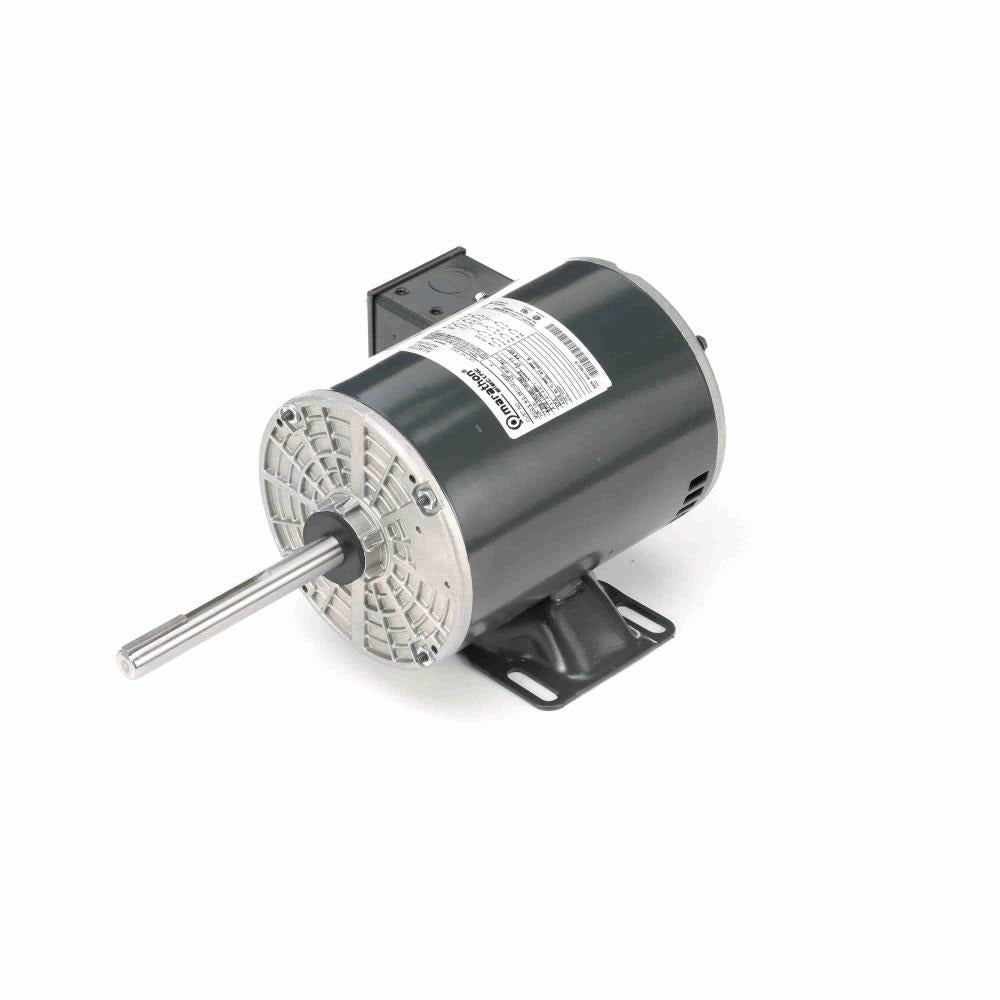

Marathon Electric MX533 Marathon X533 56Z Frame Condenser Fan/Heat Pump Motor 1/2 hp 208-230/460V

Product Description

The Marathon Electric MX533 is a three-phase condenser fan motor designed for efficient operation in HVAC applications. It operates at one half horsepower with a speed of one thousand one hundred forty RPM. This motor features a rigid base and is suitable for open air applications. The shaft dimensions are five eighths inches by five inches, providing secure mounting options. It operates at a voltage of two hundred eight to two hundred thirty volts or four hundred sixty volts.

• Type: Three Phase Motor
• Power: One Half Horsepower
• Speed: One Thousand One Hundred Forty RPM

Product Highlights

This motor is ideal for air conditioning units and heat pumps.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• MPN: MX533

Technical Specifications

• Frame Size: 56Z
• Voltage Options: 208-230V / 460V
• Current: 2.1-2.0 / 1.0 Amps
• Shaft Dimension: 5/8 x 5 inches
• Enclosure Type: Open Air Over (OAO)
• Weight: 37 pounds
• Dimensions: 13.81 x 9.48 x 8.3 inches
