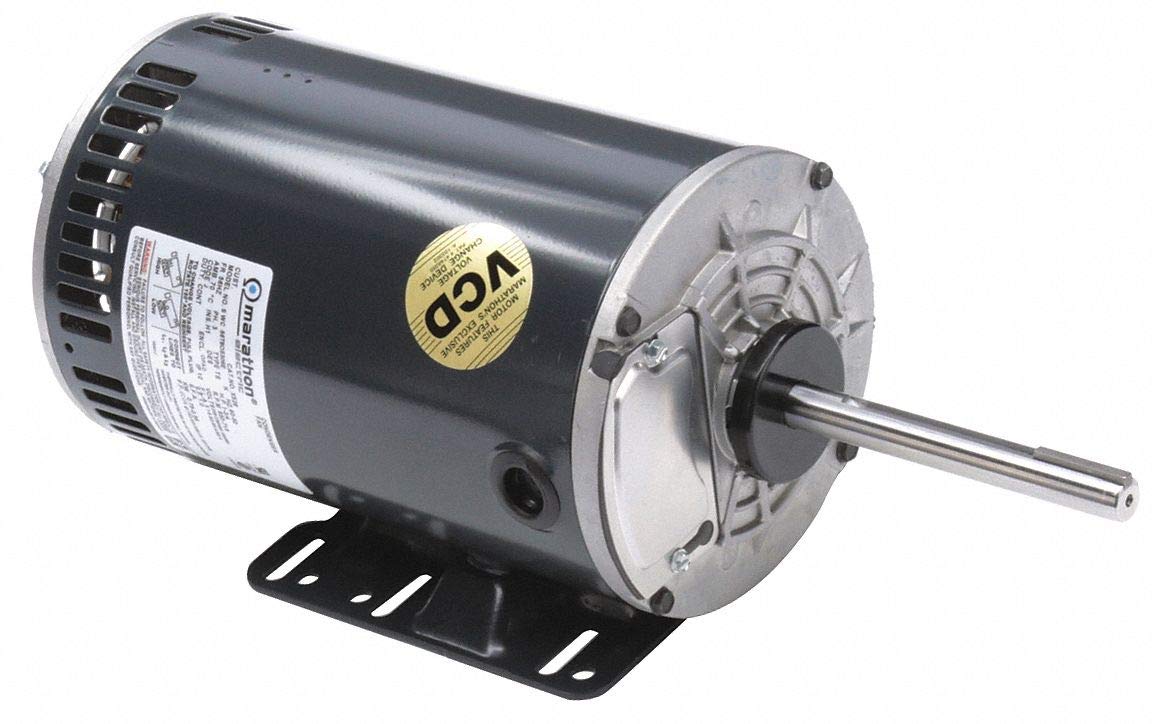

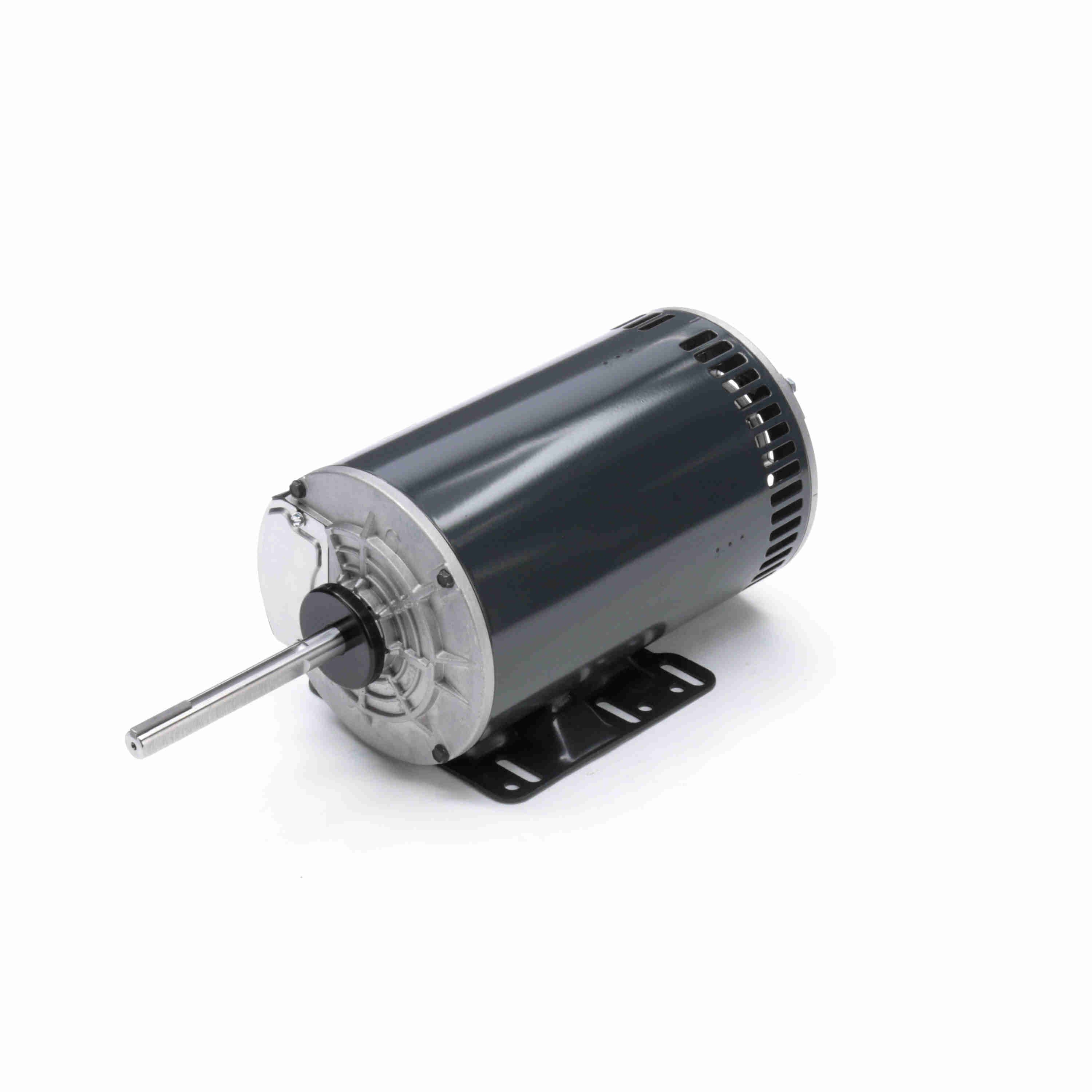

Marathon Electric MX528 56HZ Frame 56T8O5306 Open Air Over Condenser Fan Motor 3 Phase 1 hp 850 RPM 208-230/460 VAC

Product Description

The Marathon Electric MX528 Open Air Over Condenser Fan Motor is designed for HVAC applications. It operates at 850 RPM with a 1 horsepower output. This three-phase motor supports voltages of 208-230/460 VAC.

• Open Air Over Enclosure
• 1 Horsepower
• 850 RPM Speed

Product Highlights

This Marathon Electric motor is commonly used in HVAC systems and condenser fans. It provides reliable performance for air conditioning and ventilation purposes. The 56HZ frame and rigid base make it suitable for various installations.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MX528

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1
• Speed (RPM): 850
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: Open Air Over
• Voltage: 208-230/460 VAC
• Rotation: Reverse
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 5.1-5.3/2.7
• Shaft Type: Single
