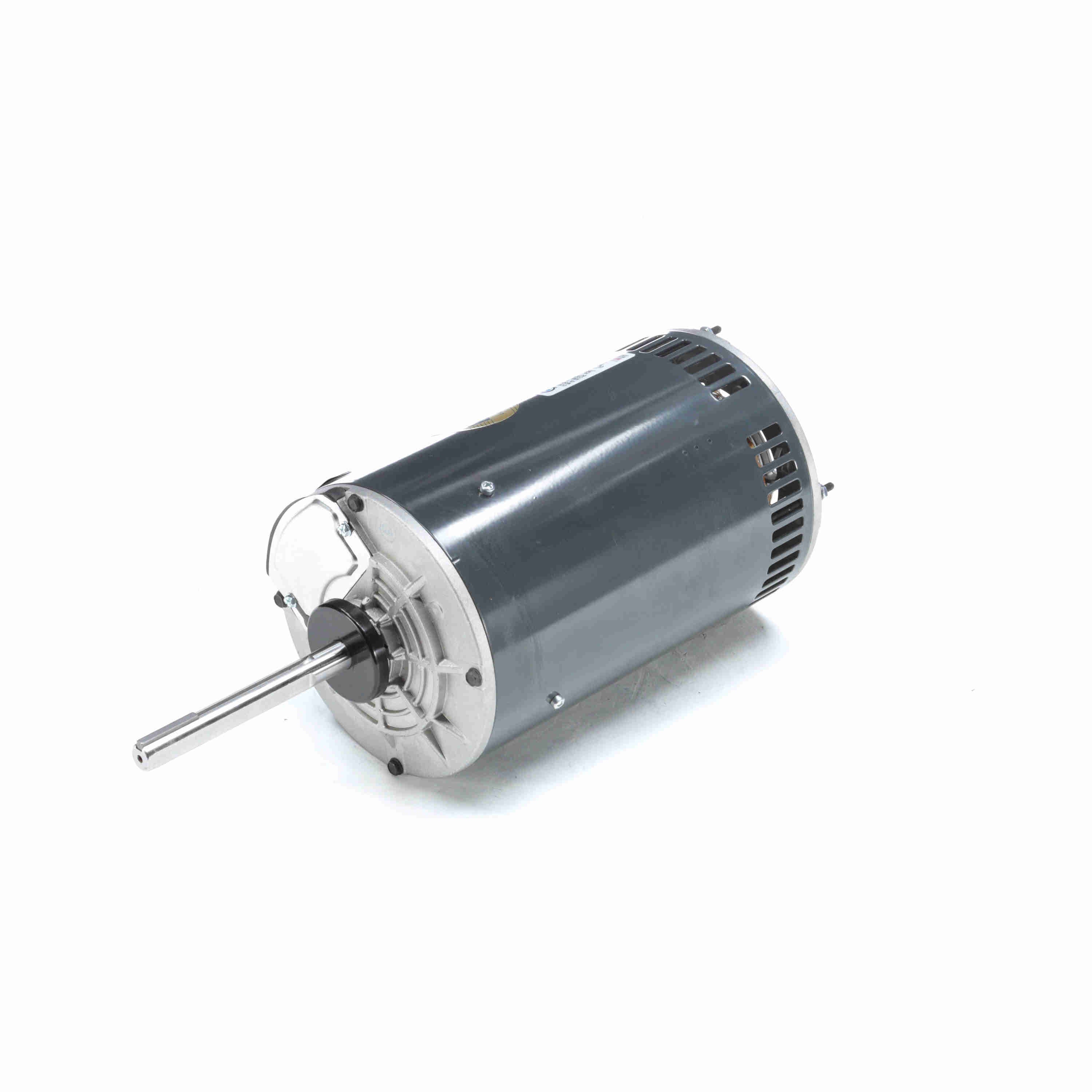

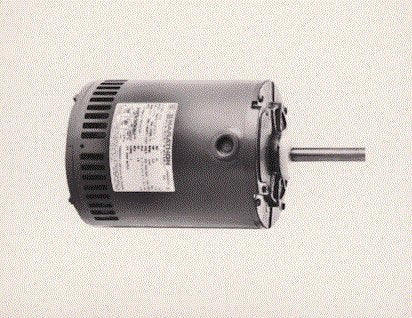

Marathon MX509 Condenser Fan Heat Pump Motor 3 Phase 2 hp 1140 RPM 208-230/460V

Product Description

The Marathon MX509 condenser fan motor is designed for HVAC applications. It is a three-phase, single-speed motor that delivers 2 horsepower at a maximum speed of 1140 RPM. It operates on 208-230/460 volts and has an amperage range of 7.2-6.8/3.4 amps.

• Three-phase motor with one-speed operation
• Delivers 2 horsepower at 1140 RPM
• Compatible with 208-230/460 volts

Product Highlights

The Marathon MX509 motor is built with a 56Y frame and includes a belly band mounting system for secure installation. It features an open air over enclosure and a ball bearing system for reliable performance. The motor's shaft measures 5/8 x 5 inches and includes a flat key for secure connections. It is constructed from rolled steel, providing durability for various HVAC applications.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: X509
• HP: 2
• RPM: 1140
• Voltage: 208-230/460V
• Amps: 7.2-6.8/3.4
• Frame: 56Y
• Shaft Size: 5/8 x 5 inches
• Weight: 49 pounds

Technical Specifications

• Speed: 1140 RPM
• Voltage: 208-230/460 Volts
• Horsepower: 2 hp
• Amperage: 7.2-6.8/3.4 amps
• Frame Size: 56Y
• Diameter: 6.5 inches
• Enclosure: Open Air Over (OAO)
• Material: Rolled Steel
