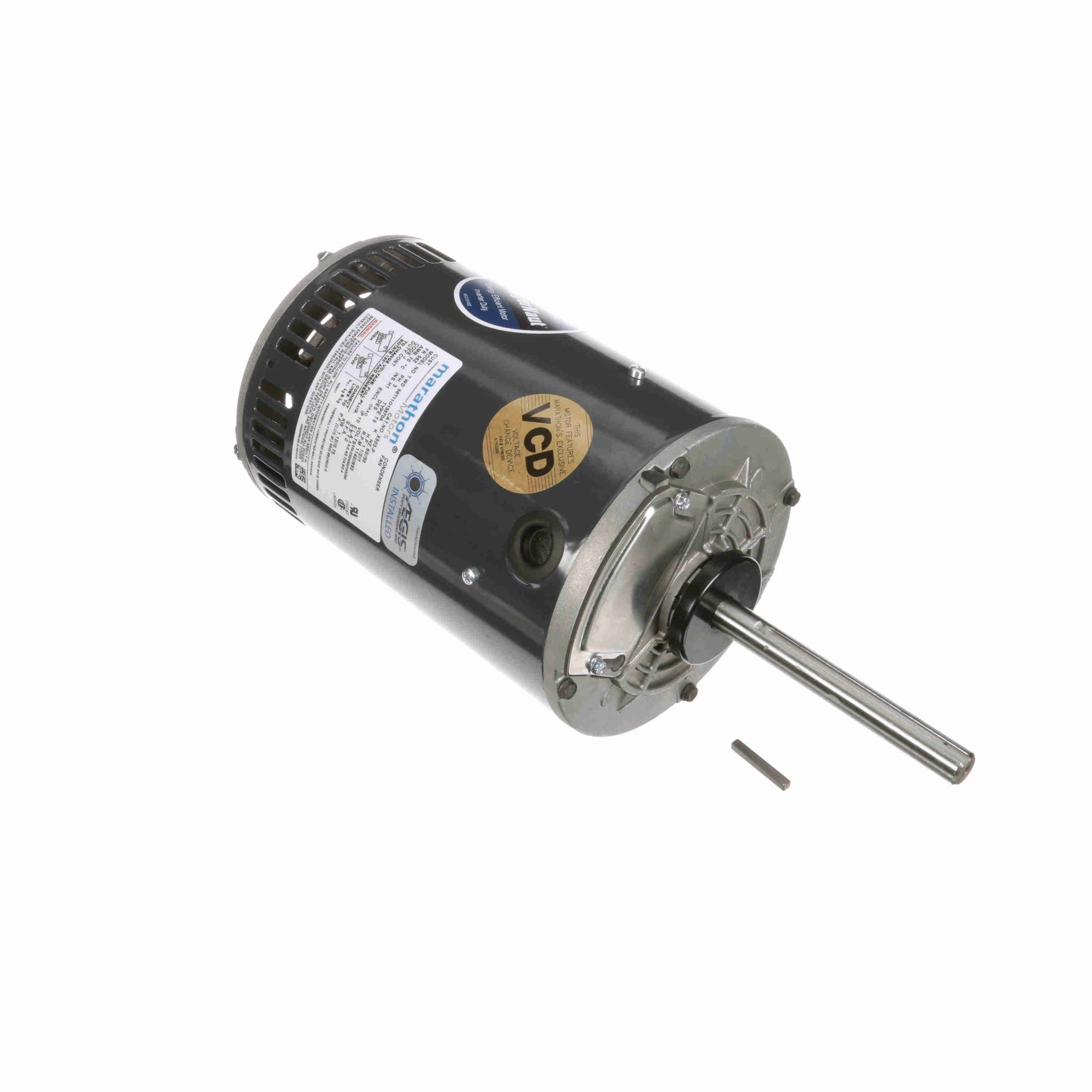

Marathon Motors MX503-P Condenser Fan Motor 1 1/2 hp Replacement MPN

Product Description

The Marathon Motors MX503-P is a condenser fan motor designed for use in air conditioning condenser units. This motor operates on three-phase power and features a squirrel cage induction run design. It has an open air over enclosure for optimal airflow and heat dissipation. The construction of this motor includes rolled steel, providing durability and strength. Automatic thermal protection is built-in to prevent overheating. This product is reversible, adding flexibility for installation.

• Electrical Type: Squirrel Cage Induction Run
• Reversible Design
• Durable Rolled Steel Construction

Product Highlights

This motor is essential for maintaining efficient operation in air conditioning systems. It is built to provide reliable performance and longevity.

Product Information

Standard Information

• Manufacturer Part Number: MX503-P
• Brand: Marathon Motors

Technical Specifications

• Class: Condenser Fan Motor
• Phase: Three
• Frame: NEMA 56Z
• Horsepower: 1 1/2 hp
• Enclosure: Open Air Over
• Amperage: 5.5-5.4/2.7 amps
• Voltage: 200-230/460 volts
• RPM: 1075
• Material: Rolled Steel
• Efficiency: 78.5
• Service Factor: 1.0
• Ambient (Celsius): 70
• Frequency: 60 Hz
• Shaft: Keyed, 5/8 inch diameter x 5 inches
• Thermal Protection: Automatic
• Bearings: Ball bearings
• Insulation Class: Class H
