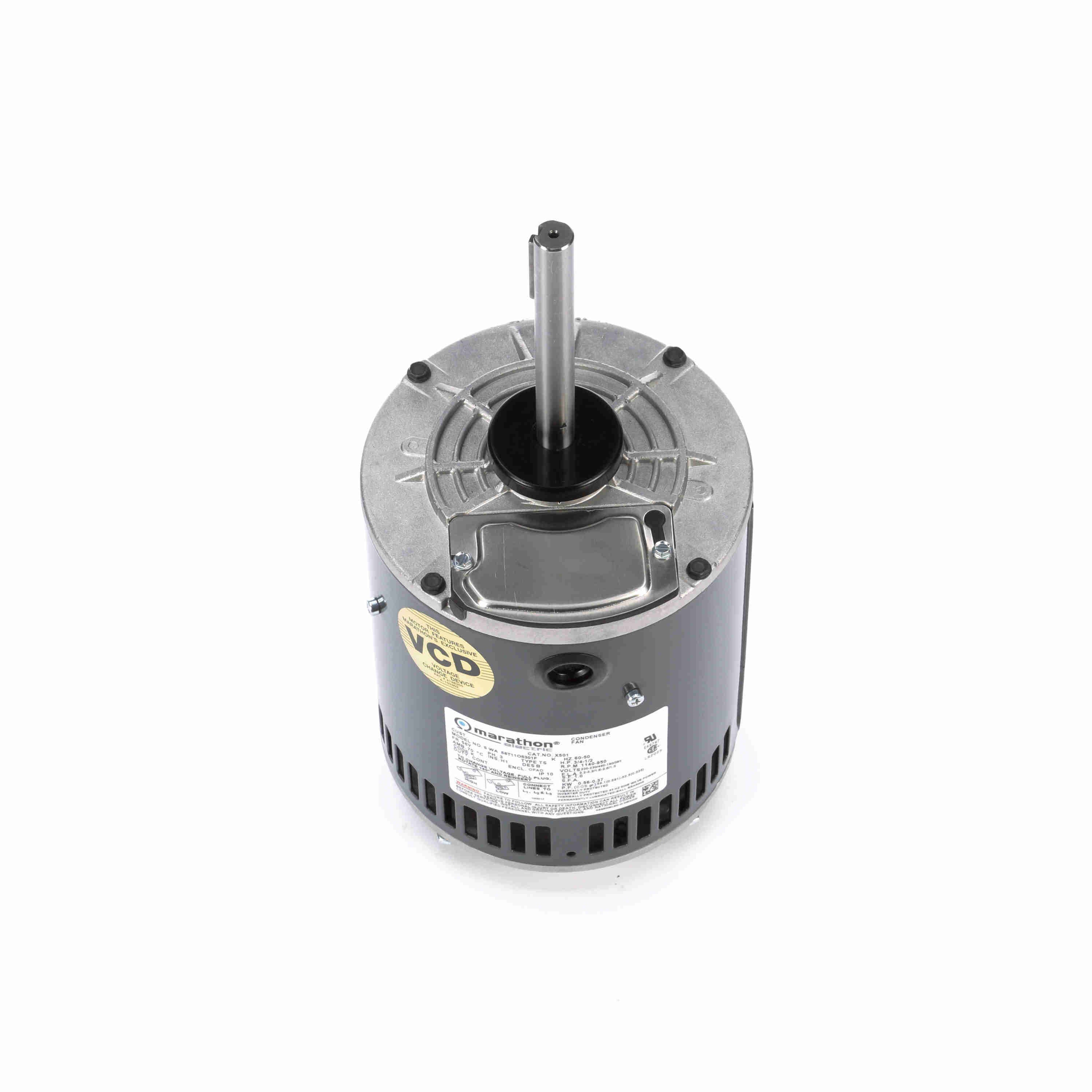

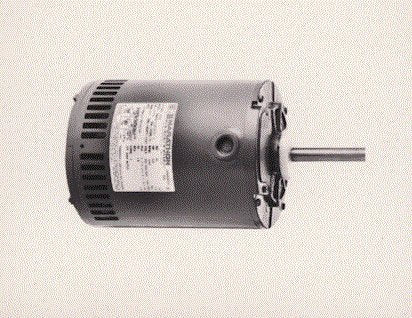

Marathon MX501 Condenser Fan Motor 3/4 hp 1140 RPM 200-230/460 VAC 56Y Frame

Product Description

The Marathon MX501 condenser fan motor is a reliable solution for HVAC applications. This motor features a three-phase, one-speed operation with a power rating of 3/4 hp and a maximum speed of 1140 RPM. Designed with a 56Y frame, it operates at 200-230/460 VAC and includes a ball bearing system for smooth performance.

• 3/4 hp with 1140 RPM
• 200-230/460 VAC, three-phase
• 56Y frame with ball bearing system

Product Highlights

This Marathon condenser fan motor is ideal for HVAC systems, providing efficient and reliable performance. The motor's open air over enclosure ensures proper cooling, and its belly band mounting makes installation straightforward. It is constructed from durable rolled steel for long-lasting use.

Product Information

Standard Information

• Brand: Marathon
• Model: MX501

Technical Specifications

• Power: 3/4 hp
• Speed: 1140 RPM
• Voltage: 200-230/460 VAC
• Phase: Three-phase
• Frame: 56Y
• Mounting: Belly Band
• Material: Rolled Steel
• Amperage: 3.2-3.2/1.6 A
• Bearing System: Ball Bearing
• Shaft Size: 5/8 x 5 inches
• Weight: 24 pounds
