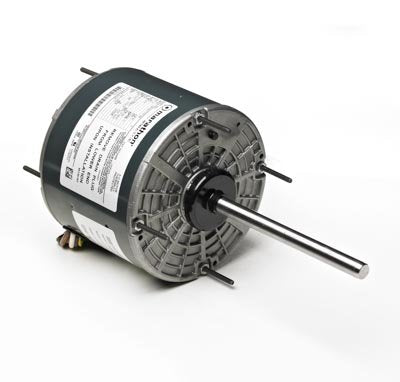

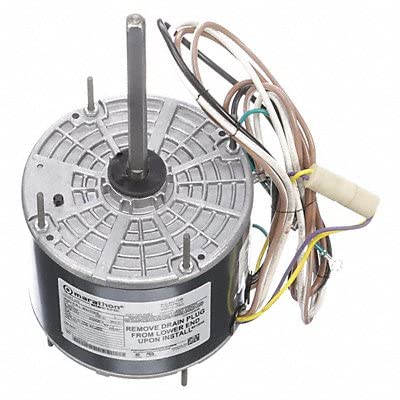

Marathon Electric MX467 Marathon X467 48Y Frame Condenser Fan Motor 1/4 hp 208-230 VAC

Product Description

The Marathon Electric MX467 is a condenser fan motor designed for reliable operation in HVAC applications. This permanent split capacitor motor delivers a power output of one-quarter horsepower with a maximum speed of sixteen hundred twenty-five revolutions per minute. It operates on a voltage range of two hundred eight to two hundred thirty volts and features a single phase and one-speed capacity.

• Single phase operation with one-speed functionality
• Powerful output of one-quarter horsepower, rated at sixteen hundred twenty-five RPM
• Durable construction with a totally enclosed fan and ball bearing system

Product Highlights

This motor is ideal for various HVAC tasks, ensuring efficient airflow and cooling in condenser units.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MX467

Technical Specifications

• Type: Permanent Split Capacitor Motor
• Frame Size: 48Y
• Dimensions: Sixteen point five seven inches x seven point five two inches x seven point four eight inches
• Weight: Twelve pounds
• Amperage: Two amps
• Shaft Size: One half inch x six inches
• Enclosure Type: Totally Enclosed Air Over (TEAO)
