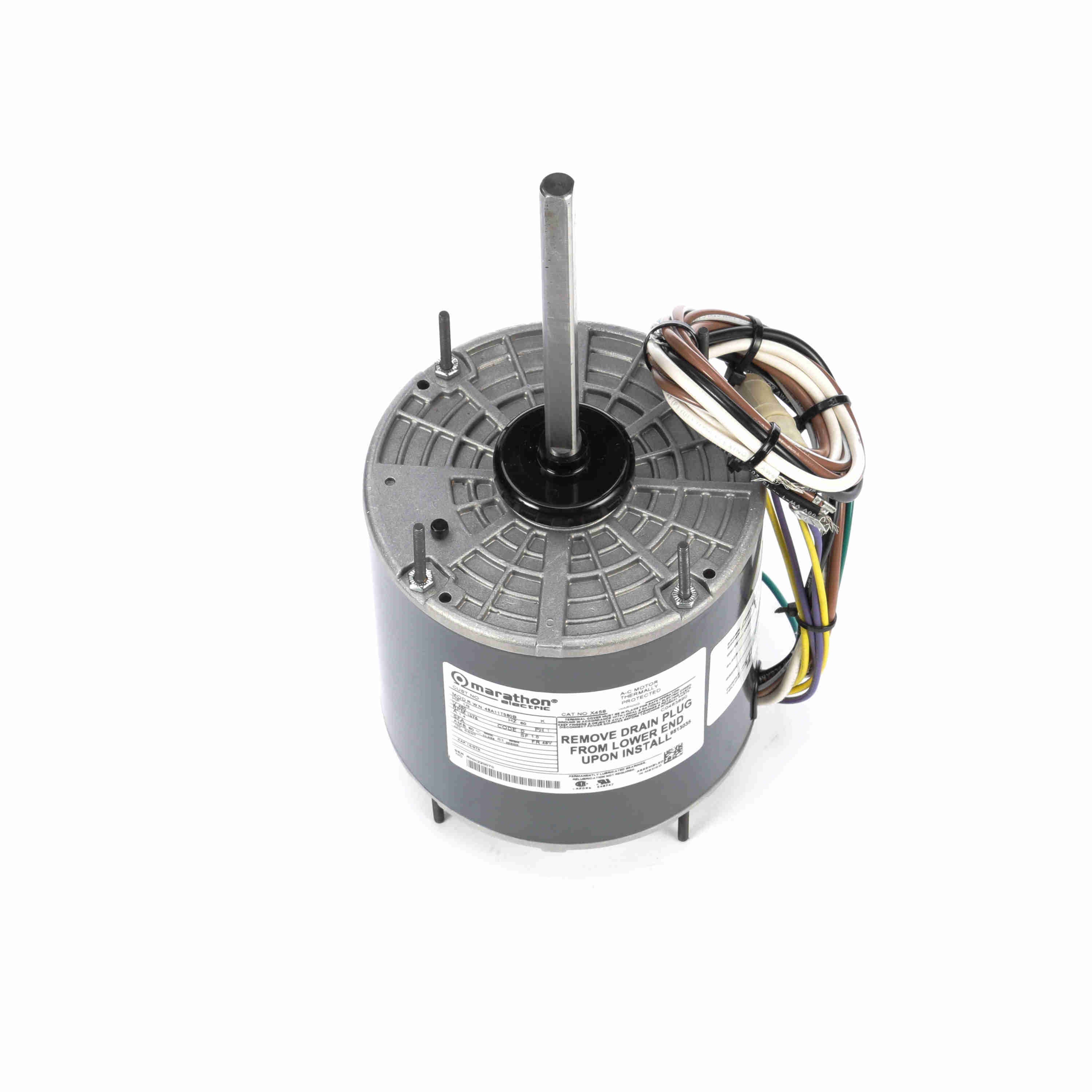

Marathon MX458 48Y Frame Totally Enclosed 48A11T580 Condenser Fan Motor 1/2 hp 1075 RPM 460 VAC 1 Phase 1 Speed

Product Description

The Marathon MX458 48Y Frame Condenser Fan Motor is designed for optimal performance in HVAC systems. This motor operates at 1/2 horsepower and runs at 1075 RPM with 460 volts. The motor is a reliable choice for single-phase applications. It features a permanent split capacitor and a thru-bolt enclosure.

• Permanent Split Capacitor
• Thru-Bolt Enclosure
• 1 Phase Operation

Product Highlights

Ideal for HVAC systems, the Marathon MX458 motor ensures dependable performance and efficiency. It is built with rolled steel and has a totally enclosed air-over (TEAO) design, providing protection and durability.

Product Information

Standard Information

• Brand: Marathon
• MPN: MX458
• Manufacturer Part Number: 48A11T580

Technical Specifications

• Horsepower: 0.5 hp
• Speed: 1075 RPM
• Voltage: 460 Volts
• Phase: Single
• Amperage: 1.4
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Rotation: Reverse
• Overload Protection: Automatic
• Mounting: Belly Band / Extended Studs
• Shaft Type: Single
• Material: Rolled Steel
• Speeds: 1
