Marathon MX260 OEM Greenheck Fan Motor 1/6 hp 1140 RPM

Product Description

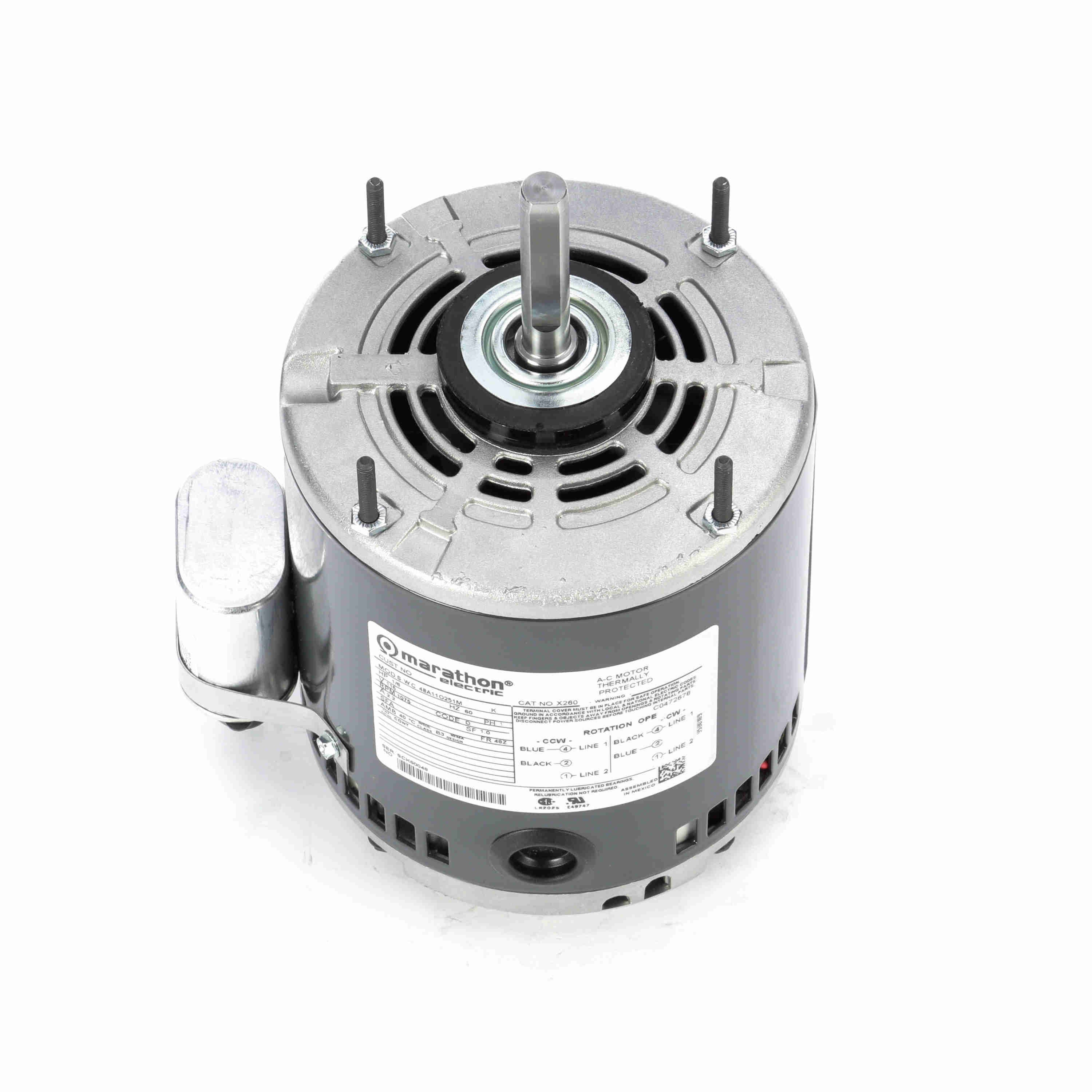

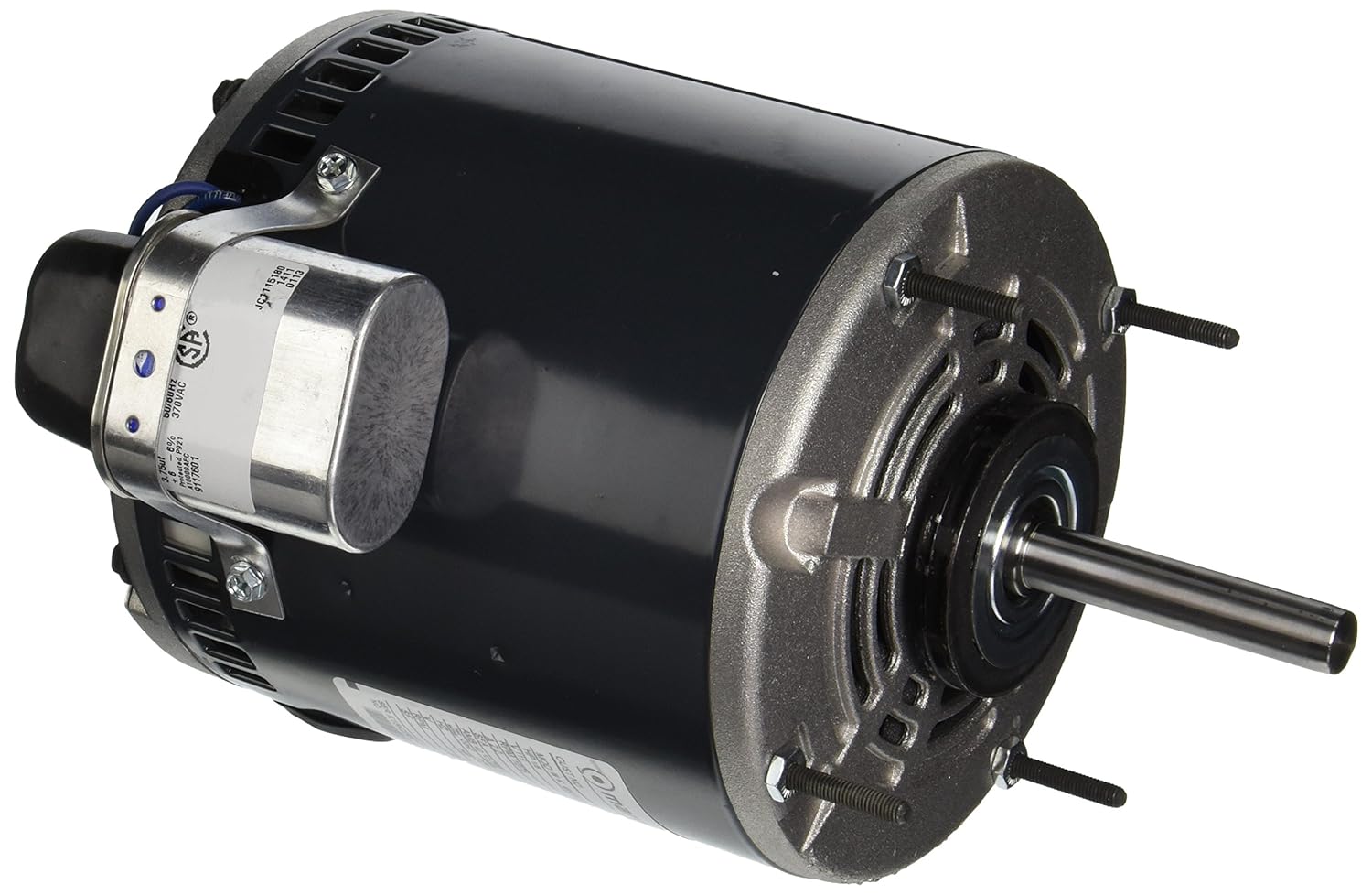

The Marathon MX260 OEM Greenheck Fan Motor is a single-phase, permanent split capacitor motor. Designed with durability and efficiency in mind, it operates at 1/6 horsepower and reaches a maximum speed of 1140 RPM. This motor uses 115 VAC, making it a reliable choice for various applications.

• OEM Greenheck Fan Motor
• 1/6 hp, 1140 RPM
• 115 VAC, single phase

Product Highlights

This motor features a 48Y frame with an open air over enclosure and a thru-bolt mounting system. It also includes a ball bearing system and a 1/2 x 2-1/2 inch shaft size. Weighing at 13 pounds, it is built with resilience and performance in mind.

Product Information

Standard Information

• Brand: Marathon
• MPN: MX260
• Product Type: Electric Motor

Technical Specifications

• Speed: 1140 RPM
• Voltage: 115 Volts
• Horsepower: 0.16 hp
• Frame Size: 48Y
• Enclosure: Open Air Over
• Mounting Type: Thru-Bolt
• Bearing Type: Ball Bearing
• Shaft Size: 1/2 x 2-1/2 inches
