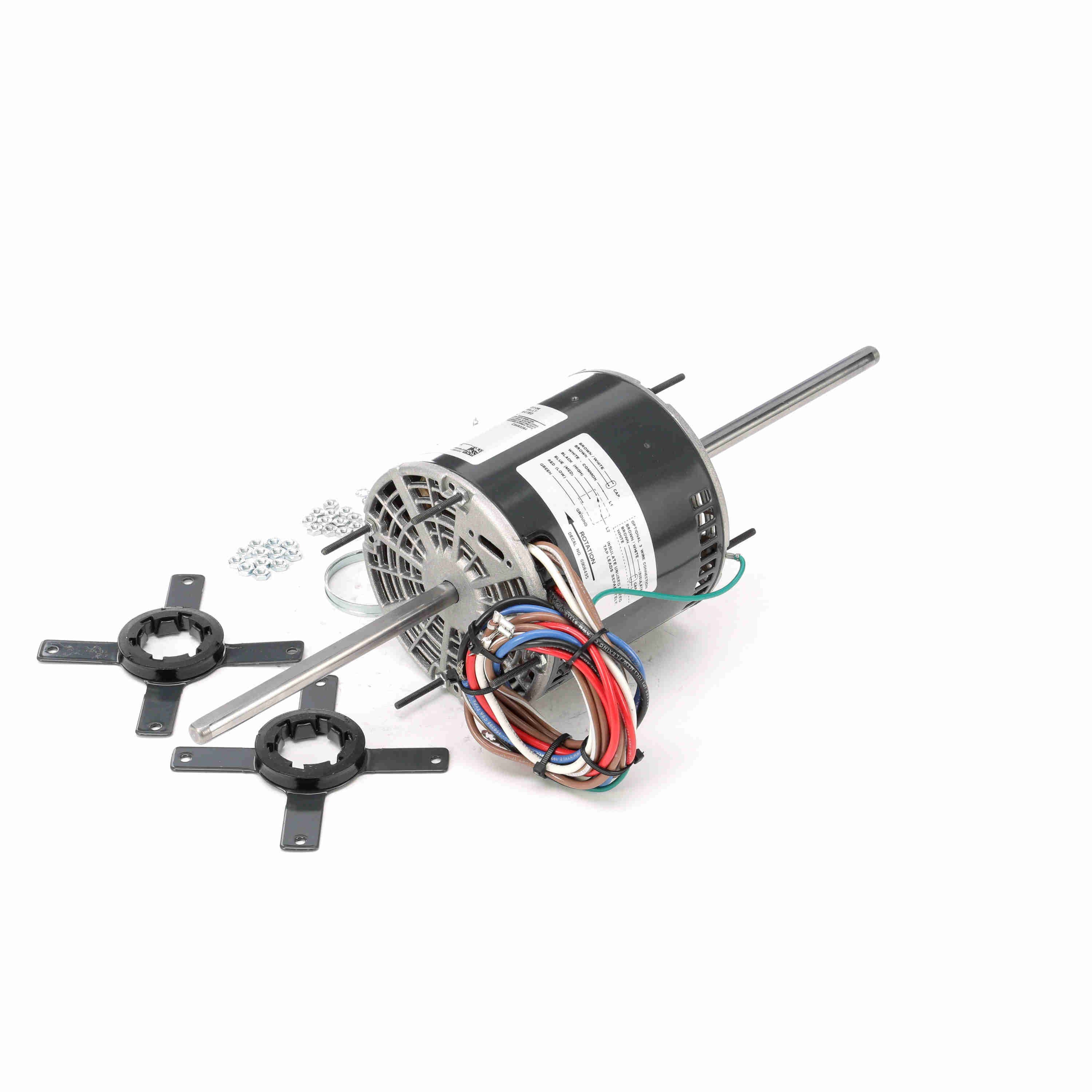

Marathon MX063 Direct Drive Motor 3/4 HP 1075 RPM 208-230 VAC 1 Phase

Product Description

The Marathon MX063 Direct Drive Motor offers reliable performance for a wide range of applications. This motor is designed with a permanent split capacitor for efficient operation. It operates at 3/4 horsepower and 1075 RPM, and is suitable for 208-230 VAC single-phase power supply.

• 3/4 HP motor for various applications
• 1075 RPM for efficient performance
• Half-inch diameter

Product Highlights

This Marathon direct drive motor is ideal for HVAC systems and other equipment that require reliable operation in demanding environments.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MX063
• Product Type: Direct Drive Motor

Technical Specifications

• Electrical Type: PSC
• HP: 3/4
• RPM: 1075
• Frame: 48Z
• Diameter: 5.6
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230
• Rotation: CCWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Mounting: Belly Band / Extended Studs
• Amperage: 5.7-4.5
• Shaft Type: Double
