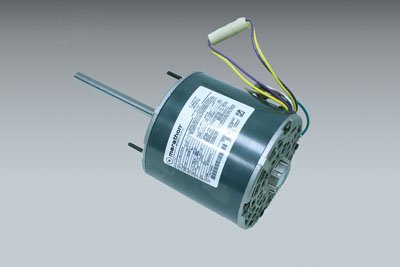

Marathon Electric MX037 Marathon X037 48Y Frame 48A11O1876 Open Air Over Direct Drive Motor 1/3 HP 1075 RPM 2 Speed 460 VAC

Product Description

The Marathon Electric MX037 is a direct drive motor specifically designed for a range of applications. This single phase motor operates with a permanent split capacitor and has two-speed functionality. It delivers one-third horsepower and runs at a speed of up to one thousand seventy-five RPM while operating at a voltage of four hundred sixty VAC.

• Direct drive motor with two-speed operation
• Open air over enclosure with ball bearing system
• Ideal for HVAC and industrial applications

Product Highlights

This motor is built with a durable 48Y frame, features thru-bolt mounting, and can accommodate a shaft size of half by six inches.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Model Number: MX037

Technical Specifications

• Horsepower: 0.33 HP
• Speed: 1075 RPM
• Voltage: 460 VAC
• Frame Size: 48Y
• Weight: 14 lbs
• Amperage: 1.0 A
• Shaft Size: 0.5 x 6 inches
• Type: Permanent Split Capacitor
