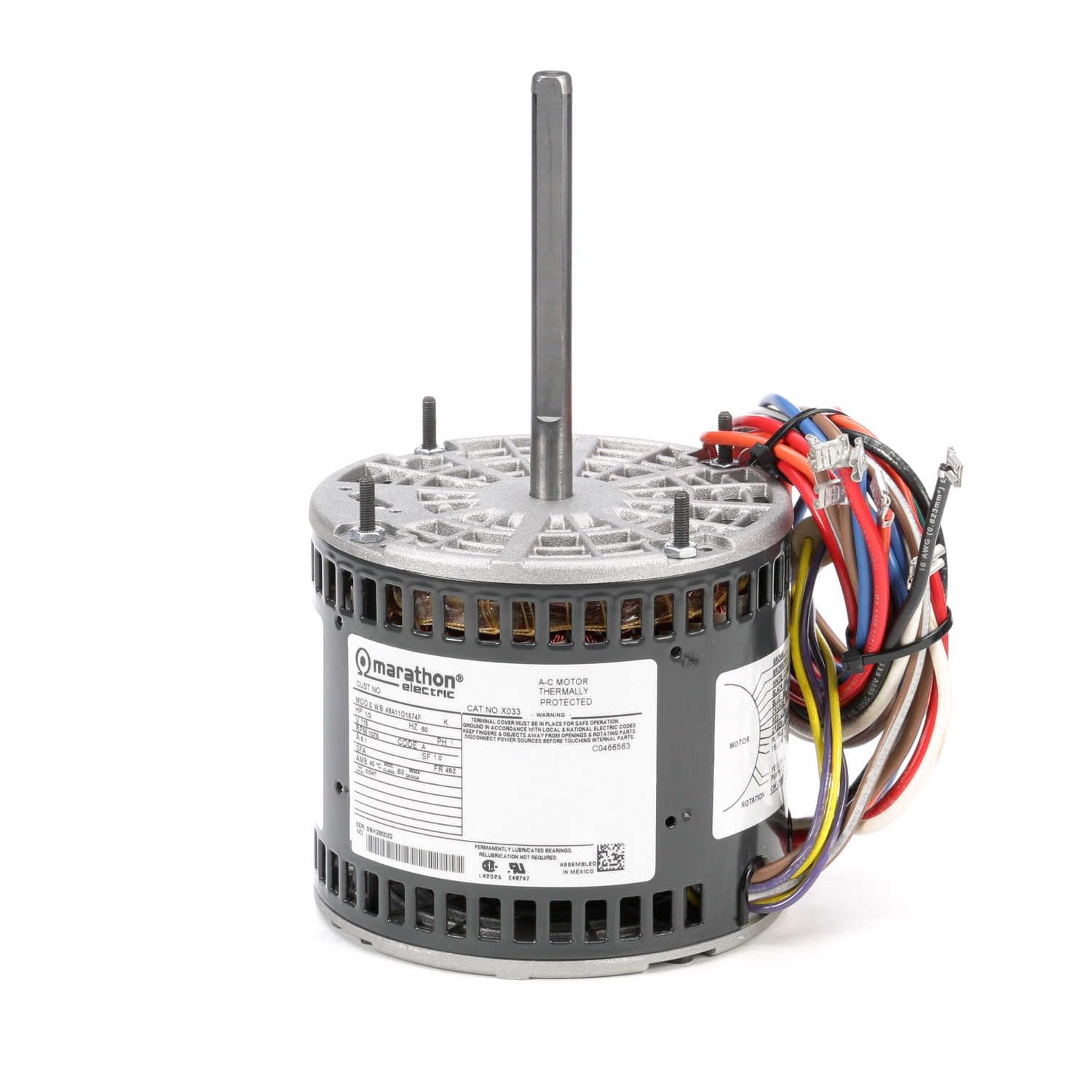

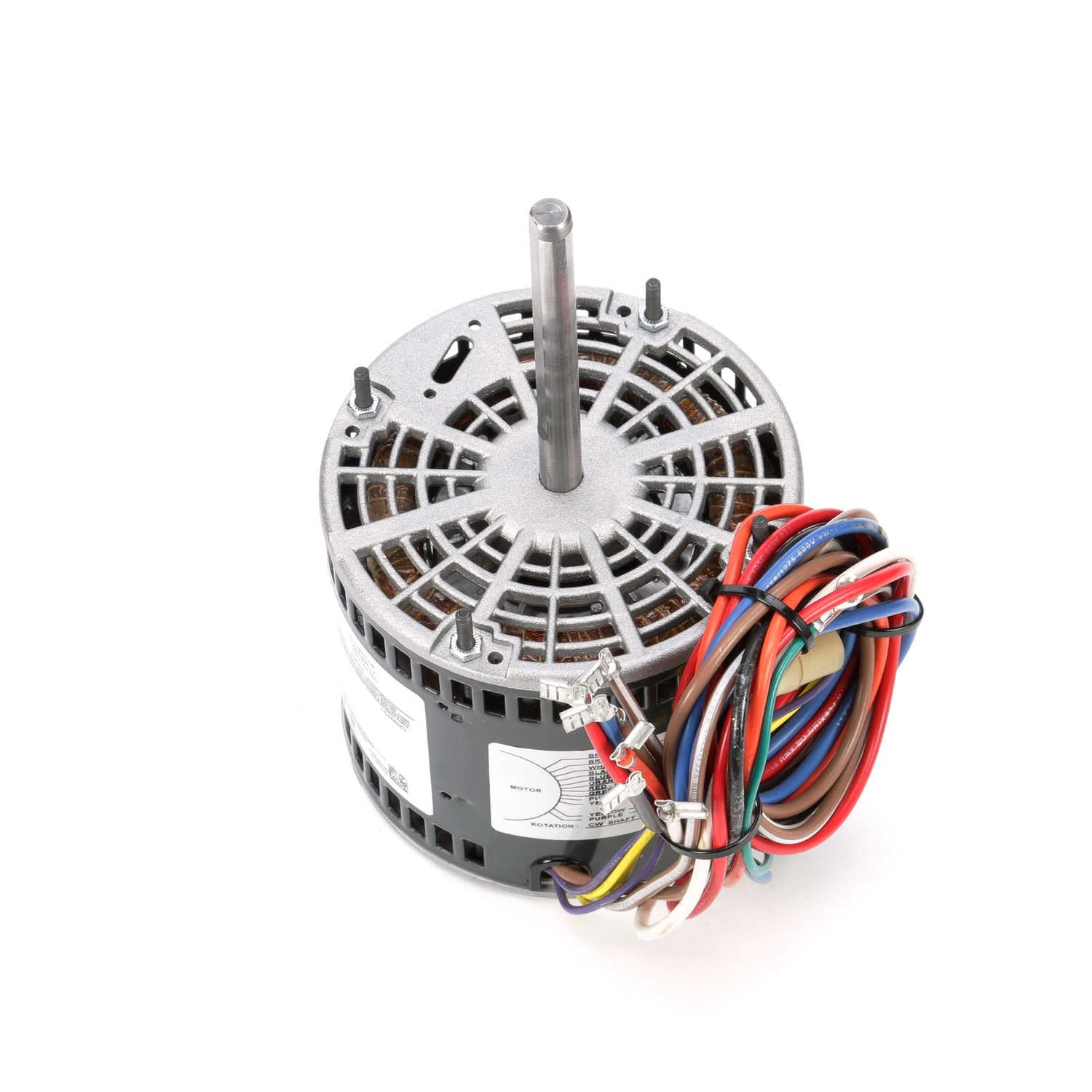

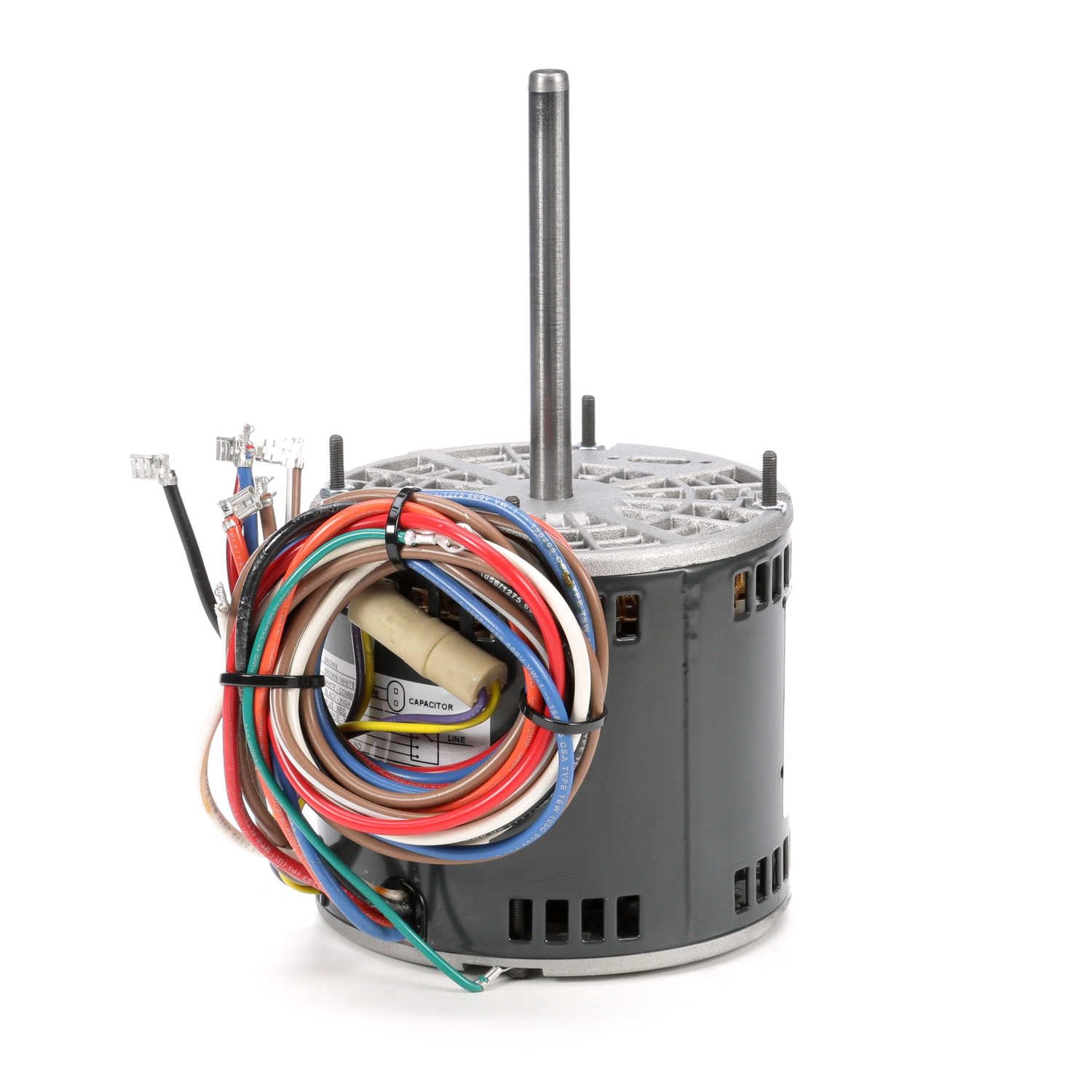

Marathon Electric MX033 Marathon X033 Direct Drive Blower Motor 1/2 hp (Shaft Dimension 1/2 x 5)

Product Description

The Marathon Electric MX033 is a single phase direct drive blower motor designed for reliable performance in various applications. This blower motor features a through-bolt mount and operates at a speed of 1075 RPM with a power rating of half a horsepower. It is suitable for HVAC systems, providing efficient airflow in both residential and commercial settings.

• Power: 1/2 hp
• Voltage: 115 Volts
• Amperage: 6.1 Amps

Product Highlights

This motor is made from rolled steel and comes with automatic overload protection. It is designed for direct drive applications and features a single shaft type. Ideal for use in heating and cooling systems, it ensures optimal efficiency in air movement.

Product Information

Standard Information

• Model Name: X033
• Frame Size: 48Z

Technical Specifications

• Rotation: Reversible
• Enclosure Type: Open Air Over (OAO)
• Diameter: 5.6 inches
• Mounting Type: Belly Band / Extended Studs
• Overall Dimensions: 13.3 x 7.3 x 7.2 inches
