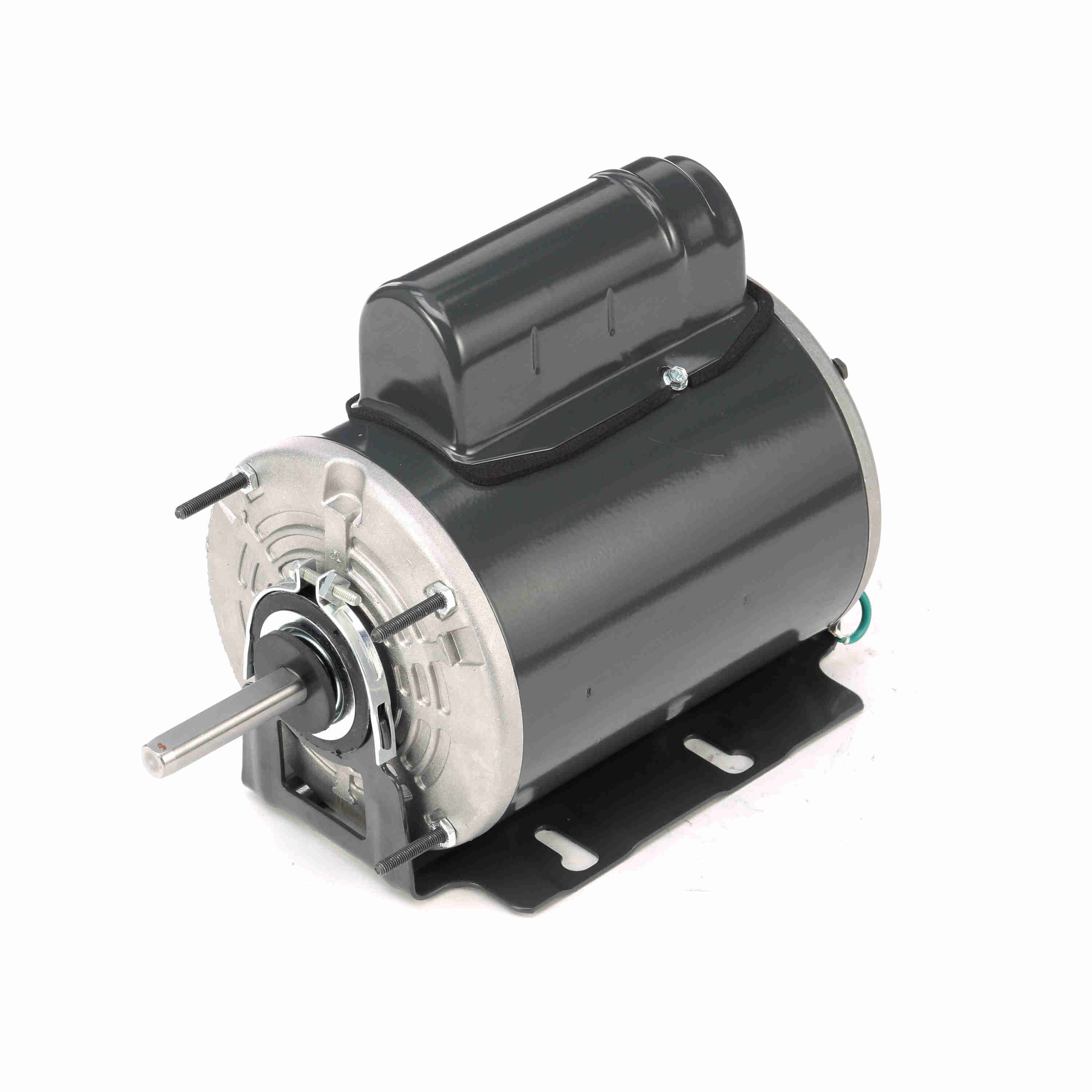

Marathon MX026 Agricultural Fan Motor PSC 1/2 HP 1625 RPM 115/230V

Product Description

The Marathon MX026 Agricultural Fan Motor is a reliable motor designed for agricultural applications. Featuring a Permanent Split Capacitor (PSC) electrical type, this motor operates at 1/2 horsepower and 1625 RPM. It has a 48Z frame and measures 5.6 inches in diameter. The motor is enclosed in a Totally Enclosed Air Over (TEAO) housing and is designed for single-phase use with a voltage rating of 115/230 volts.

• PSC Electrical Type
• 1/2 HP and 1625 RPM
• Totally Enclosed Air Over (TEAO)

Product Highlights

This agricultural fan motor is constructed from durable rolled steel and includes an automatic overload protector. It features resilient extended studs for easy mounting and has an amperage rating of 6.0/3.0 amps. Ideal for various agricultural applications, the motor rotates in reverse and has a single shaft type.

Product Information

Standard Information

• Brand: Marathon
• MPN: MX026
• Type: Agricultural Fan Motor

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/2
• RPM: 1625
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient / Extended Studs
• Amperage: 6.0/3.0
• Shaft Type: Single
