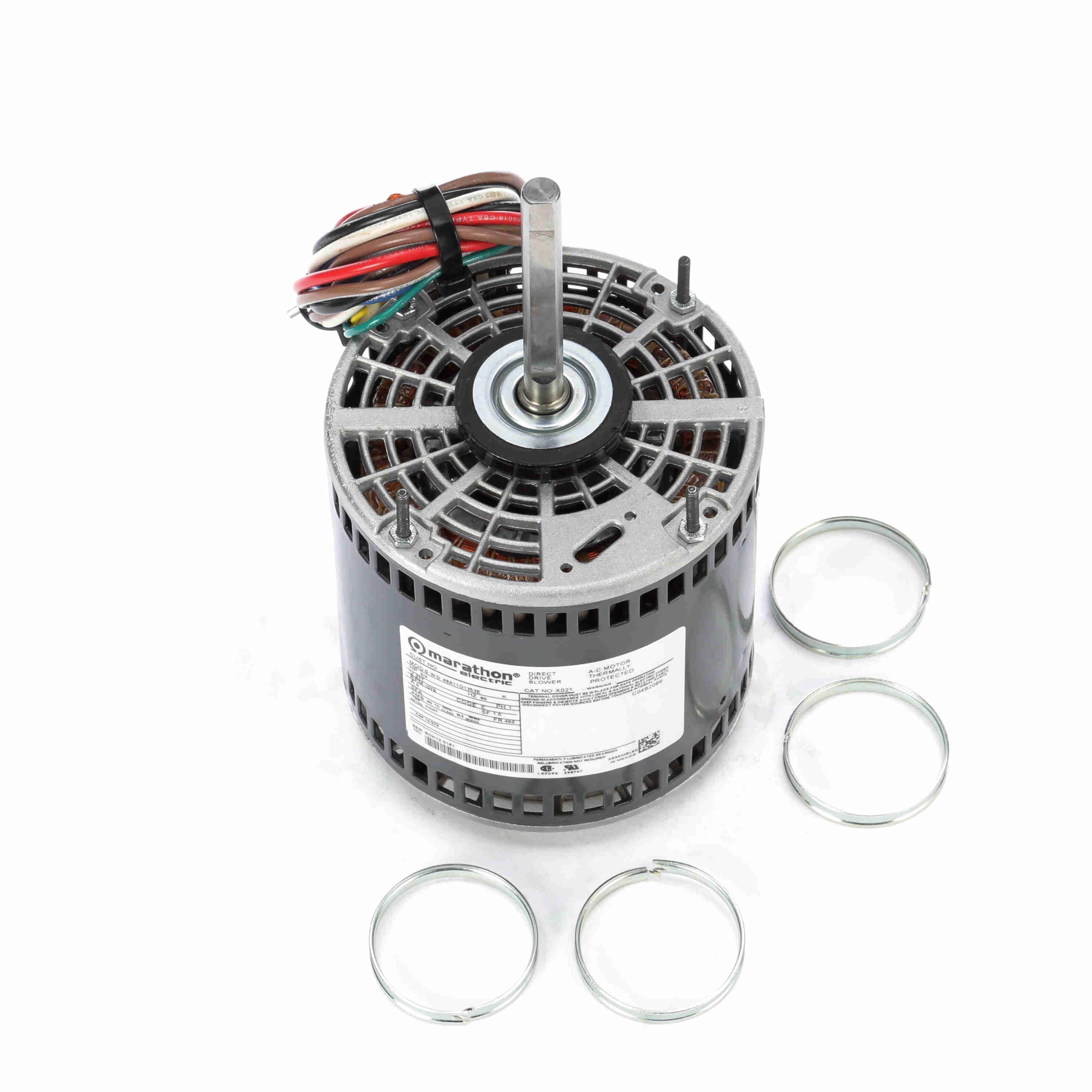

Marathon MX021 X021 48Y Frame Open Air Over 48A11O1353 Direct Drive Motor 3/4 hp 1075 RPM 277 VAC 1 Phase 3 Speeds Ball Bearing Permanent Split Capacitor Thru-Bolt

Product Description

The Marathon MX021 Direct Drive Motor, designed by Marathon Electric, is a robust motor suitable for HVAC applications. This 3/4 hp motor operates at 1075 RPM with a voltage rating of 277 VAC. It features a permanent split capacitor design and a thru-bolt mounting system.

• 3/4 hp motor
• 1075 RPM speed
• 277 VAC rating

Product Highlights

This motor is ideal for direct drive applications, providing consistent performance and durability with its rolled steel material and ball bearing design.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Brand: Marathon
• Product Name: Marathon X021 Direct Drive Motor
• Model Number: MX021
• Part Number: 48A11O1353
• UPC:
• Dimensions: 12 inches x 9 inches x 8 inches
• Weight: 20 pounds

Technical Specifications

• Speed: 1075 RPM
• Voltage: 277 Volts
• Material: Rolled Steel
• Horsepower: 0.75 hp
• Frame Size: 48
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Reversible
• Amperage: 5.0 A
• Shaft Type: Single
