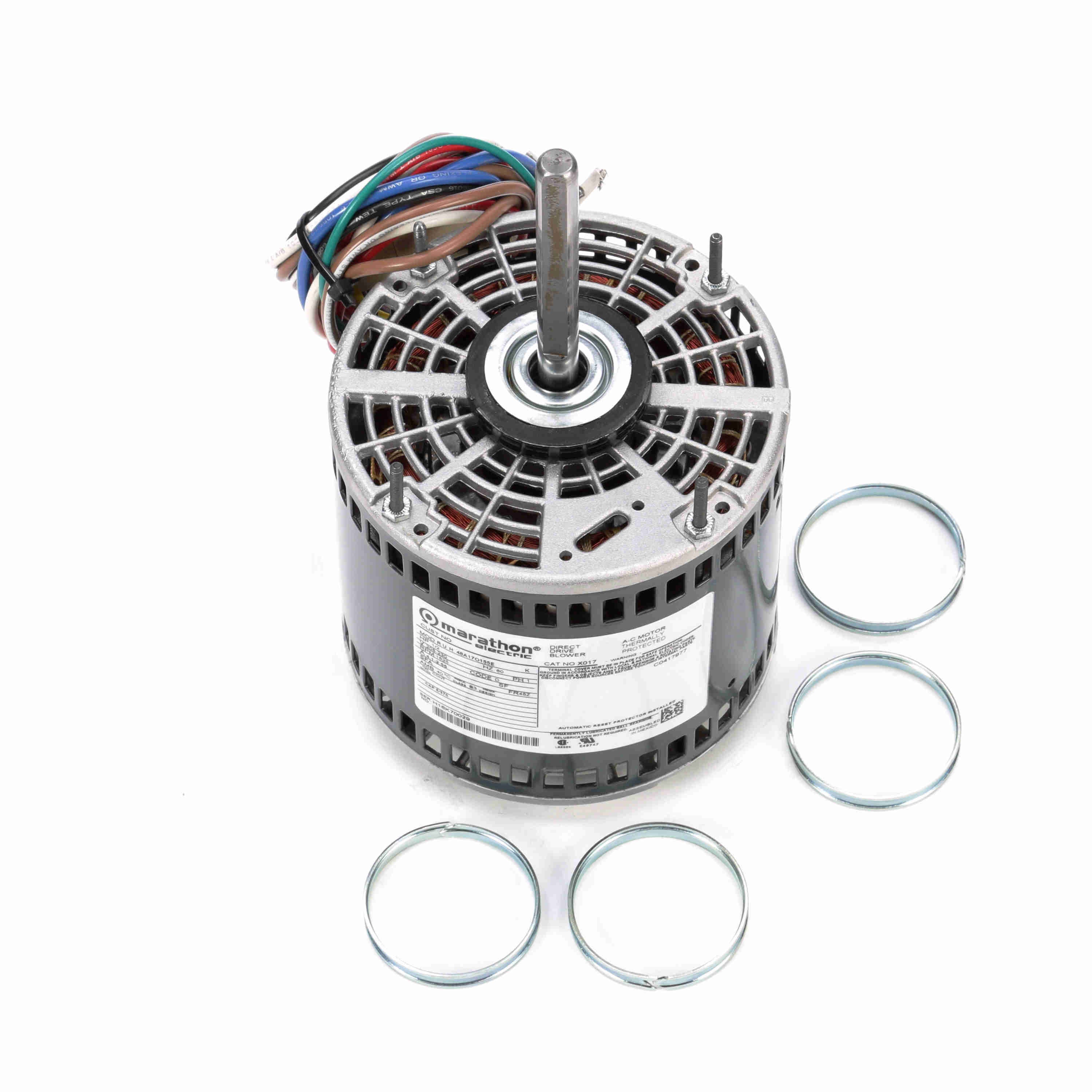

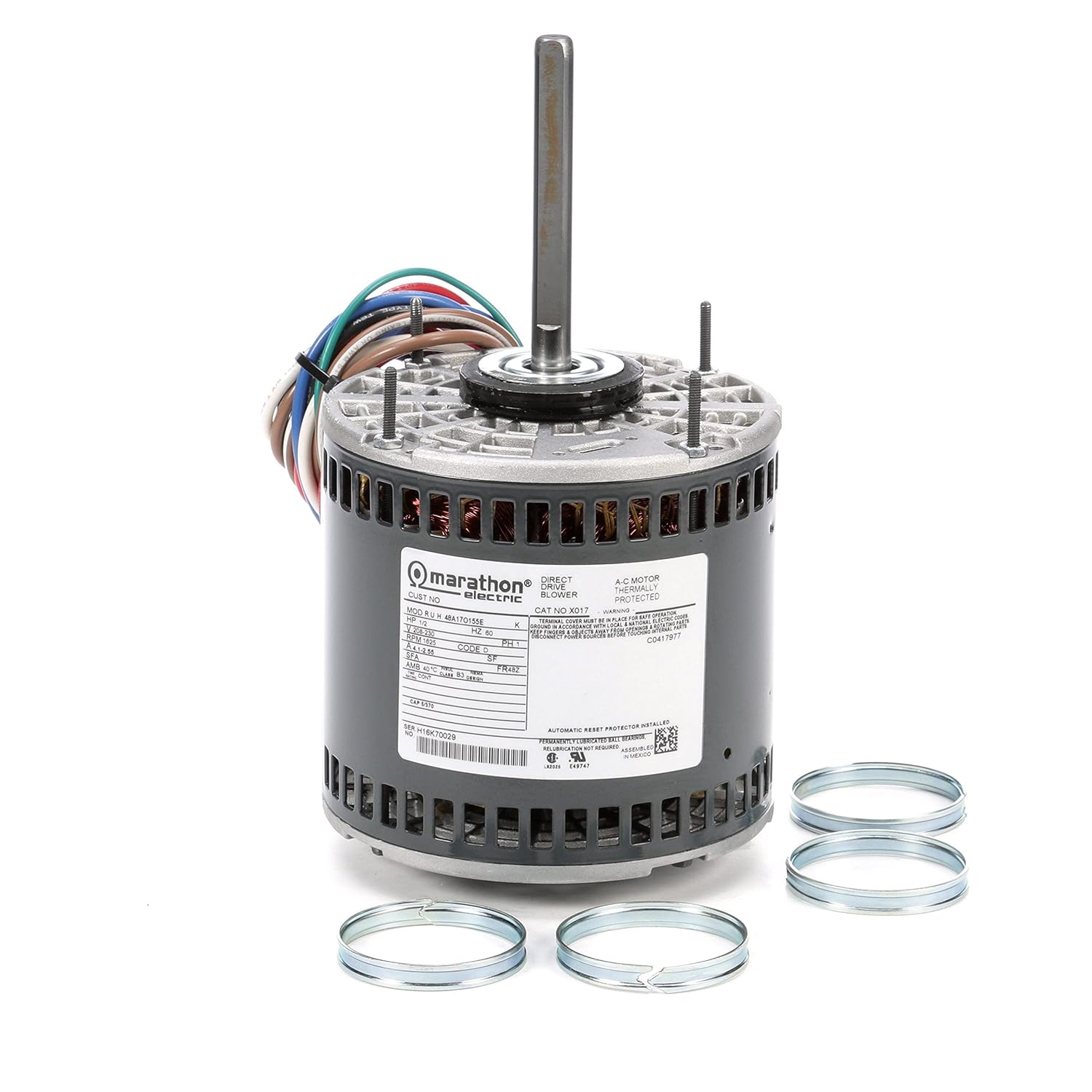

Marathon MX017 48Y Frame Open Air Over 48A17O155 Direct Drive Motor 1/2 hp, 1625 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Product Description

The Marathon MX017 48Y Frame Open Air Over 48A17O155 Direct Drive Motor is designed for a range of HVAC applications. This motor features 1/2 hp and operates at 1625 RPM with a voltage of 208-230 VAC. It uses a permanent split capacitor with a thru-bolt design, ensuring long-term reliability and efficient performance. Compatible with single-phase power, this motor offers three-speed settings to accommodate different operational requirements.

• 1/2 hp motor for HVAC systems
• 1625 RPM operating speed
• 208-230 VAC, single-phase power

Product Highlights

This Marathon motor is ideal for use in fan motors within HVAC systems. It combines robust performance with reliable ball bearing support, ensuring smooth and efficient operation.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MX017

Technical Specifications

• Horsepower: 0.5 hp
• Voltage: 208-230 VAC
• Speed: 1625 RPM
• Frame Size: 48
• Frame Suffix: Z
• Enclosure: Open Air Over (OAO)
• Phase: Single Phase
• Rotation: Reverse (REV)
• Material: Rolled Steel
• Mounting Type: Resilient Ring - Extended Studs
• Amperage: 4.1-4.1 A
• Shaft Type: Single
