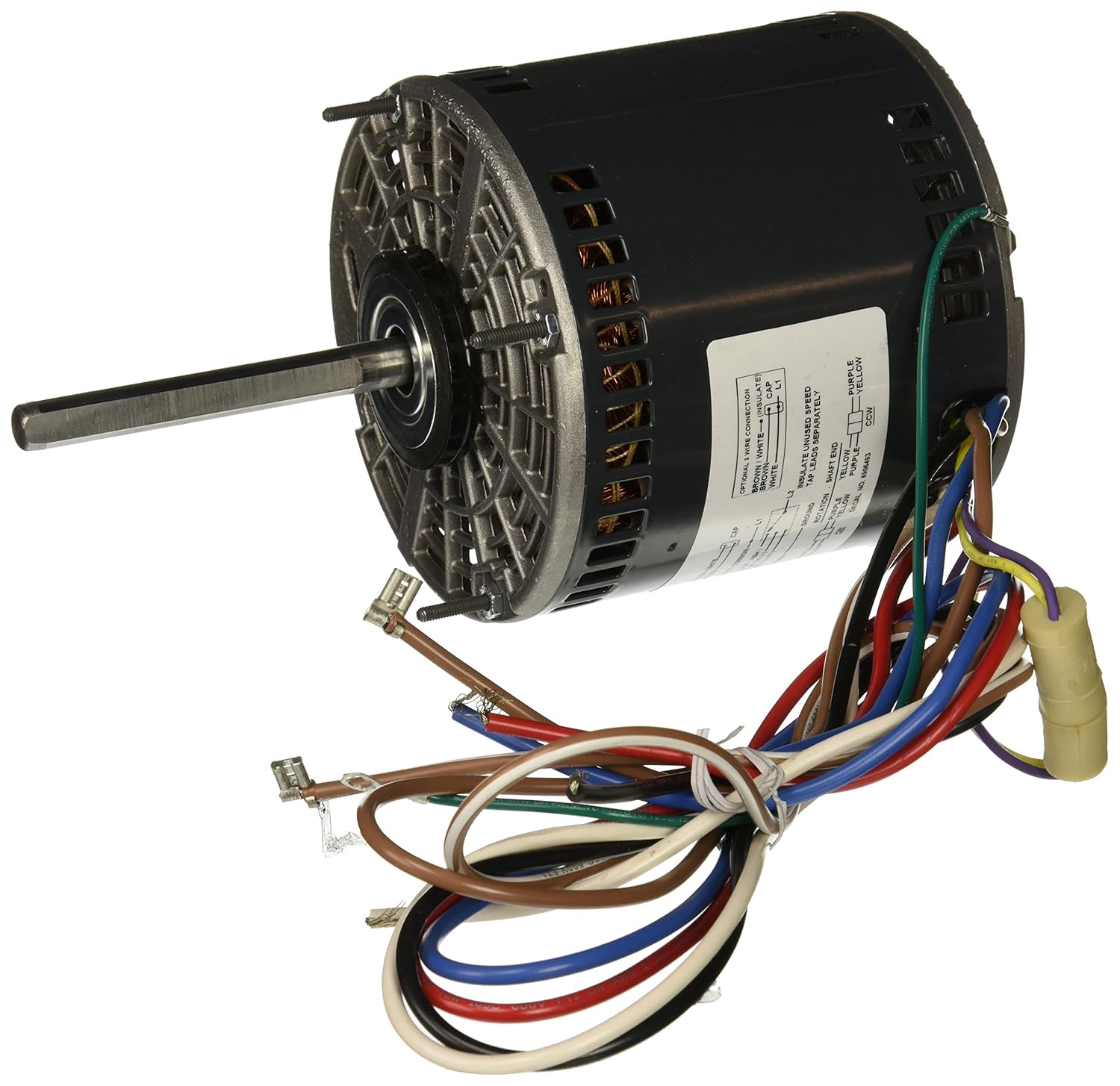

Marathon MX016 Direct Drive Motor 48A17O153 0.5 hp 1625 RPM

Product Description

The Marathon MX016 direct drive motor, also known by the model number 48A17O153, is a single-phase permanent split capacitor (PSC) motor. It has a three-speed operation and delivers 0.5 horsepower (hp) at a maximum speed of 1625 RPM. The motor operates on 115 volts AC and draws 7.4 amps of current.

• Three-speed operation
• 0.5 hp at 1625 RPM
• 115 volts AC, 7.4 amps

Product Highlights

This Marathon MX016 motor features a 48Y frame and an open air over (OAO) enclosure. The motor uses a ball bearing system and has a thru-bolt mounting configuration. The motor shaft measures 0.5 inches by 4 inches. The motor is built using rolled steel for enhanced durability.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Brand: Marathon Electric
• Model: MX016

Technical Specifications

• Electrical Type: PSC
• Horsepower: 0.5 hp
• Maximum Speed: 1625 RPM
• Frame: 48Y
• Voltage: 115 Volts AC
• Current: 7.4 Amps
• Mounting Type: Thru-bolt
• Shaft Size: 0.5 inches by 4 inches
• Enclosure: Open Air Over (OAO)
• Bearing System: Ball Bearing
• Material: Rolled Steel
