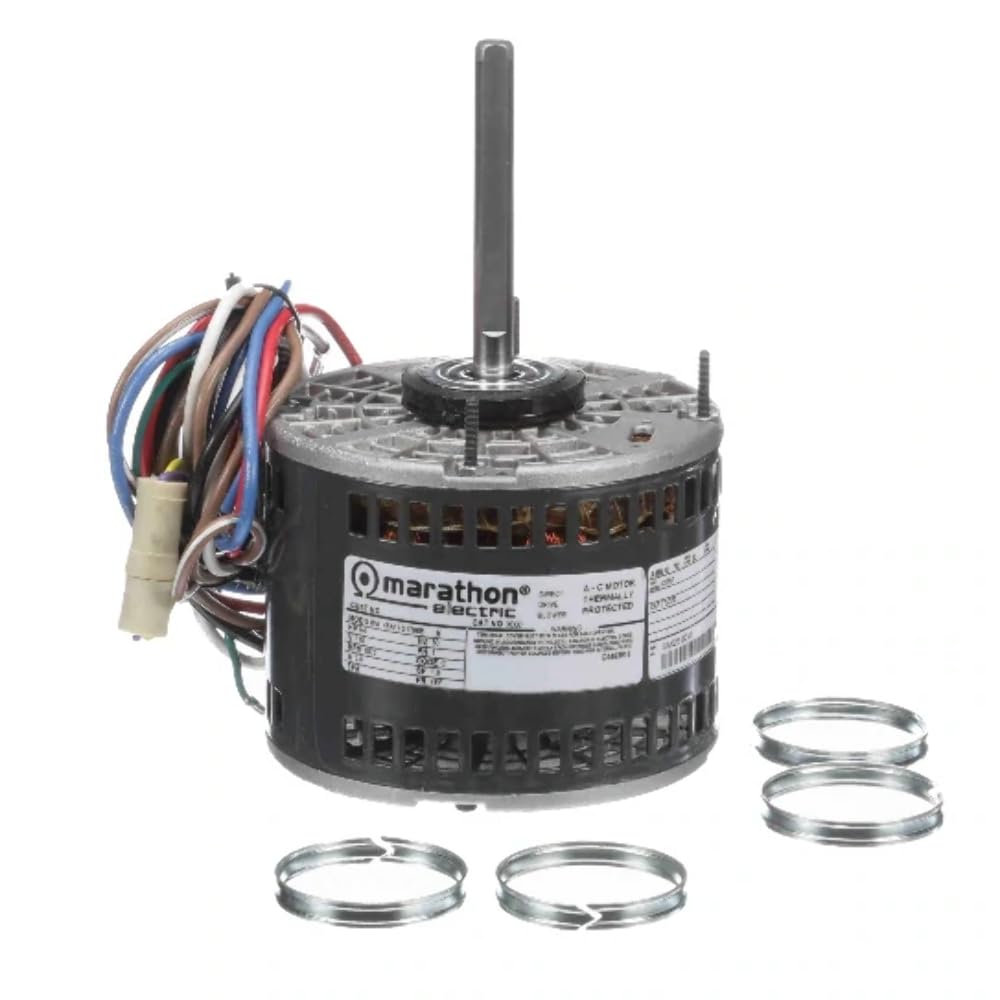

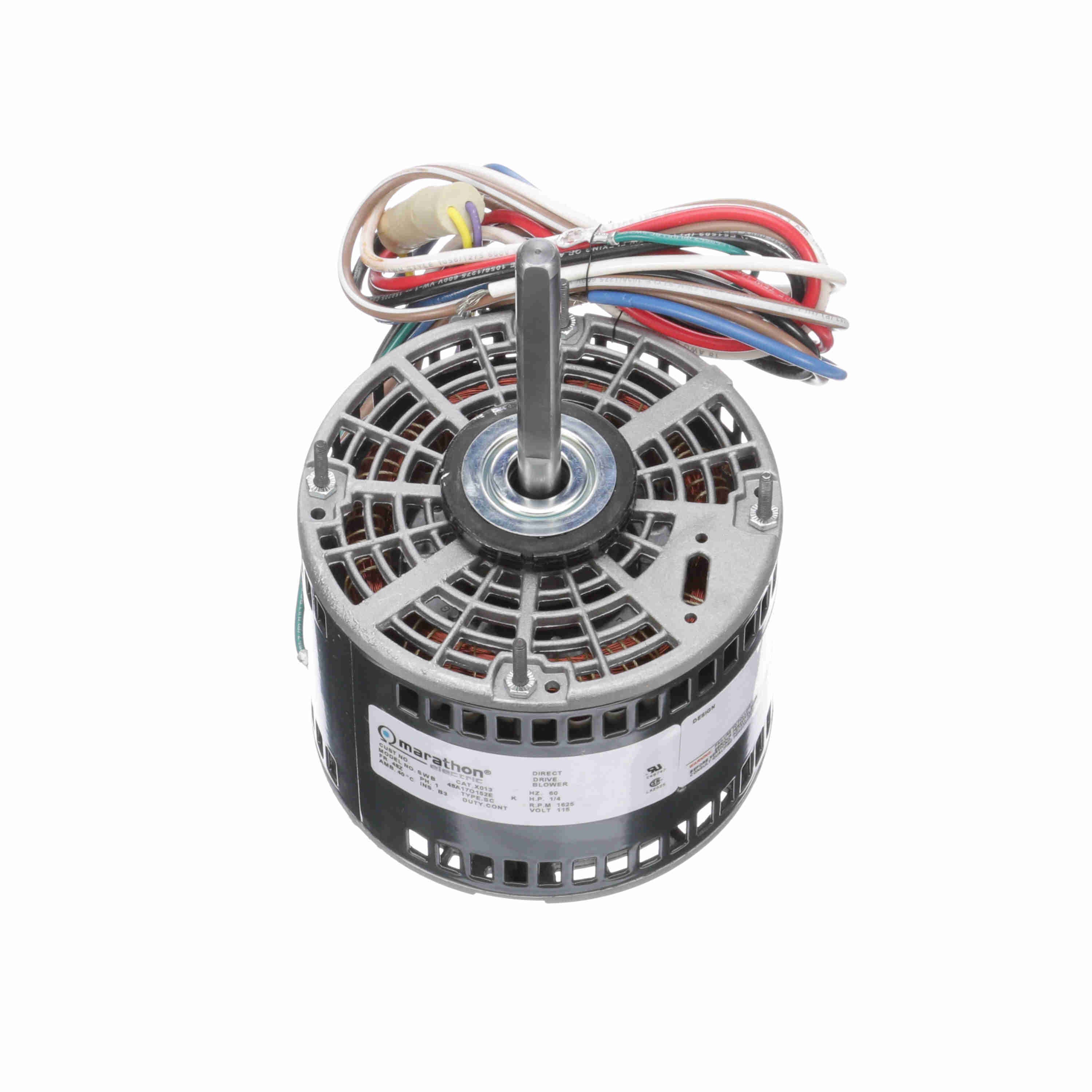

Marathon MX013 Direct Drive Motor 1/4 hp 1625 RPM 48Y Frame

Product Description

The Marathon MX013 Direct Drive Motor is a reliable choice for various HVAC applications. It runs at 1/4 hp with a maximum speed of 1625 RPM. This motor features a 48Y frame and operates on 115 VAC. It is designed for single-phase operation with three-speed settings.

• Direct drive motor with single-phase operation
• 1/4 hp with a maximum speed of 1625 RPM
• 48Y frame and 115 VAC

Product Highlights

This motor includes a thru-bolt mounting system, ball bearing construction, and a permanent split capacitor for efficient performance.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MX013
• Model: 48A17O152

Technical Specifications

• Horsepower: 1/4 hp
• Speed: 1625 RPM
• Voltage: 115 VAC
• Phase: Single
• Frame: 48Y
• Shaft Size: 1/2 x 4 inches
• Mounting: Thru-bolt
• Amperage: 2.9 Amp
• Weight: 12 pounds
• Material: Rolled Steel
• Enclosure: Open Air Over (OAO)
• Bearing Type: Ball Bearing
• Speeds: Three
