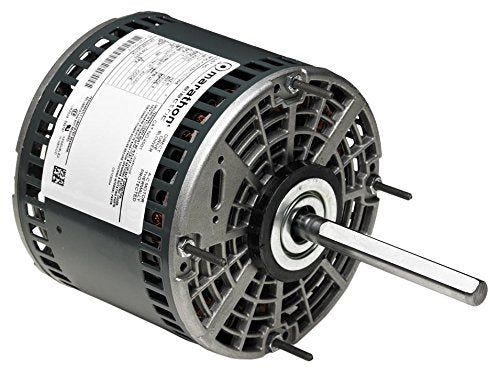

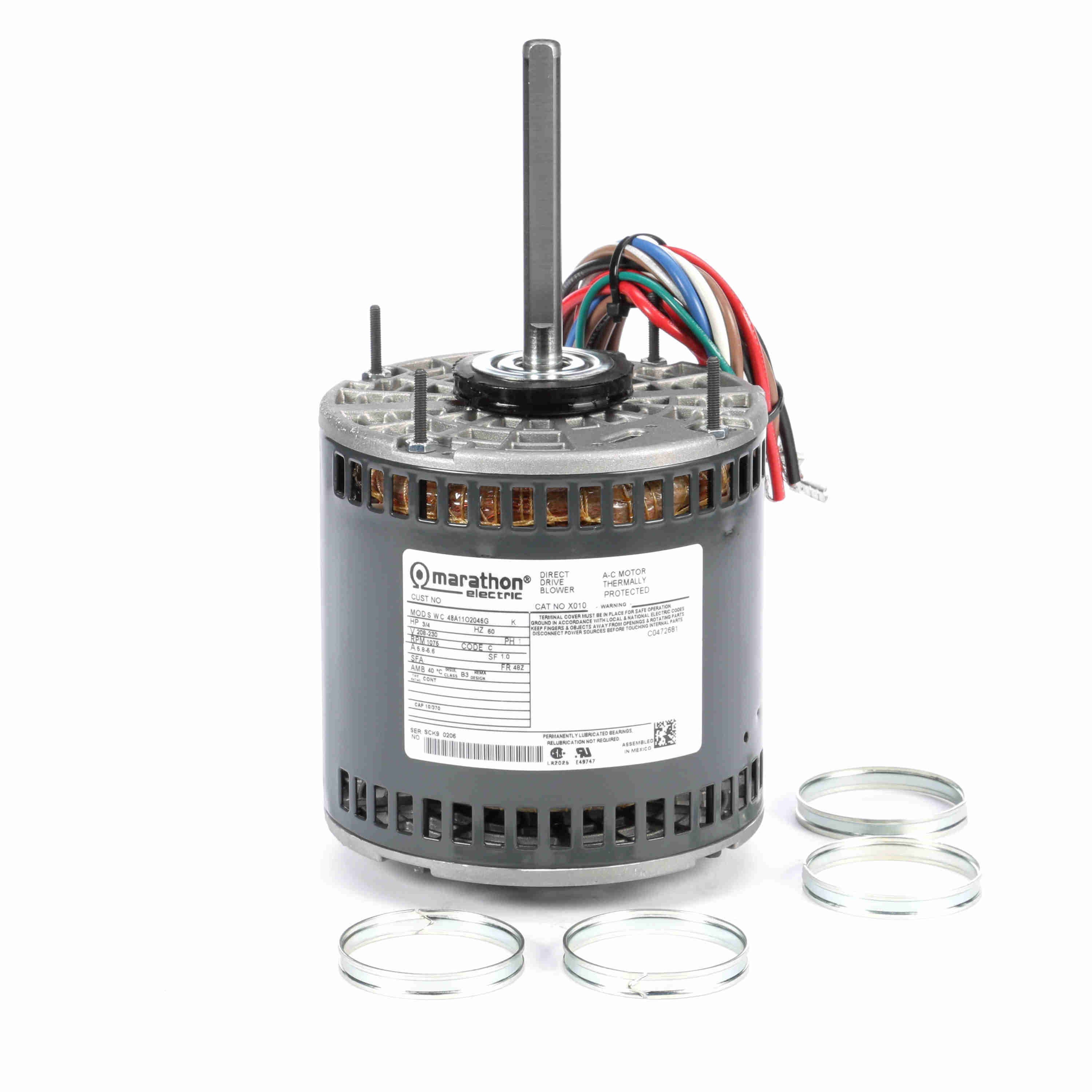

Marathon MX010 Direct Drive Motor 1 Phase Open Air Over 3/4 hp 1075 RPM 208-230 VAC 48Y Frame

Product Description

The Marathon MX010 direct drive motor is a versatile solution for HVAC applications. This 3/4 horsepower motor operates at 1075 RPM across three speeds, providing reliable performance with a permanent split capacitor. The motor is designed for open air over environments and uses thru-bolt mounting with ball bearings for smooth operation.

• 3/4 horsepower
• 1075 RPM
• 208-230 volts

Product Highlights

This motor is ideal for HVAC systems, offering durable performance with single-phase operation. The resilient ring and extended studs allow for secure mounting, while the rolled steel construction ensures durability.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MX010
• UPC: 722856038609
• Category: Permanent Magnet Motors
• Frame: 48Y

Technical Specifications

• Horsepower: 0.75 hp
• Speed: 1075 RPM
• Voltage: 208-230 VAC
• Phase: Single
• Enclosure: Open Air Over (OAO)
• Mounting: Resilient Ring / Extended Studs
• Amperage: 5.8-5.6
• Material: Rolled Steel
