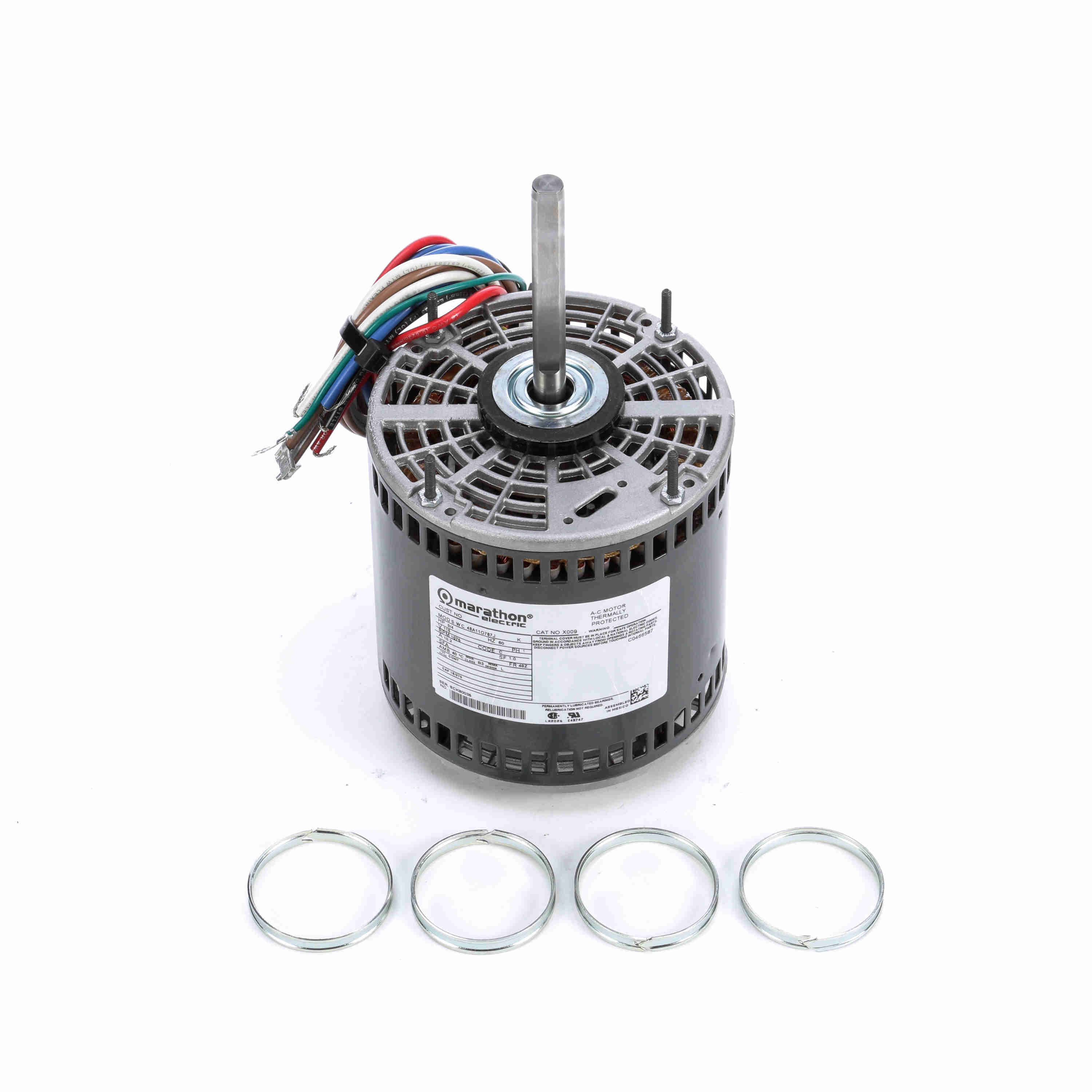

Marathon Electric MX009 Direct Drive Blower Motor 0.75 hp 48Y Frame Replacement Motor

Product Description

The Marathon Electric MX009 Direct Drive Blower Motor is a reliable choice for HVAC systems. This motor, identified by the MPN MX009, is designed for single-phase, permanent split capacitor (PSC) applications.

• 3/4 horsepower with 1075 RPM speed range
• Direct drive and thru-bolt mount
• Open air over enclosure with ball bearing

Product Highlights

This Marathon Electric blower motor is built for resilient ring and extended studs mounting. It operates on 115 volts and has an automatic overload protector. The motor is made of rolled steel and features a ball bearing shaft that measures 1/2 x 4 inches.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Brand: Marathon Electric
• Model Number: MX009
• Condition: New
• Product Link: Marathon Electric MX009 at Amazon

Technical Specifications

• Motor Type: Direct Drive, PSC
• Horsepower: 0.75 hp
• Speed: 1075 RPM
• Voltage: 115V
• Frame: 48Y
• Enclosure: Open Air Over (OAO)
• Phase: Single
• Amperage: 10.2 amps
• Shaft Dimension: 1/2 x 4 inches
• Mounting: Resilient Ring, Extended Studs
• Material: Rolled Steel
• Rotation: REV
• Overload Protection: Auto
