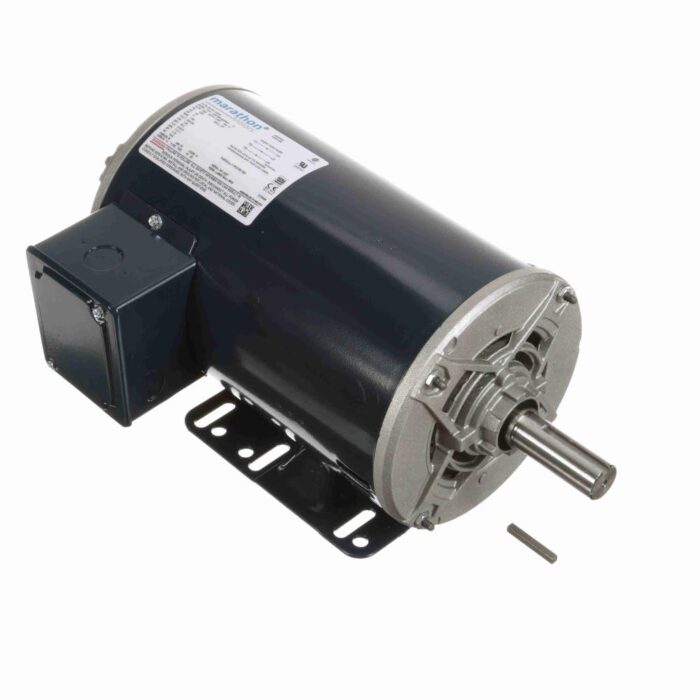

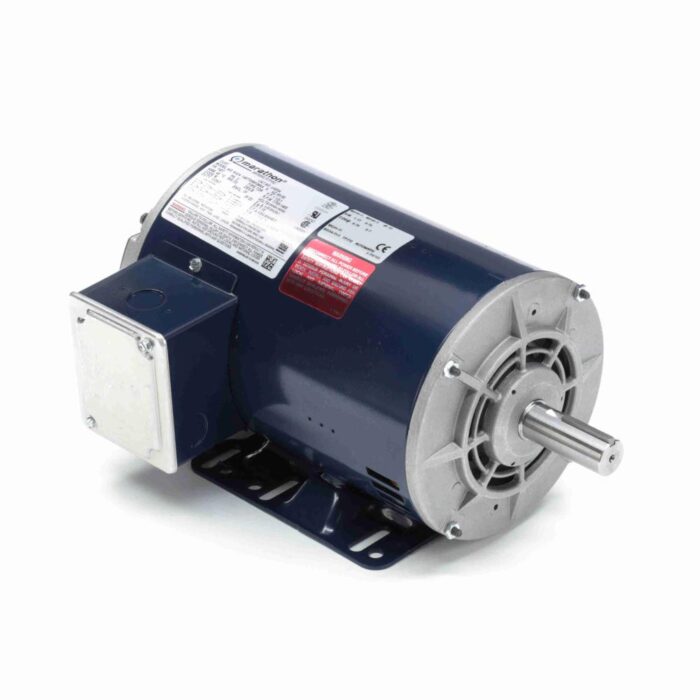

Marathon Motors MU422A Electric Motor 2 HP

Product Description

The Marathon Motors MU422A is a three-phase electric motor designed for general-purpose applications in clean, dry environments. It delivers a power output of two horsepower and operates at eighteen hundred revolutions per minute. This motor is ideal for use in compressors, pumps, conveyors, fans, and blowers, making it versatile for various machinery needs. It includes automatic overload protection for safe operation and can be used in outdoor settings when appropriately housed.

• Power output of 2 HP at 1800 RPM
• Reversible rotation capability
• Equipped with ball bearings for durability

Product Highlights

This electric motor is built with a rigid base to enhance stability and performance. The automatic overload protection feature safeguards the motor during operation, making it reliable for continuous use.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MU422A

Technical Specifications

• Power: 2 hp
• Speed: 1800 rpm
• Current: 6.6/6.6 amps
• Voltage: 200-208 volts
• Frequency: 60 Hz
• Frame: NEMA Rolled Steel 145T
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 1/4 inches
• Service Factor: 1.15
• Overload Protection: Automatic
• Base: Rigid
• Reversible: Yes
• Bearing Type: Ball Bearings
• Insulation Class: Class F
• Enclosure: ODP (Open Drip Proof)
• Material: Rolled Steel
• Number of Speeds: 1
• Load Amps: 6.7-6.6
• Phase: U422
• Type: Electrical
