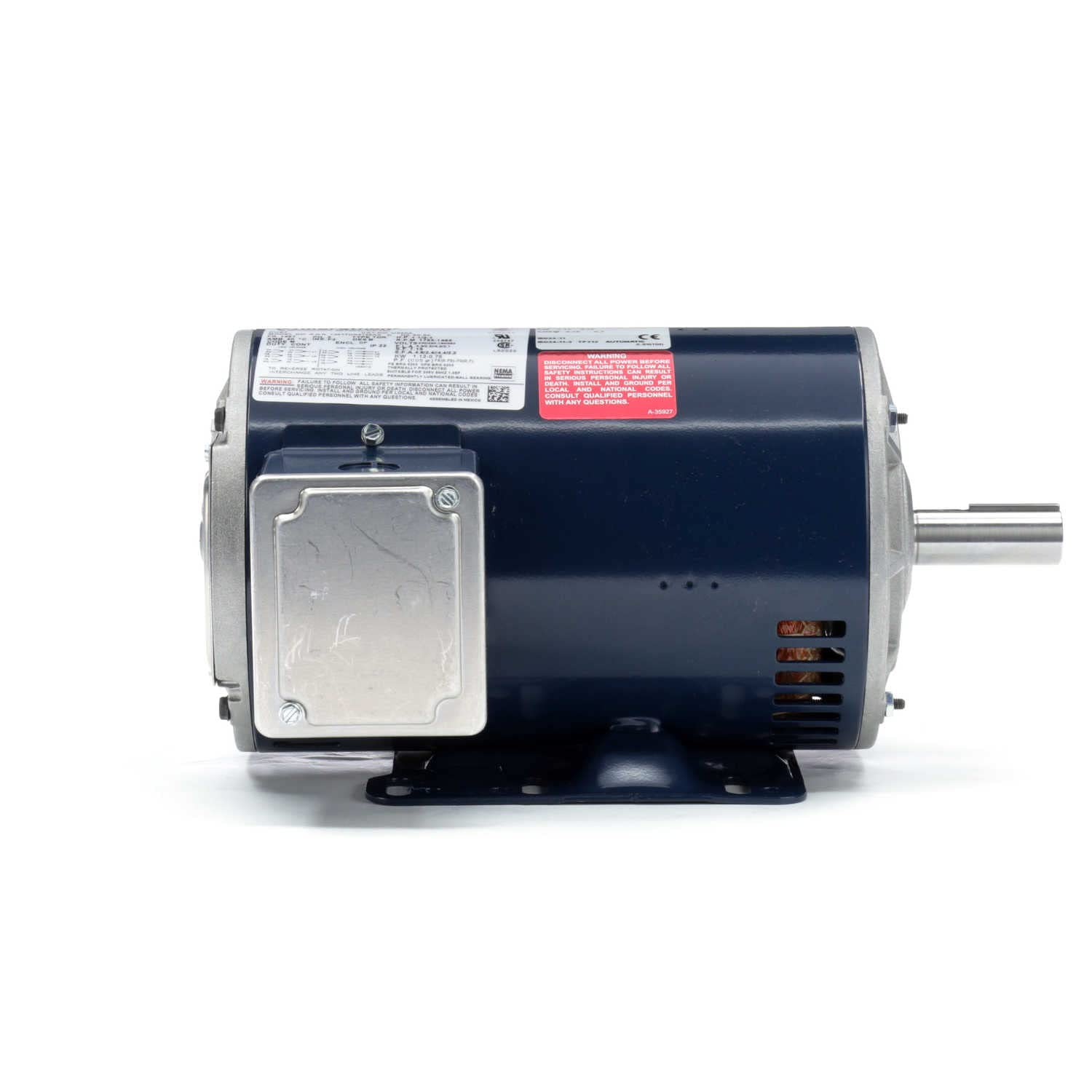

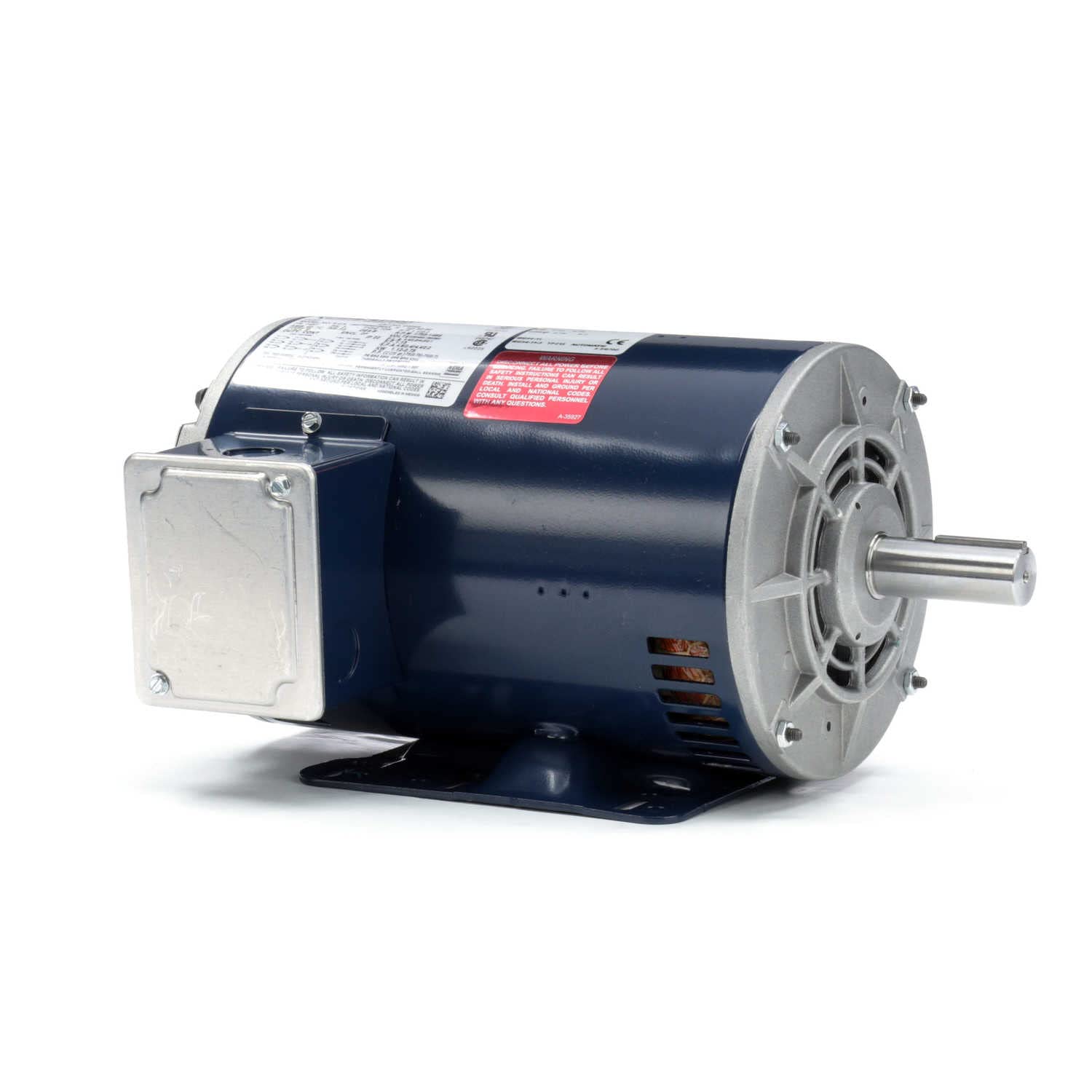

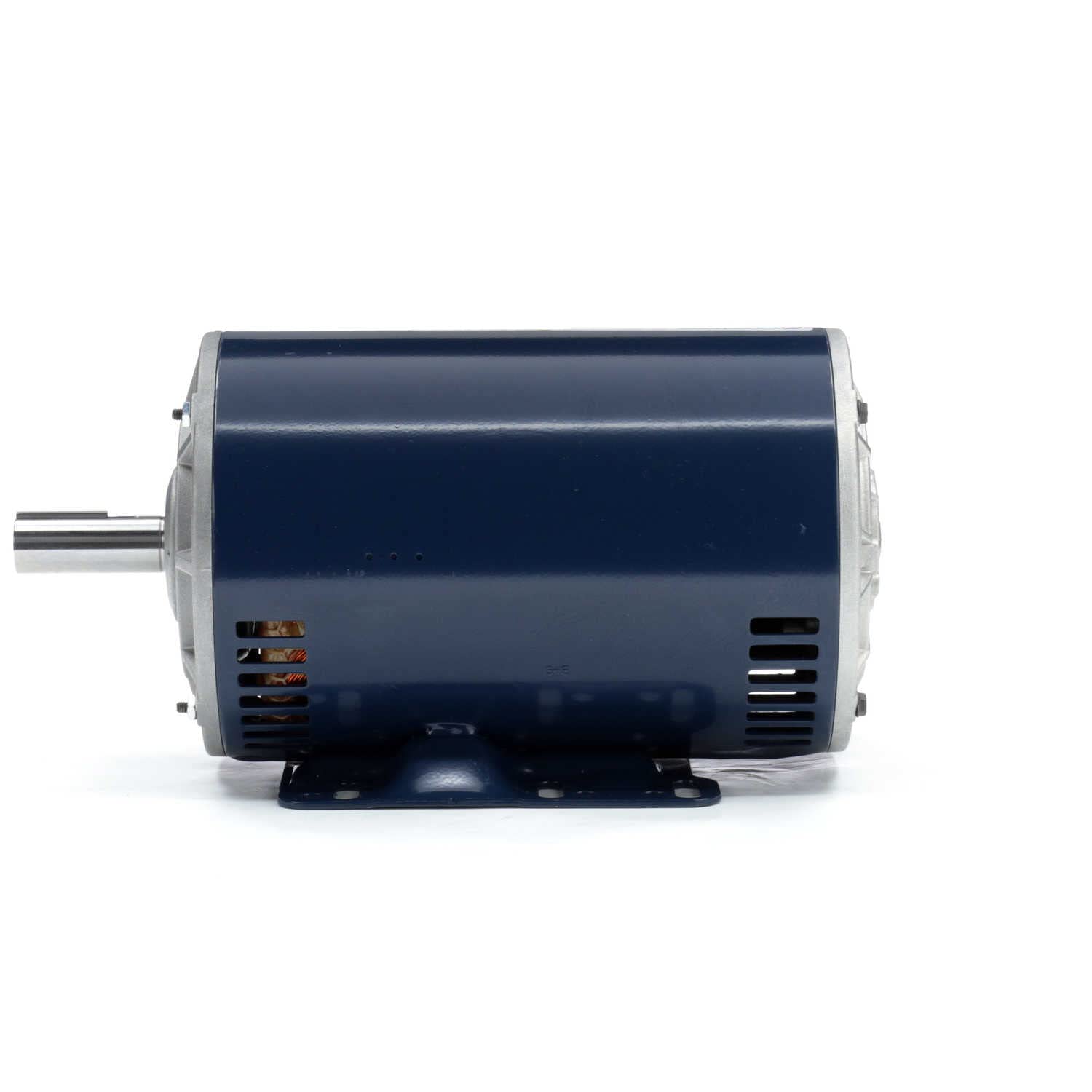

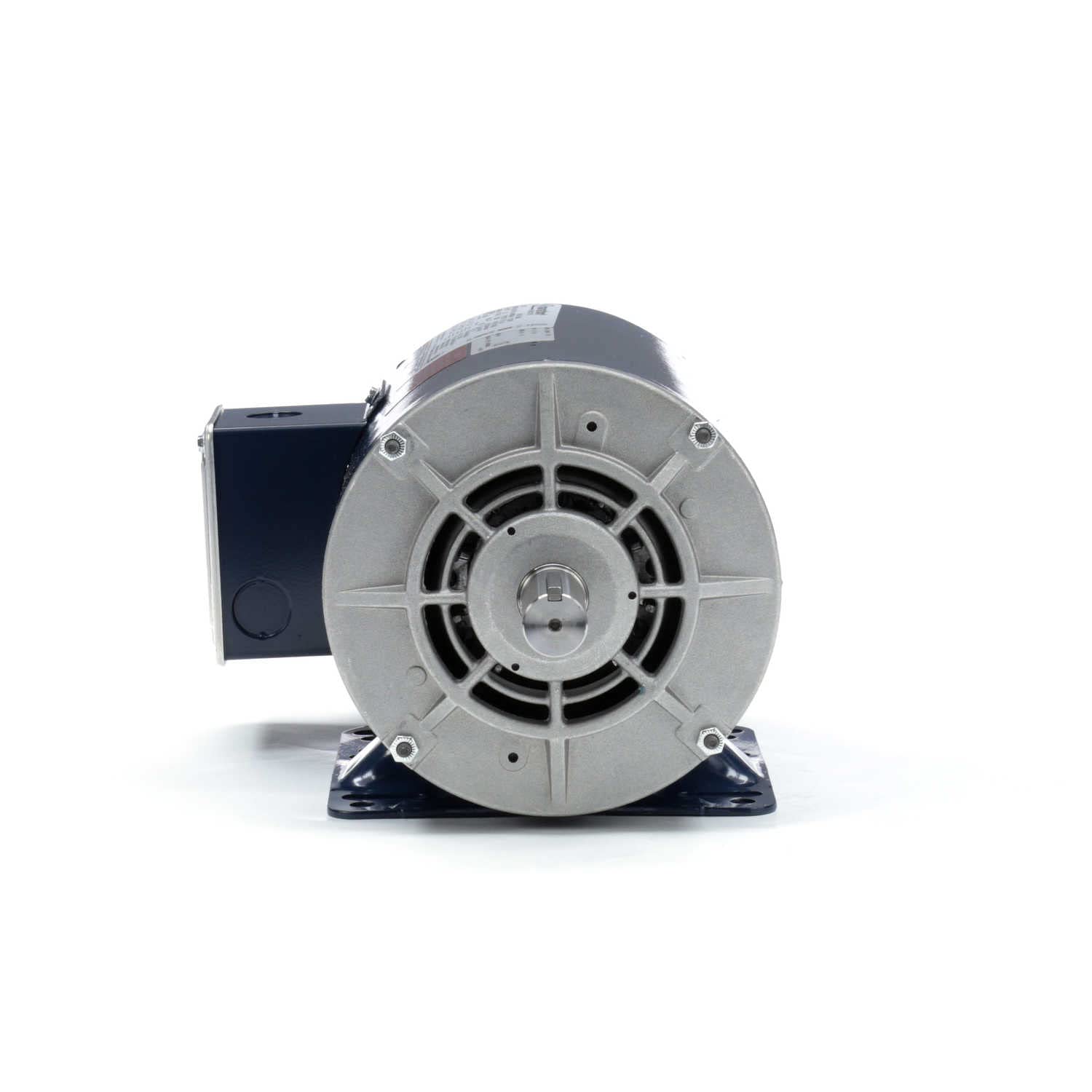

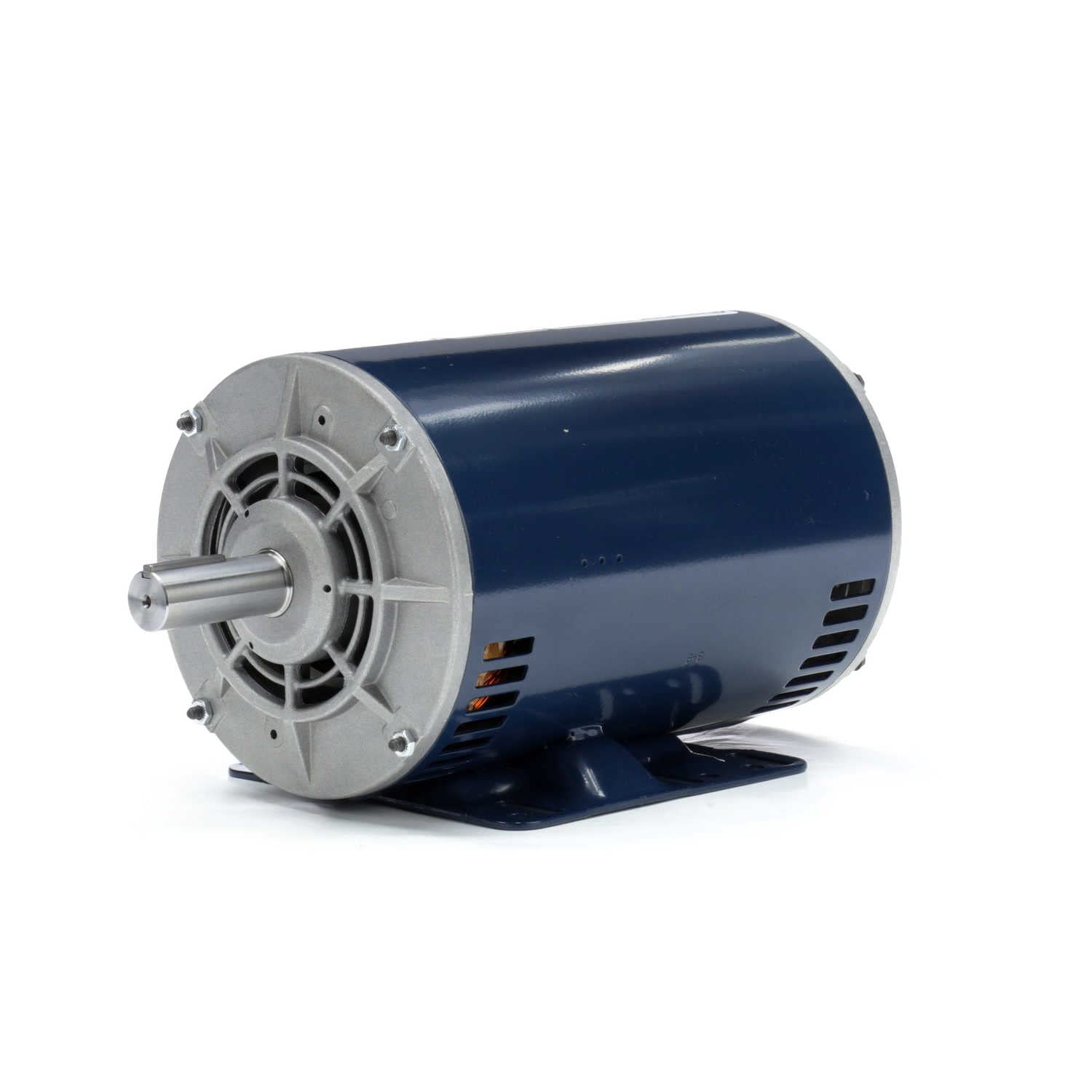

Marathon MU420A General Purpose Motor 1-1/2 hp 1800 RPM 230/460 VAC

Product Description

The Marathon U420A is a general purpose motor identified by the MPN MU420A. This motor is designed for three-phase applications, delivering one and a half horsepower with a speed of eighteen hundred RPM. It operates at both two hundred thirty and four hundred sixty volts, making it versatile for various industrial settings.

• HP: 1-1/2
• Voltage: 230/460
• Frame Size: 145T

Product Highlights

This motor features a rolled steel construction and a rigid base for stability. It includes a single shaft type and automatic overload protection. The open drip proof design helps in cooling the motor during operation.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Type: General Purpose Motor

Technical Specifications

• Electrical Type: Three Phase
• RPM: 1800
• Amperage: 4.4/2.2
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Enclosure: Open Drip Proof
• Service Factor: 1
• Shaft Type: Single
