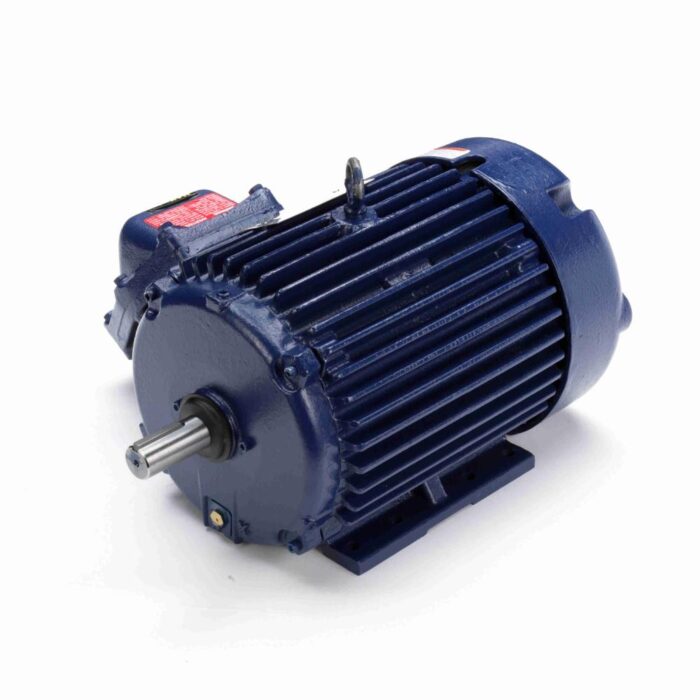

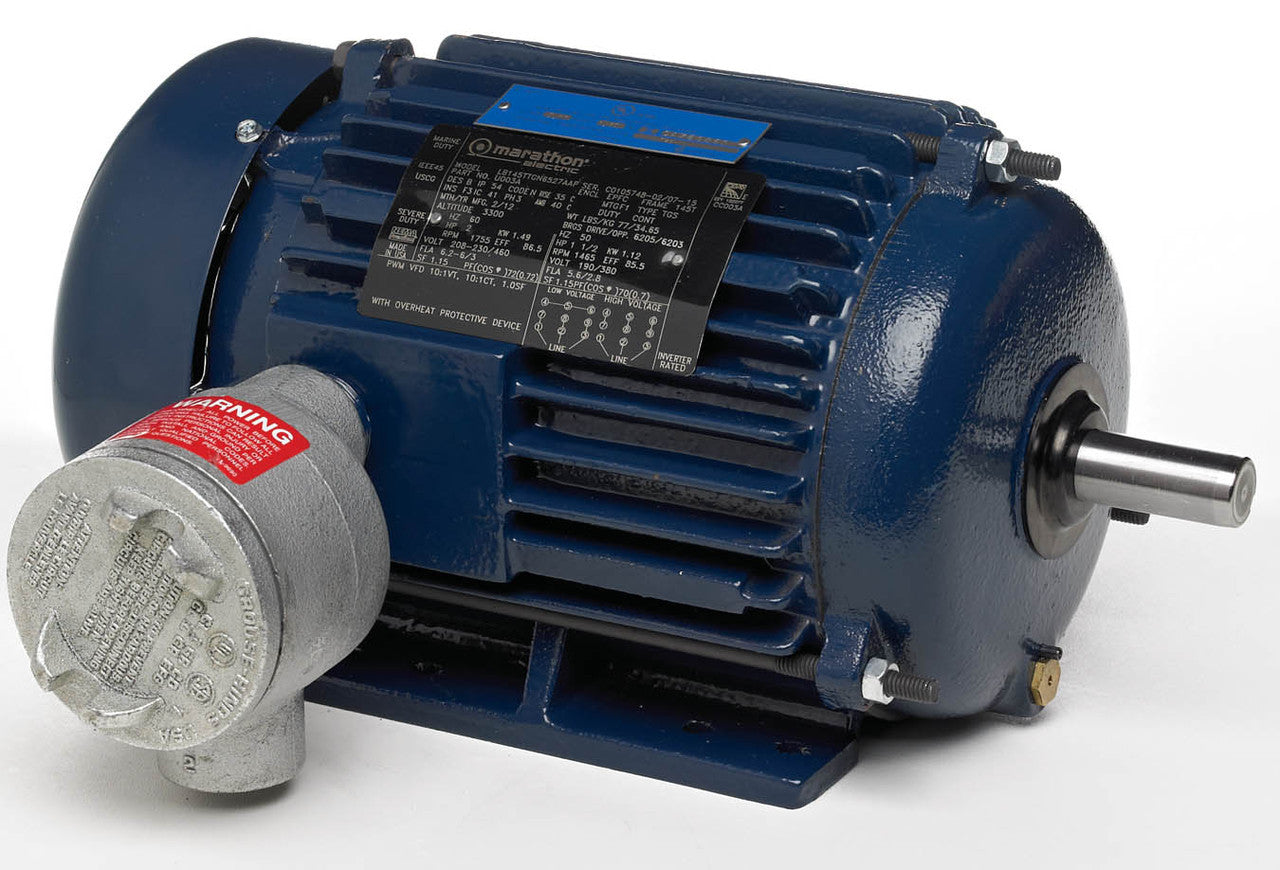

Marathon Motors MU061A Explosion Proof Motor 5 HP

MARATHON MOTORS
SKU: MU061A
Availability: In Stock

Ships via freight in 1-3 business days

$1,256.07
$1,256.07
LTL Delivery

This product weighs 146 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Marathon Motors MU061A is an explosion-proof motor ideal for Division 1 hazardous locations. This motor is suitable for Class II, Groups C, D, F, and G areas. It features NEMA Premium XRI efficiency and a TEFC (Totally Enclosed Fan Cooled) enclosure.

  • Designed for hazardous duty applications.
  • Includes Max Guard Class F insulation.
  • Constructed with a durable cast iron frame.

Product Highlights

The MU061A meets high safety standards and is built for reliability in challenging environments.

Product Information

Standard Information

  • Brand: Marathon Motors
  • MPN: MU061A
Technical Specifications
Horsepower
5 HP
RPM
3600
Voltage
208-230/460 V
Frame Size
184T
Model Number
184TTGN6501
Nominal Efficiency
88.5%
Full Load Amps
13.0-12.0/6.0
VFD Compatibility
Yes
Shaft Diameter
1 1/8 inches
Shaft Length
2 3/4 inches
Enclosure
TEFC (Totally Enclosed Fan Cooled)
Weight
146 lbs
